ALUTECH DACH ROOF SHEETS AND PANELS

ALUTECH DACH ROOF SHEETS AND PANELS

Alutech dach is a composite roofing panel composed of two metal sheet coverings connected by an insulating polyurethane layer .

INFORMATION

PRODUCTION

Made In Italy

ADVISED USE

Roofing

MINIMUM SLOPE

10% (this slope depends on the lenght of the panels. Please refer anyway to local regulations)

INSULATED WALL SANDWICH PANEL

AVAILABLE THICKNESSES

-30 mm -40 mm -50 mm -60 mm -80 mm -100 mm
-120 mm

SANDWICH PANEL TECHNICAL FEATURES

-Treadable -Insulated -Structural -Possibility Of Lateral Overlapping -Insulation with expanded polyurethane type ‘pur’ or, upon request and with specific conditions, type ‘pir'

PROCESSING

Panel cut arrangement for front overlapping. Pre-cut on lower panel sheet to facilitate insulation

T = 100, 150, 200, 250, 300 mm
L= min 2500 mm, max 13500 mm
S= 30, 40, 50, 60, 80, 100, 120 mm

ALUTECH DACH - INSULATED ROOF SANDWICH PANEL

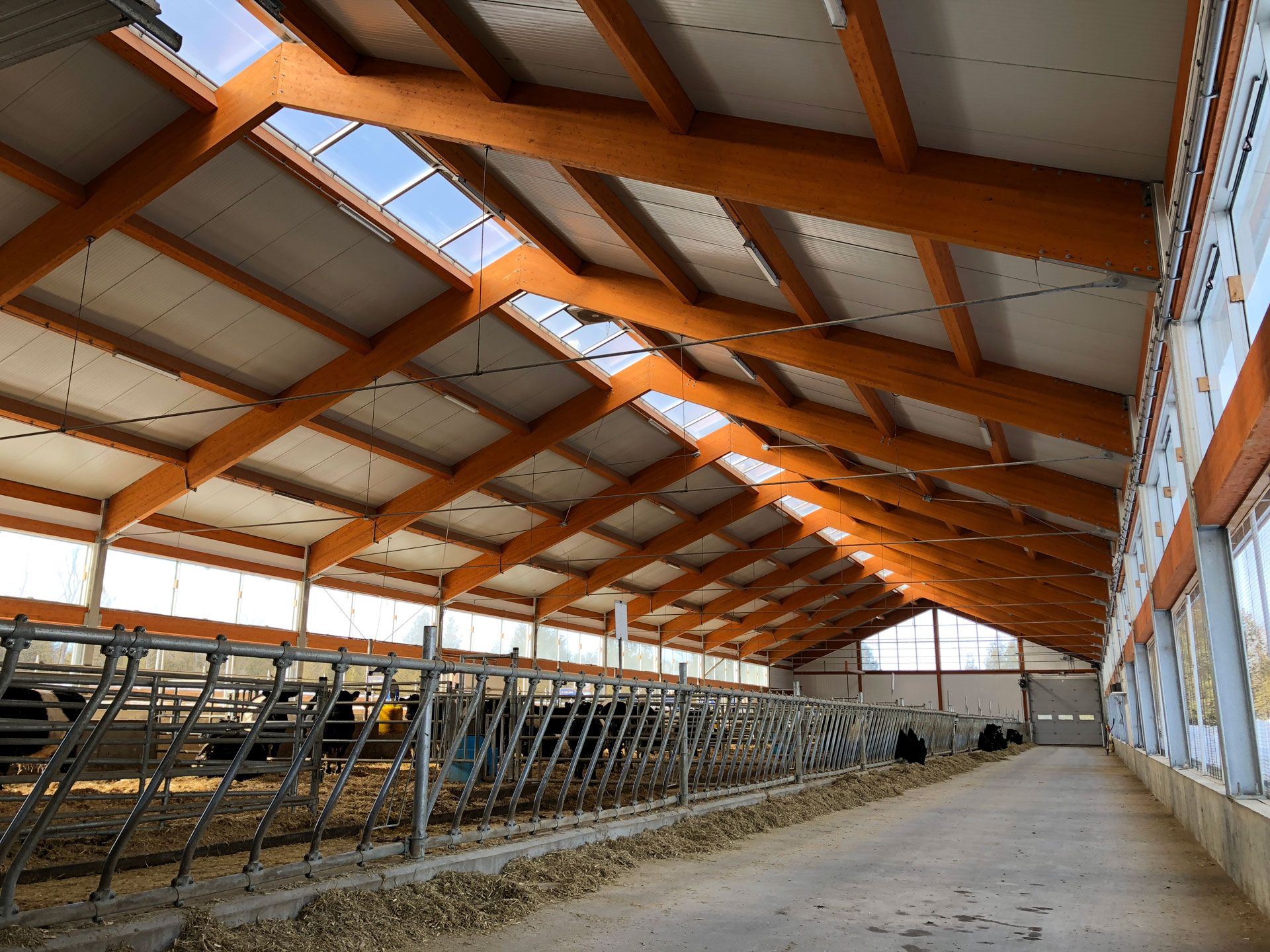

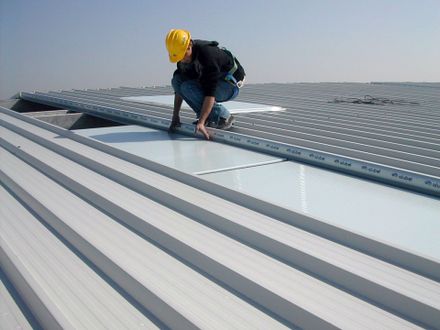

Alutech dach is a composite roofing panel composed of two metal sheet coverings connected by an insulating polyurethane layer . Panels can be installed on any type of bearing structure and in particular on metal structures. Superior sheet corrugation enhances load performances of alutech dach panels , which can be applied on big support dimensions.
