Tegolacanadese Ultimetal HD Tiles
Ultimetal HD Tiles
ULTIMETAL HD TILES
The new ULTIMETAL HD shingles are the fruit of extensive research and development to provide shingles with which we can create design and prestige roofing, high-performance products with a unique and long-lasting appearance.
What Are Its Strengths?
- New aluminium alloy sheet metal
- New type of ultra-resistant paintwork
- Highly UV-resistant
- High durability in waterproofing and visual appeal
FEATURES
EXCLUSIVE DESIGN
Exclusive DESIGN for any roof and context, thanks to the wide range of models and colors
WATERPROOFING
WATERPROOFING to ensure your roof quality and durability over time
LIGHTNESS
Lightness above your head to guarantee maximum safety, even in the event of a seismic event
RESISTANCE
Resistance to any extreme conditions, to hailstorm, to strong winds
SIMPLICITY
Simplicity they adapt to any shape and slope of the roof, easy to transport and apply… even on the construction site
INFORMATION
BRAND
Tegola Canadese
PRODUCT TYPE
Roof Tiles and Slates
REFERENCE STANDARD
EN 544
THICKNESS
4.7mm
IMPORTANT
This product does not contain asbestos and tar

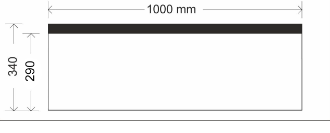

DIMENSIONS
- Length : 1000 mm
- Width : 340 mm
EXPOSED AREA
143 mm
WEIGHT
8.3 kg/m²
TILES PER PACKAGE (N°)
14
SURFACE PER PARCEL (M2)
4.06
SURFACE COATING
Ultimetal 300 micron
SET OF THE FLAPS
Self Adhesive Band
IMPORTANT
This Product Does Not Contain Asbestos And Tar
APPLICATION
Application on pitched roofs, with a slope between 5° and 85°. Installation temperature above +5°C. Always check the adhesion of the pads or of the shingle at the end of the installation.
REACTION TO FIRE
E
SURFACE COATING
Ceramic-coated basalt grit G-EVO
EXTERNAL FIRE RESISTANCE
EN 13501-5 / EN 1187
REACTION TO FIRE
EN 13501-1 / prEN ISO 11925-2
SAFETY
The material is free of asbestos, tar compounds and other dangerous substances
STORAGE
Store pallets in closed warehouses, away from heat sources and direct sunlight. Store in the original packaging. Do not stack pallets.
EXPOSED AREA
290 mm
SHINGLES PER BUNDLE
14
FOIL THICKNESS
300 mm
BUNDLE
4.06 mm
OTHER INFORMATION
The characteristics expressed refer to the standard production. Tegola Canadese reserves the right to update the technical data sheets without notice. Further information on installation available on www.tegolacanadese.com.
AVAILABLE COLOURS
-Ultimetal HD Corten
-Ultimetal HD Slate
- Ultimetal HD Verdigris
