Ceramica Rondine Cubics Tiles
CUBICS TILES
CUBICS TILES
3D stone effect porcelain stoneware

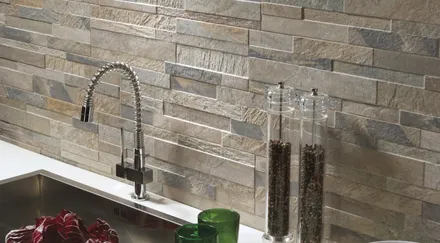

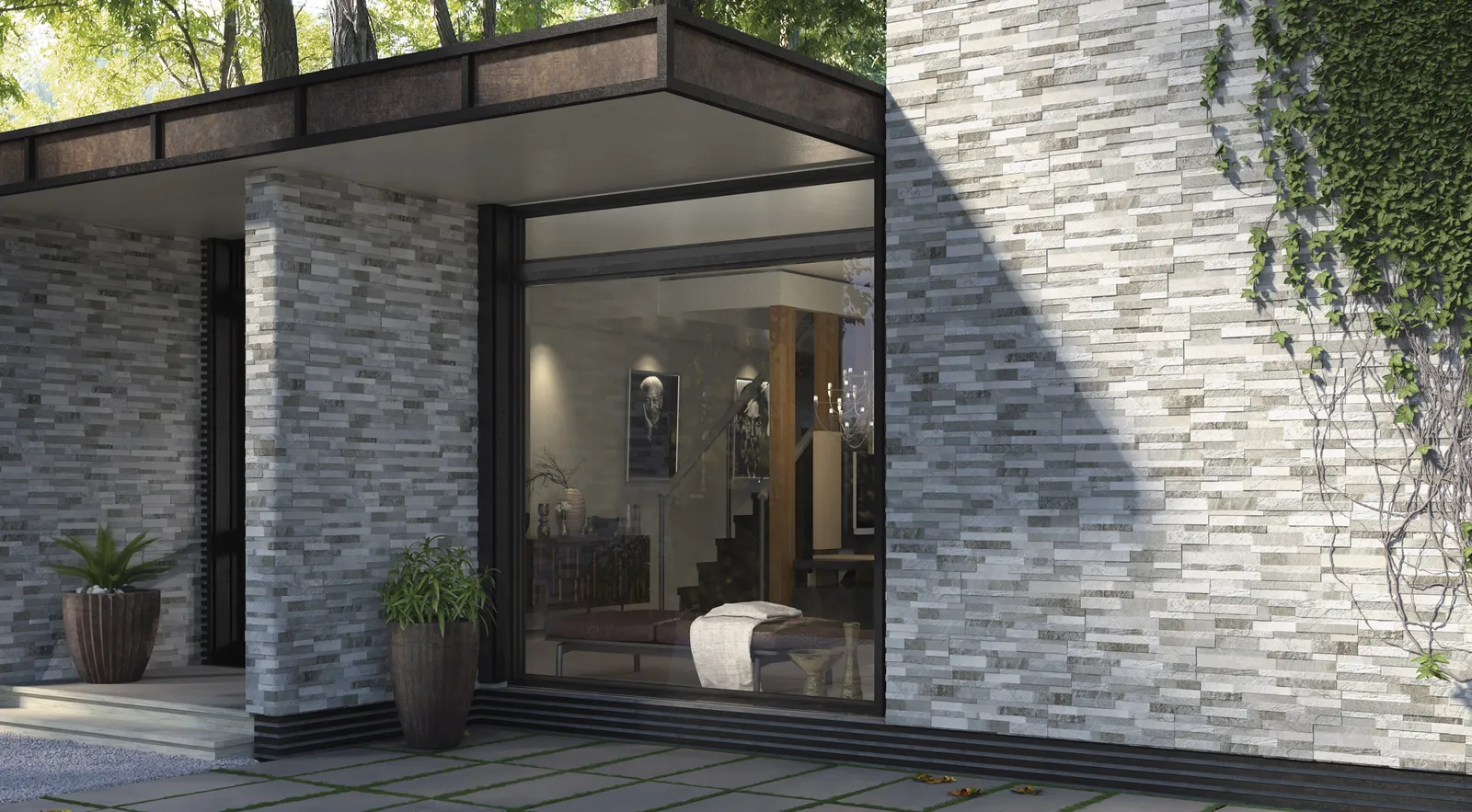

The new Cubics covering reproduces on porcelain stoneware stone cubics on three levels that create different perceptions of depth and create a rhythm on the wall with a pleasant natural effect.
Fruit of the sophisticated “tile detector” technology that allows to photograph and communicate to the digital camera the exact graphic scan to be reproduced, Cubics boasts an amazing mimic loyalty and tactile and powerful material rendering.
Evocative for the living area, original for the bathroom and the perfect mix of elegance and innovation for public spaces like spas or stores: Cubics is very versatile and can adapt to any style, need and application.
Available in size 15x61 (between 7 and 11 mm thick), Cubics is proposed in White, Grey, Beige and Multicolour and with 215 graphics created with 4 different punches.
INFORMATION
PRODUCT TYPE
Tiles
SURFACE
Natural
COLLECTION
Cubics
DOWNLOADS
↓ DOP
↓ Technical Sheet
↓ Catalogue
↓ Pictures
SIDES
Natural
USE
Wall Tiles
PRODUCTION
Made In Italy
PRODUCT GROUP
BIa-GL
FORMAT
BRAND
Ceramica Rondine
MATERIAL
Porcelain Stoneware
THICKNESS
7-11
COLOURS AND FINISHINGS
-Beige -Grey -Multicolor -White
INFUSION - TECHNICAL SPECIFICATIONS
| TECHNICAL CHARACTERISTICS | TEST METHOD | EN 14411 AND ISO 13006REQUIREMENTS | ITALCER AVERAGE VALUES |
|---|---|---|---|
| Length And Width | ISO 10545-2 | ±0.6% and ± 2.0mm Rect. : ±0.3% and ± 1.0mm | Compliant |
| Straightness Of Sides | ISO 10545-2 | ±0.5% and ± 1.5mm Rect. : ±0.3% and ± 0.8mm | Compliant |
| Rectangularity | ISO 10545-2 | ±0.5% and ± 2.0mm Rect. : ±0.3% and ± 1.5mm | Compliant |
| Flatness | ISO 10545-2 | ±0.5% and ± 2.0mm Rect. : ±0.4% and ± 1.8mm | Compliant |
| Thickness | ISO 10545-2 | ±5% and ± 0.5mm | Compliant |
| Water Absorption | ISO 10545-3 | ≤ 0.5% | <0.1% |
| Modulus Of Rupture | ISO 10545-4 | ≥ 35 N/mm2 | >40 N/mm2 |
| Breaking Strength (S) | ISO 10545-4 | ≥ 1300 N | Compliant |
| Abrasion Resistance | ISO 10545-7 | Declared Class | / |
| Linear Thermal Expansion | ISO 10545-8 | Declared Value | α ≤ 7.1x10-6 °C-1 |
| Thermal Shock Resistance | SO 10545-9 | No Alterations | Resistant |
| Frost Resistance | ISO 10545-12 | No Alterations | Resistant |
| Chemical Resistance | ISO 10545-13 | Declared Value | LA – HA |
| Household ChemicalsResistance | ISO 10545-13 | B min. | A |
| Stain Resistance | ISO 10545-14 | Class 3 min. | 5 |
| Mohs Hardness | UNI EN 101 | 5 Min. | 6 |
| Slip Resistance | DIN 51130, DIN 51097, ANSI A137.1, B.C.R.A. Rep. CEC/81, BS 7976 | Declared Value | / |
| Shade Variation | ANSI A 137.1 | Not Required | V4 |
| Fire Reaction | UNI EN 13501- | - | A1FL class |
| Thermal Conductivity | EN 12524 | Not Required | λ = 1.3 W/m·°K |
| Light And Colour Fastness | DIN 51094 | Not Required | No Variations |
