Irsap Ellipsis_h 2 Radiator
ELLIPSIS_H 2 RADIATOR
ELLIPSIS_H 2 RADIATOR
The ELLIPSIS_H 2 Horizontal towel warmer is a modern reinterpretation of decorative radiators. Functional and aesthetically appealing, it is characterized by elliptical tube elements. ELLIPSIS_H 2 Horizontal is available in 9 heights, from 4 to 30 elements and thermal powers from 218 to 3189 Watt.
information
PRODUCTION
Made in Italy
PRODUCT TYPE
Radiator
BRAND
Irsap
USE
Heating
DIMENSIONS
- Height : 240 mm
- Width : 520 mm
CERTIFICATIONS
COLLECTION
Ellipsis
THREADING
Manifold threading 1/2” gas right
THERMAL POWER
218 Watt
MATERIAL
Steel
PRESSURE
Maximum working pressure 4 bar
TUBE
Tubes made of sheet steel with a 50x25 mm elliptical section
FEATURES
- Hydraulic radiator
- Low Temperature
MANIFOLDS
Manifolds with a 30 mm diameter circular section
CALCULATE THE POWER
How to choose the Oasi radiator for your home? How to know what is the right power to heat each room? Online thermal requirement allows you to identify the most suitable radiator for your living space
TEMPERATURE
Maximum working temperature 95°c
FORMULA
Q=Qn (Δt / 50)n
STANDARD EQUIPMENT
- 1/2” blind plug
- Piper cover kit
- 1/2” air vent
- Wall fixing systems with screws and anchors
COLORS
-Quartz 1 -Beige Cream -Standard White -Ivory - RAL 1013 -Manhattan Grey -Red - RAL 3000 -Brown - RAL 8017 -Claret - RAL 3003 -Orange - RAL 2004 -Bluish Lilac - RAL 4005 -Woodland Green - RAL 6005 -Green Grass - RAL 6018 -Melon Yellow - RAL 1028 -Black - RAL 9005 -Pearl White -Edelweiss White -Sablé -Quartz 2 -Sunstone -Tobacco Brown -Flame Red -Azurite 3 -Medium Grey -Titanium Grey Metallic - RAL 9023 -Pearl Grey -Graphite Black -Hammered Grey -Satin Black -Matt White -Matt Black -Hammered Copper -Deep Blue - RAL 5004 -Agave -North Sea Blue -Ice -Matt Blue Dove - RAL 5014 -Matt Light Grey

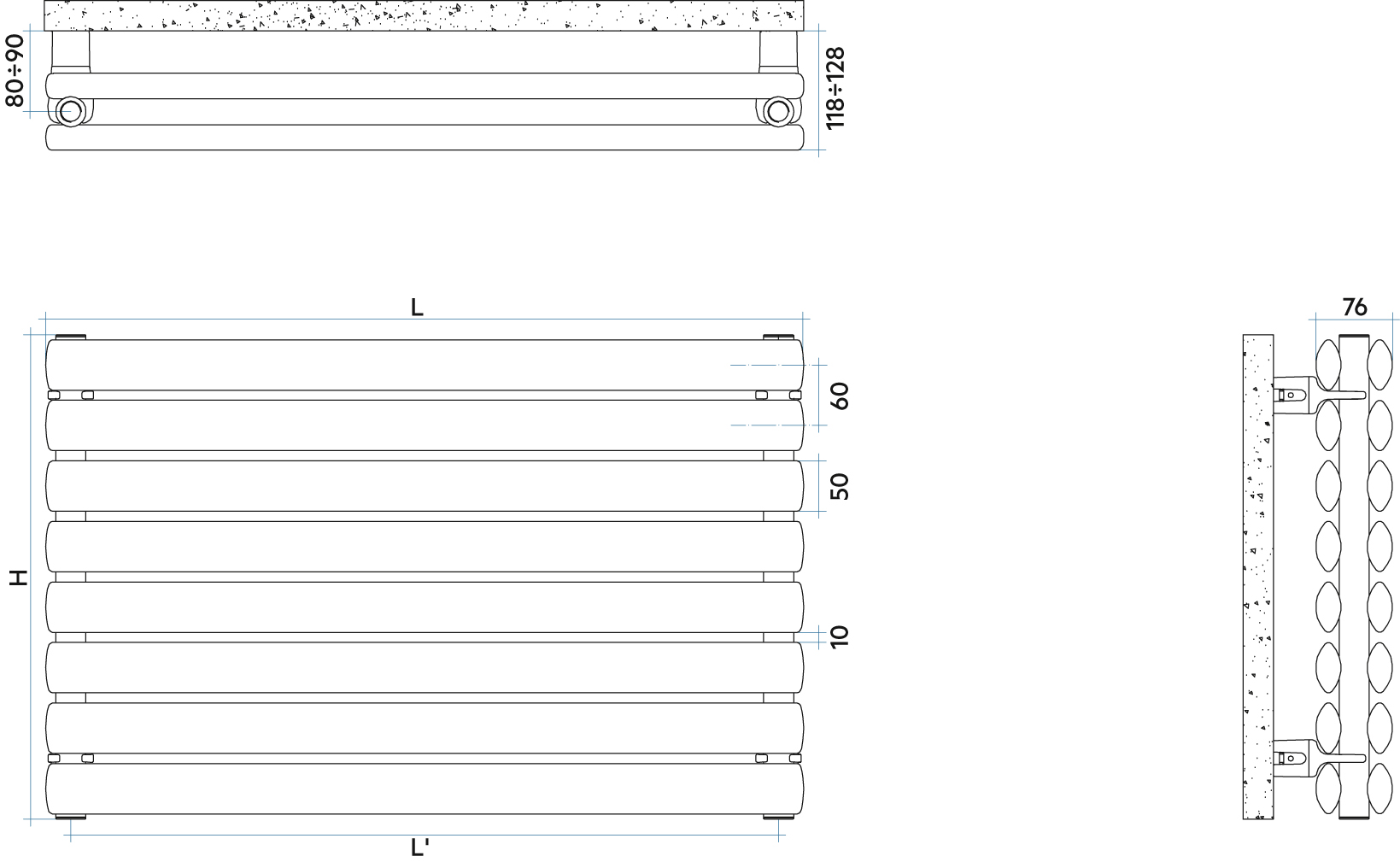

TECHNICAL DRAWING
DETAIL
TECHNICAL DATA
| MODEL | DEPTH (MM) | LENGTH (MM) | CONN. CENTRE (MM) | WEIGHT (KG) | CAPACITY (LT) |
|---|---|---|---|---|---|
| 520 | 76.0 | 520 | 470 | 1.34 | 0.94 |
| 650 | 76.0 | 650 | 600 | 1.60 | 1.16 |
| 700 | 76.0 | 700 | 650 | 1.70 | 1.25 |
| 920 | 76.0 | 920 | 870 | 2.15 | 1.62 |
| 1020 | 76.0 | 1020 | 970 | 2.35 | 1.79 |
| 1220 | 76.0 | 1220 | 1170 | 2.75 | 2.12 |
| 1520 | 76.0 | 1520 | 1470 | 3.35 | 2.63 |
| 1820 | 76.0 | 1820 | 1770 | 3.95 | 3.14 |
| 2020 | 76.0 | 2020 | 1970 | 4.35 | 3.48 |
COMPLETE BATTERY DATA
| HEIGHT (MM) | N° ELEM. | WATT | 520 | 650 | 700 | 920 | 1020 | 1220 | 1520 | 1820 | 2020 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 240 | 4 | Watt = | 218 | 273 | 294 | 386 | 428 | 512 | 638 | 764 | 848 |
| 360 | 6 | Watt = | 327 | 409 | 441 | 579 | 642 | 768 | 957 | 1146 | 1271 |
| 480 | 8 | Watt = | 436 | 545 | 587 | 771 | 855 | 1023 | 1274 | 1526 | 1693 |
| 600 | 10 | Watt = | 545 | 681 | 734 | 964 | 1069 | 1279 | 1593 | 1907 | 2117 |
| 720 | 12 | Watt = | 655 | 818 | 881 | 1158 | 1284 | 1536 | 1913 | 2291 | 2543 |
| 840 | 14 | Watt = | 764 | 955 | 1028 | 1351 | 1498 | 1792 | 2232 | 2673 | 2967 |
| 960 | 16 | Watt = | 873 | 1091 | 1175 | 1544 | 1712 | 2048 | 2551 | 3055 | - |
| 1080 | 18 | Watt = | 982 | 1227 | 1322 | 1737 | 1926 | 2304 | 2870 | - | - |
| 1200 | 20 | Watt = | 1091 | 1364 | 1469 | 1930 | 2140 | 2560 | 3189 | - | - |
| 1320 | 22 | Watt = | 1200 | 1500 | 1615 | 2123 | 2354 | 2816 | - | - | - |
| 1440 | 24 | Watt = | 1309 | 1636 | 1762 | 2316 | 2568 | 3072 | - | - | - |
| 1560 | 26 | Watt = | 1418 | 1773 | 1909 | 2509 | 2782 | - | - | - | - |
| 1680 | 28 | Watt = | 1527 | 1909 | 2056 | 2702 | 2996 | - | - | - | - |
| 1800 | 30 | Watt = | 1636 | 2046 | 2203 | 2895 | - | - | - | - | - |
