Condor Circular Pillar Formwork
CIRCULAR PILLAR FORMWORK
CIRCULAR PILLAR FORMWORK

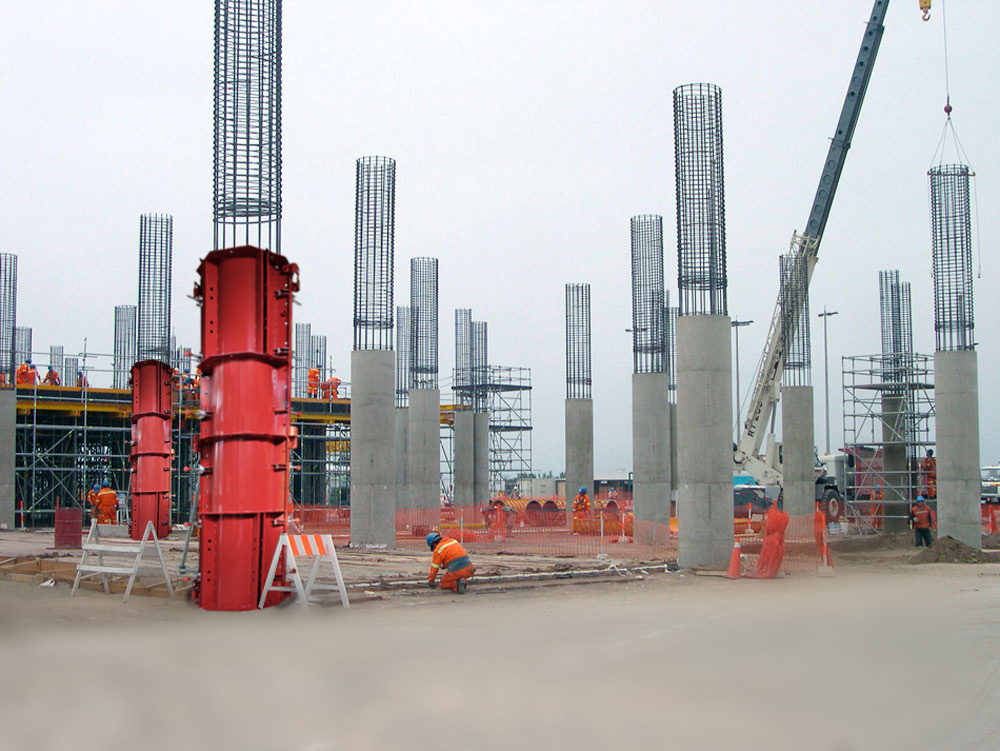

The steel formwork for casting round column cross-section.
INFORMATION
MODULE

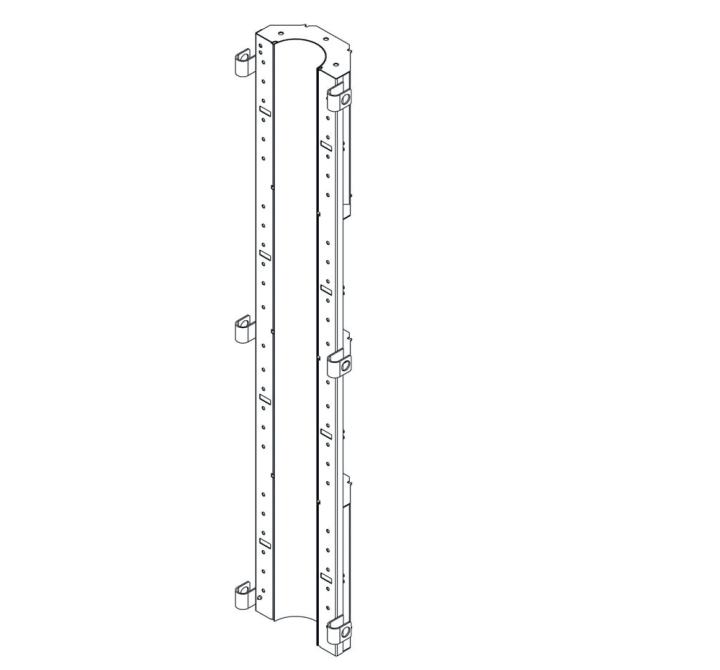

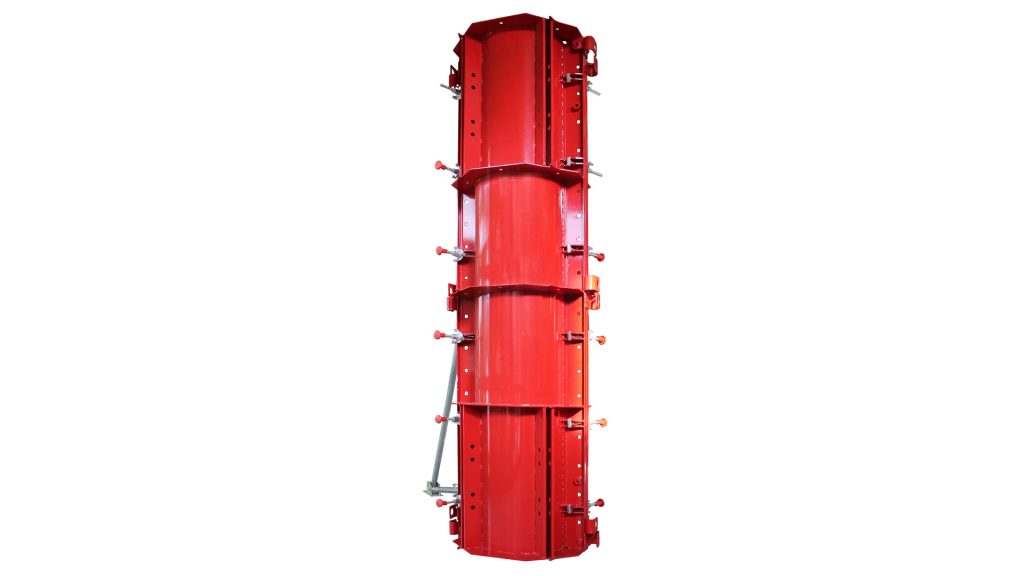

The FFC column system is made up of 2 semi-circular modules manufactured with reinforced and calendered steel sheet.
BRAND
Condor
PRODUCT TYPE
Formwork
COLLECTION
Circular
PRODUCTION
Made in Italy
MATERIAL
Steel
CASTING PRESSURE
150 kN/m2
SIZES
- Height : 50/ 100/ 300 cm
- Diameter : 90/ 85/ 80/ 75/ 70/ 65/ 60/ 55/ 50/ 45/ 40/ 35/ 30/ 25 cm
SYSTEM
The system is compatible with all CONDOR wall formworks and includes a service platform and a connectable safety parapet which reduces operating time, thus ensures safe working phases.
COLUMN
Round
FINISHING
Fair-faced
FEATURES
-Excellent fair-faced concrete finishing -Easy and quick assembly with pins & wing nut. -The system is made up of two half-columns that are separately handled
DOWNLOADS
↓ Data sheet
↓ Catalog
DETAIL
It is available with 25 to 120cm diameters and 50, 100 and 300 cm high modules which can be easily overlapped. It is designed especially for a high number of uses, thanks to its strength provided by external reinforces, allowing 150 kN/sqm casting pressures. The hermetic closure of joints ensures a fair-faced finishing of the concrete.
