COMAX FORMWORK
Thanks to wide surface panels and a small number of accessories, the COMAX formwork system is the ideal solution for facilitating and accelerating formwork shuttering operations and is able to reach high casting pressures.

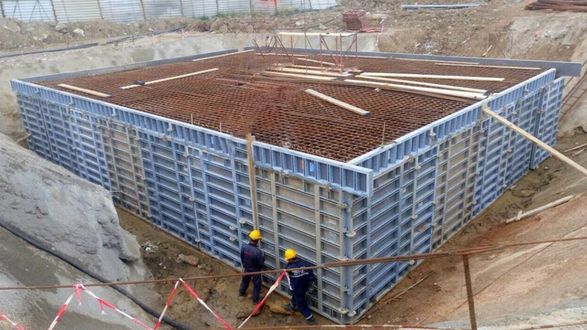

The COMAX formwork system is perfectly suitable for building any type of vertical concrete structures on site.
INFORMATION
SIZE
High productivity of large size panel (240x300cm);
BRAND
Condor
PRODUCT TYPE
Wall Formwork
PROFILE THICKNESS
- Height= 120mm
- Thickness= 60mm
- Weight= 5.39Kg/m
MAXIMUM CASTING PRESSURE: 80KN/M2
Fresh concrete casting pressure according to DIN 18218 complying with the flatness tolerances according to DIN 18202 (table 3 line 7)
PANELS
Modularity of panels which can be used either vertically or horizontally;
FLATNESS TOLERANCE
According to DIN 18202 (table 3 line 7).
USED
Panels can also be used for inclined walls;
CONCRETE
Possibility of casting with “Self-Compacting Concrete (SCC)”;
PANELS SIZE(STANDARD PANELS)
-Width :240/120/100/75/60/50/40/30/20cm)
- Height :330*/300/270*/150/75(cm)
PANELS SIZE(STANDARD PANELS)
- Width: 120/90(cm)
- Height : 300/150/75(cm)
LIFTING HOOK
Cod. 11571 Maximum load capacity 1500 Kg.
AVAILABILITY
Availability of undersized panels and compensation elements;
PLYWOOD THICKNESS
-Thickness= 18mm – 12,6 Kg/sq.m.
-Multilayer Finnish panel with a 220/220 g/sq.m. phenolic coating.
DOWNLOADS
↓ Data sheet haliform
↓ Catalog
TIE RODS
DW15 and DW20 - n.2 tie rods.
STEEL TYPE
-Internal steel profiles S 235-JR
-External steel profile S 355-MC (high yeld strenght steel for cold forming according to EN10149-92).
LONGLIFE PLYWOOD
-Thickness= 18mm – 15,0 Kg/sq.m.
-Birch plywood panel with woodplastic composite (polyolefin) coating.
SERVICE BRACKETS
- Brackets 75cm:
-Working load: 150Kg/sq.m. for centre
-Distance: 1.50m
THE SYSTEM
-COMAX framed steel formwork is available in both painted (powder coating) and galvanized version, in 5 different heights and 9 widths, minimizing accessories and compensations. Indeed, the system requires only 2 tie-rods and all the panels have horizontal elements with drilling holes every 5 cm.
-This allows the use of any standard panel as universal jolly panel and to avoid wood compensation. It’s possible to drill the surface and add a protection bush, which can be closed after with a simple cap like a normal jolly or column panel. The 12 cm frame and the technological characteristics of the profiles guarantee an acceptable casting pressure equal to 80 kN/sqm.
-The possibility of having plywood overlayd with plastic coating provides the system with high quality, durability and versatility and significantly expand the application fields to both small and big construction sites.
