Geberit Mapress Stainless Steel Pipes
GEBERIT MAPRESS STAINLESS STEEL PIPE
GEBERIT MAPRESS STAINLESS STEEL PIPE
Glossy Finish For High Requirements
FEATURES
PRESSING JAW GUIDE FOR SAFETY
The defined jaw guide on the Geberit Mapress Stainless Steel fitting ensures that the pressing jaw is positioned in exactly the right position. It also prevents any risk of the joint slipping or being pressed in the wrong place. This prevents failed pressing sequences and ensures reliable and durable connections.
FAST VISUAL CHECK
The blue colour of the pressing indicator on the fitting enables clear identification of the material. In addition, a print on the pipe end facilitates the identification of the dimensioning. The pressing indicator can be simply removed manually after the correct pressing operation.

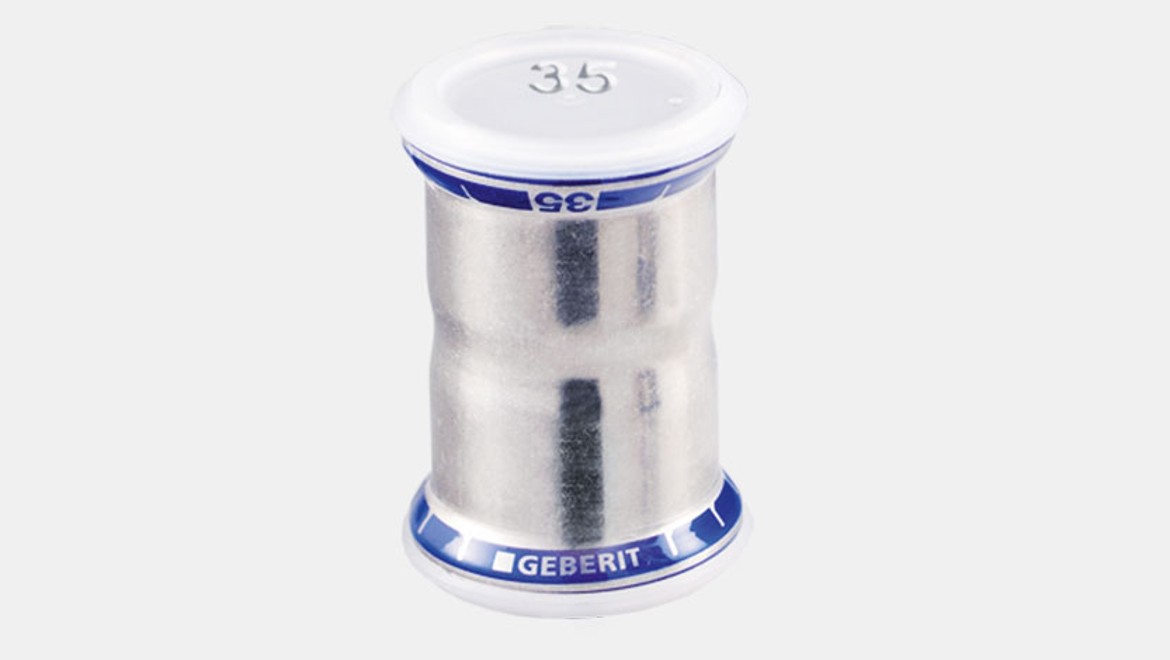

PROTECTION AGAINST DUST AND DIRT
The Geberit Mapress Stainless Steel sockets are sealed with a plug that protects the sockets at the building site from dust and dirt. The colour of the protection plug also identifies the application.
DETECTING UNPRESSED FITTINGS
The Geberit Mapress seal ring provides the pressing indicator with additional safety. Due to its special contours, unpressed connections leak during the pressure test. This recognition feature prevents harm later during operation.
COMPACT DESIGN
Thanks to the compact geometry of the Geberit Mapress Stainless Steel fittings, they require less space and therefore tighter fitting combinations are possible. Furthermore, Geberit offers numerous fittings that are coordinated with a wide range of applications.
WIDE RANGE OF APPLICATIONS
The coordinated components lend the system a high load bearing capacity. Operating pressures of 2.5 MPa (25 bar) and more are possible. Due to the high level of mechanical strength, a wide range of applications is possible which extends far beyond the usual domestic installations.
THERMALLY PERFECT WELD SEAM EXECUTION
A clean weld seam on the contact surface of the seal ring contributes to ensuring the system's permanent tightness and to cutting susceptibility to corrosion. The weld seam processing has to meet Geberit's stringent quality demands. A special thermal treatment ensures a homogenous material structure and thereby an optimum pressing operation.
MATERIAL SURFACE
The extremely smooth surface is a prerequisite for added system safety and long-term tightness. The weld seams are smoothed by a mechanical finishing treatment for optimum flow behaviour and a perfectly positioned seal ring. The roughness values are therefore well below the limits set out in standards and guarantee the tightness of the system.
FOR PERMANENT FIXTURE AND A HIGH LEVEL OF SAFETY
During the pressing procedure, the seal ring is given a pre-defined shape by the pressing jaw of the Geberit Mapress pressing tools. During this process the ring absorbs additional energy for permanent and reliable tightness.
PIPES WITH A HOMOGENEOUS MATERIAL STRUCTURE
A special thermal treatment creates a homogeneous material structure in the weld seams. The seams are also smoothed mechanically. This results in the pipes and fittings behaving uniformly during the pressing operation.
HIGH MATERIAL AND SYSTEM SAFETY
The optimum composition of the alloy components results in a high degree of material and system safety. Our extensive works standard, which goes beyond the required standards, is the reason for this safety: the Geberit Mapress Stainless Steel system pipes and fittings have a molybdenum content of at least 2.3%.
INFORMATION
COLLECTION
Mapress
MATERIAL
Stainless Steel
BRAND
Geberit
PRODUCT TYPE
Piping Systems for Water Supply
APPLICATIONS
- Potable water
- Heating
- Gas
- Sprinklers
- Industry
GEBERIT MAPRESS STAINLESS STEEL PRESSFITTINGS
- CrNiMo stainless steel 1.4401
- Pressing indicator to test if the fittings are pressed correctly
- Blue pressing indicator indicates stainless steel
- Dimension printed on the pressing indicator
- Protection plug prevents fittings from becoming dirty
- Non-pressed connections are leaky and immediately identifiable during a pressure test
- More than 500 different fittings are available
PRESSING JAWS
DN < 35 mm
FINISH
Glossy
THE ALL-ROUNDER
Geberit Mapress Stainless Steel is a highly effective supply system and can be used for diverse mediums. Geberit places the highest requirements during manufacture. The high molybdenum content, as an example, ensures a particularly high corrosion resistance. The result is plain to see – a million times over.
SYSTEM PIPES
- An increased molybdenum content ensures stability and the highest level of protection against corrosion.
- Special thermal and mechanical treatment of the fittings creates a homogeneous, high-quality material structure.
- The effective treatment ensures both optimum formability and also the necessary long-term tightness.
- Smooth surfaces ensure a perfect fit of the seal ring and optimum hygienic properties.
DIMENSIONS
| NOMINAL WIDTH DN | DIMENSION D X S (MM) |
|---|---|
| 10 | 12.0 x 1.0 |
| 12 | 15.0 x 1.0 |
| 15 | 18.0 x 1.0 |
| 20 | 22.0 x 1.2 |
| 25 | 28.0 x 1.2 |
| 32 | 35.0 x 1.5 |
| 40 | 42.0 x 1.5 |
| 50 | 54.0 x 1.5 |
| 65 | 76.1 x 2.0 |
| 80 | 88.9 x 2.0 |
| 100 | 108.0 x 2.0 |
DETAIL
GEBERIT MAPRESS SEAL RING HNBR YELLOW
- Natural gases
- Liquefied gases
- Biogases
GEBERIT MAPRESS SEAL RING FKM WHITE
Saturated steam ≤ 155 °C (also operated cyclically)
GEBERIT MAPRESS SEAL RING FPM RED
- Extinguishing water (wet/dry, dry)
- Sprinklers (wet/dry, dry)
GEBERIT MAPRESS SEAL RING FKM BLUE
- Liquid Media : Remote network heating water ≤ 140 °C, Thermal medium (solar), Mineral oils , Fuels, Chemicals and technical liquids
- Gaseous Media : Compressed air (oil purity class 0–X), Industrial gases

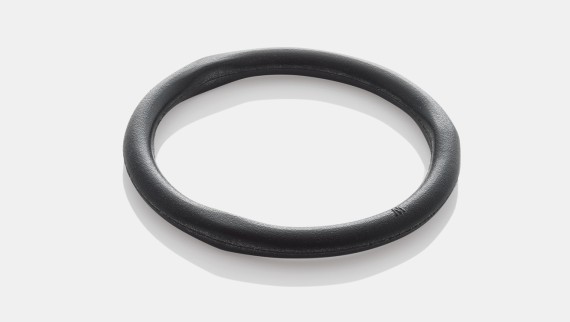

GEBERIT MAPRESS SEAL RING CIIR, BLACK
- Gaseous Media : Compressed air (oil purity class 0–3), Negative pressure, Inert gases, Industrial gases
- Liquid Media : Hot and cold drinking water, Heating water, Cooling water without antifreeze agent, Cooling water with antifreeze agent, Remote network heating water ≤ 120 °C , Saturated steam ≤ 120 °C, Service water, Ultrapure water (except pharmaceutical water), Rainwater with a pH value > 6.0, Grey and black water with pH value > 6.0, Extinguishing water (wet), Sprinkler (wet), Chemicals and technical liquids
INSTALLATIONS
The Geberit Mapress Stainless Steel pressfittings which are suitable for gas installations are equipped with a yellow seal ring made of HNBR. They can be distinguished from other fittings through their yellow marking and yellow protection plug.
