WINTER GAZEBO
WINTER GAZEBO
The Winter gazebo is a simple, sturdy and multipurpose structure. It can be set up in a variety of configurations to meet any kind of request. Assembly is quick and easy.

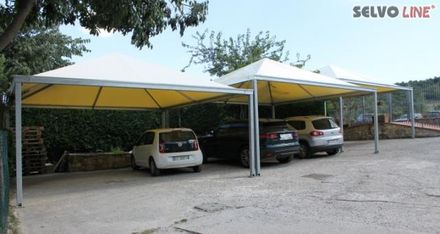

This gazebo can be set up on the ground and plugged into pillars afterwards. Winter gazebos can be linked together (each one is supplied with its own tarpaulin) to form a single structure.
Rainwater can be conveyed into the perimeter pillars by adjusting the central pillar height of this new structure during assembly. Thanks to 30-cm telescopic pillars, the Winter gazebo can be installed on uneven ground, too.
INFORMATION
BRAND
Selvoline
COLLECTION
Winter
USE
For summer use only
PRODUCTION
Made in Italy
ROOF TYPES
- Tunnel
- Shed
- Reinforced Shed RooF
THICKNESS
-4 telescopic pillars made of 100 x 100 mm, high thickness steel square tube.-Standard roof (version A): pyramid hip roof made of 8 round tubes (Ø 60 mm - thickness: 3 mm).
STRUCTURE
Hot-dip galvanized structure, which can be disassembled. Technical drawings and assembly diagrams.
PILLAR HEIGHT
-2.20 m -3.00 m
CLASS
2 Flameproof
AIR VENTS
Ø 57 cm
GALVANIZED
Steel Square Air Vent
GROUND FIXING SYSTEMS
-screw anchors (1.2 x 15 cm) inserted into a floor reinforced with electro-welded mesh or foundation plinths -Ballasts: concrete, earth-filled flower boxes or reinforced concrete cubes -Pile shoes stuck in the ground (available lengths: 70, 80, 105, 120, 150 cm). Pile shoe length must be chosen according to ground consistency (2 pile shoes for each pillar).
DOWNLOADS
↓ 0753A - Winter Gazebo
↓ RGL Gazebo mod. 2014
↓ LIBELLULA gazebo
↓ARTISTICO gazebo
↓TRUSS gazebo
↓ 0751A - Winter gazebos (size: 5x4m each) linked together
↓ 0752A - Winter gazebos (6x6 m each) with reinforced shed roof linked together
POLYCARBONATE
Cover And Side Panels
TECHNICAL REPORT
Load Capacity Data
ACCESSORIES & OPTIONS
- Straight / scallop / castellated / swallowtail pelmet.
- Polyester powder anti-peel painting in addition to hot-dip galvanization.
- Flameproof PVC sliding side tarpaulins fitted with tracks, hooks for sliding of tarpaulins, trolleys, zips and eyelets.
- Electric fan for smoke, bad smell and hot air suction. • Concrete ballasts / steel pile shoes.
- The central pillar (see figures C or D) can be removed and replaced with a beam fixed to the side pillars.
- Flameproof PVC sliding side tarpaulins fitted with tracks, hooks for sliding of tarpaulins, trolleys, zips and eyelets.
- Electric fan for smoke, bad smell and hot air suction. • Concrete ballasts / steel pile shoes.
