RABEL 14010 SHADING SYSTEM
RABEL 14010 SHADING SYSTEM
Kinetic Façade Horizontal Hinged Shading System
Rabel 14010 is a kinetic facade hinged shading system moving in the horizontal axis.
The sashes can be operated electrically or manually. The system can accommodate single and double sash constructions.
The sash width can be 1.2 meters and its height up to 5 meters thus making it possible to cover the building slaps.
INFORMATION
PRODUCTION
Made in Cyprus
PRODUCT TYPE
Shading System
BRAND
Rabel
SASH WEIGHT
200 Kg
CONTROL
The control can be via a wall mounted switch or a remote control in single or group mode.
INSTALLATION
Having a track depth of only 60mm and an installation depth of 150mm makes it the ideal choice for use in tight spaces. For the system to function a top box is not required. As a result, the shading can be fitted on existing openings as well as make use of the whole opening from slap to slap. The side tracks have been minimized to 18.5mm in height thus maximizing the internal view angle.
MOTOR CURRENT
1.5-3 A
INSTALLATION DEPTH
150 mm
PARKING SPACE
225 mm per sash
SASH PROFILE DEPTH
60 mm
CLADDING SPACE
4 / 10 mm
SASH PROFILE VISIBLE WIDTH
11.5-28 mm

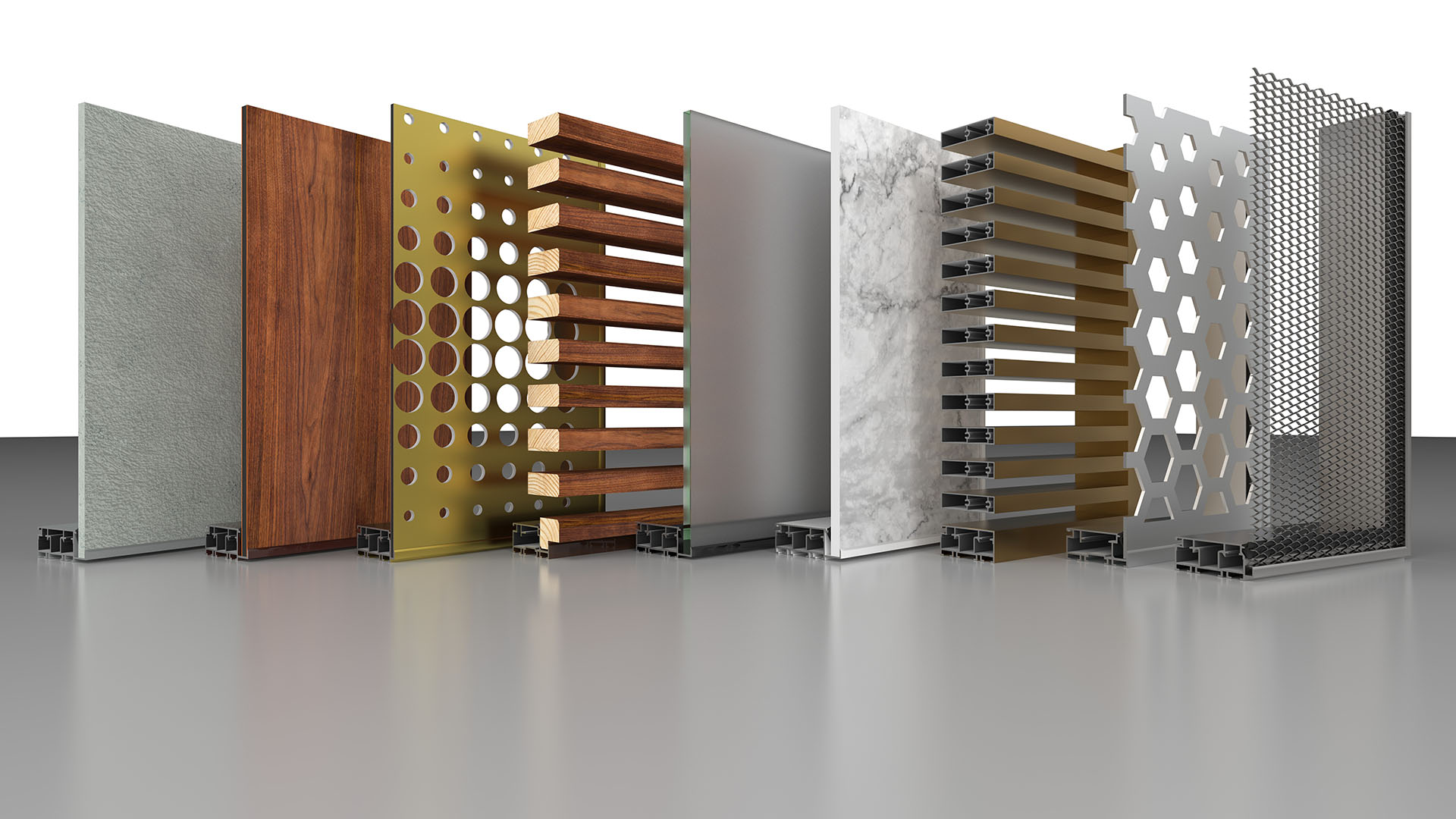

CLADDING FINISHES
-Louver -Glass -Sheet Metal
-Aluminium Composite Panel
-HPL -Fiber Cement -Wood
-Ceramic
DETAIL
The system has been designed to allow for seamless integration with the building external cladding. Several versions are available to be used with fiber cement, HPL, Aluminium composite panels, wood, glass, ceramic and metal sheets. Provision has been taken to allow the use of cladding material on the shading system itself. In addition to the cladding material, the system comes with a variety of blades to be installed vertically or horizontally.
SEALING
In its standard configuration provision has been taken to allow for the installation of build in fly screen. A complete black out option is also available through the sealing of all the seams.
FRAME PROFILE DEPTH
60 mm
FRAME PROFILE VISIBLE WIDTH
18.5 mm
ELECTRIC MOTION
Available
MOTOR VOLTAGE
24 V(DC)
SASH HEIGHT
5000 mm
SASH WIDTH
1200 mm
SEALING TYPE
- Gaskets
- Nylon Brush
MANUAL MOVEMENT
Available
BLACKOUT
Available
MANUAL LOCKING SYSTEM
AvailableAvailable
FLYSCREEN
Available
