SINE WAVE PROFILE FACADE
SINE WAVE PROFILE FACADE

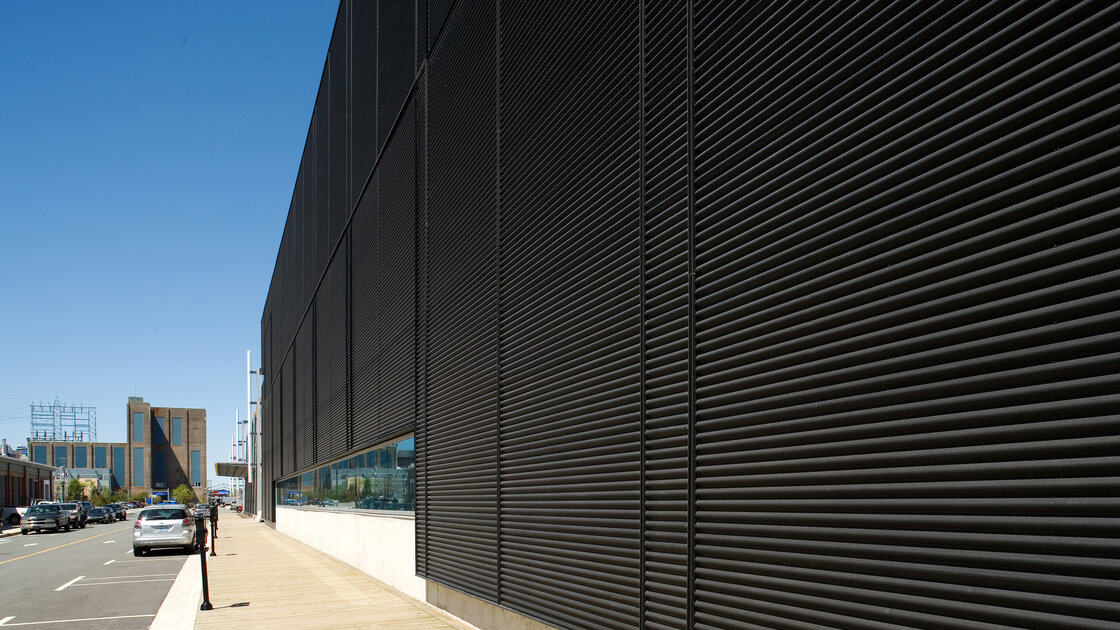

It involves installing the Sine wave panels on a metal framework fixed to the supporting structure.
The sine wave panels provide increased freedom of choice and design through the play of light and shadow on the cladding.
INFORMATION
BRAND
Vmzinc
PRODUCT TYPE
Facade
MATERIAL
Metal Framework
DOWNLOAD
ā Data Sheet
AREAS OF APPLICATION
-New construction or refurbishment projects. -Flat facade or curved with large radius. -All types of buildings, in particular office and public buildings and collective housing.
KEY ADVANTAGES
- Rythmic wave aesthetic,
- Vertical or horizontal cladding with special joint,
- Easy installation with overlapping between two panels for fast installation,
- Range of components offering a wide variety of flashing details.
PANELS
Wave Panels
STRUCTURE
Supporting Structure.
TECHNICAL DATA
| TYPE | 18/76 | 25/115 | 43/180 |
|---|---|---|---|
| Wave depth | 18 mm | 25 mm | 43 mm |
| Wave width | 76 mm | 115 mm | 180 mm |
| Useable width | 836 mm | 805 mm | 720 mm |
| Length | From 1.8 to 6 m | From 1.8 to 6 m | From 1.8 to 6 m |
| Weight (1 mm) excluding framework | 8.7 kg/m2 | 9 kg/m2 | 9.5 kg/m2 |
| Radius for natural curving | 15 m | 30 m | 40 m |
INSTALLATION

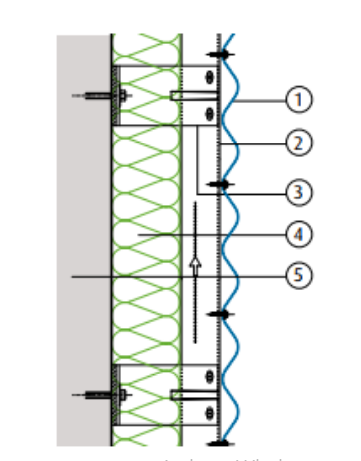

-The VMZINC Sine wave panels are through fixed onto a timber or metal substructure (galvanized steel 1.5mm or Aluminium 2.2mm) spaced at between 800mm and 1200mm depending on project loadings. All fasteners must be stainless steel. -For panels over 3m in length, holes must be slotted to allow for expansion and contraction. A continuous 38 mm ventilated air gap is left clear behind the panels on the entire facade. -Continuous ventilation openings are made at the top and bottom. -The insulation panels must be sufficiently rigid and well anchored to their structure to prevent them from moving and blocking the ventilation space (refer to the insulation manufacturer's specifications). -The cladding supports must be at least 60 mm wide to support the panels correctly. -Any wood treatment products (fungicides, insecticides) must be dry and completely neutral to VMZINC.
