Closed circuits reliably pressed
FEATURES
NO RISK OF FIRE
The strength and tightness of the press connection is achieved by cold deformation of the pipe and fitting. In contrast to welding and soldering operations, no open flame or heat is required. Additional protection measures are unnecessary for renovation and repair work.
PRESSING INSTEAD OF WELDING OR SOLDERING
Pressing is not only straightforward, but also fast – in fact, it's around twice as fast as welding or soldering. The pressing procedure itself is fast and simple: cut to length, deburr, mount the fitting, press – and you’re done.
FOR PERMANENT FIXTURE AND A HIGH LEVEL OF SAFETY
The Geberit Mapress seal ring is given a pre-defined shape during the pressing procedure. During this process the ring absorbs additional energy for permanent and reliable tightness.
PROTECTION AGAINST DUST AND DIRT
The pressing sockets of Geberit Mapress Carbon Steel sockets are sealed with a plug that protects the supply network from dust and dirt. The colour of the protection plug also identifies the application.
UNPRESSED GEBERIT MAPRESS CARBON STEEL FITTING DETECTION
The Geberit Mapress seal ring provides the pressing indicator with additional safety. Due to its special contours, unpressed connections leak during the pressure test. This recognition feature prevents harm later during operation.
PRESSING JAW GUIDE FOR SAFETY
The coordinated components lend the system a very high load bearing capacity. Operating pressures up to 16 bar are possible. Due to the high level of mechanical strength, a wide range of applications is possible which extends far beyond the usual domestic installations.
FAST VISUAL CHECK
The strength and tightness of the press connection is achieved by cold deformation of the copper pipe and Geberit Mapress Copper fitting. In contrast to soldering operations, no open flame or heat is required. Additional protection measures are unnecessary for renovation and repair work.
WIDE RANGE OF APPLICATIONS
The coordinated components lend the system a very high load bearing capacity. Operating pressures of 2.5 MPa (25 bar) and more are possible. Due to the high level of mechanical strength, a wide range of applications is possible which extends far beyond the usual domestic heating installations.
COATING FOR CORROSION PROTECTION
The plastic coating made of polypropylene reliably protects Geberit Mapress Carbon Steel system pipes in the dimensions DN 12 – DN 54 mm against external corrosion. All Geberit Mapress Carbon Steel system pipes from DN 12 to DN 108 mm are also available in a zinc-plated version for individual solutions for renovations and new constructions as well as for surface-mounted and concealed installations.
INFORMATION
INDICATOR
White pressing indicator to test if the fitting was pressed correctly
BRAND
Geberit
PRODUCT TYPE
Pipe
DETAIL
Geberit Mapress Copper fittings are delivered as standard with Geberit Mapress seal rings CIIR black.
APPLICATIONS
- Heating & Industry
- Potable water
HEATING WATER
- Black seal ring : ≤ 120 °C
- Blue seal ring : ≤ 140 °C
GEBERIT COPPER FITTINGS
-Non-alloy steel 1.0034, outside zinc-plated with additional chromatised protective coating -Red pressing indicator indicates carbon steel Dimension printed on the pressing indicator -Non-pressed connections are leaky and immediately identifiable during a pressure test -Protection plug prevents fittings from becoming dirty -More than 400 different fittings are available
THE ECONOMICAL ALTERNATIVE
Geberit Mapress Carbon Steel was designed for installations in which economy is of the highest priority. The Geberit Mapress Carbon Steel system pipes are available in two designs – with a cream plastic jacketing made of PP or with an outside zinc plating. System pipes with both inside and outside zinc plating are also available for special applications.
COLOR
Carbon Steel
PRESSURE
Negative pressure (Blue Ring)
DIMENSIONS
| NOMINAL WIDTH (DN) | DIMENSION D X S (MM) | R220 (ANNEALED) | R250 (HALF HARD) | R290 (HARD) |
|---|---|---|---|---|
| 10 | 12.0 x 0.8/12.0 x 1.0 | x | x | x |
| 12 | 15.0 x 1.0 | x | x | x |
| 15 | 18.0 x 1.0 | x | x | x |
| 20 | 22.0 x 1.0 | x | x | x |
| 25 | 28.0 x 1.0/28.0 x 1.5 | - | x | x |
| 32 | 35.0 x 1.2/35.0 x 1.5 | - | - | x |
| 40 | 42.0 x 1.2/42.0 x 1.5 | - | - | x |
| 50 | 54.0 x 1.5/54.0 x 2.0 | - | - | x |
| 65 | 76.1 x 2.0 | - | - | x |
| 80 | 88.9 x 2.0 | - | - | x |
| 100 | 108.0 x 2.0 | - | - | x |
DETAIL
GEBERIT MAPRESS SEAL RING FKM BLUE
- Fuels & Mineral oils
- Thermal medium (solar)
- Compressed air (oil purity class 0–X)
GAS APPLICATIONS YELLOW RING
The Geberit Mapress Copper fitting with a yellow seal ring made of HNBR was specially developed for gas applications. It is labelled with a yellow marking as well as a yellow protection plug.
BLACK SEAL RING (CIIR & EPDM)
- Heating water
- Inert gases
- Sprinkler (wet) & Extinguishing water (wet)
- Compressed air (oil purity class 0–3)
- Cooling water With & without antifreeze agent

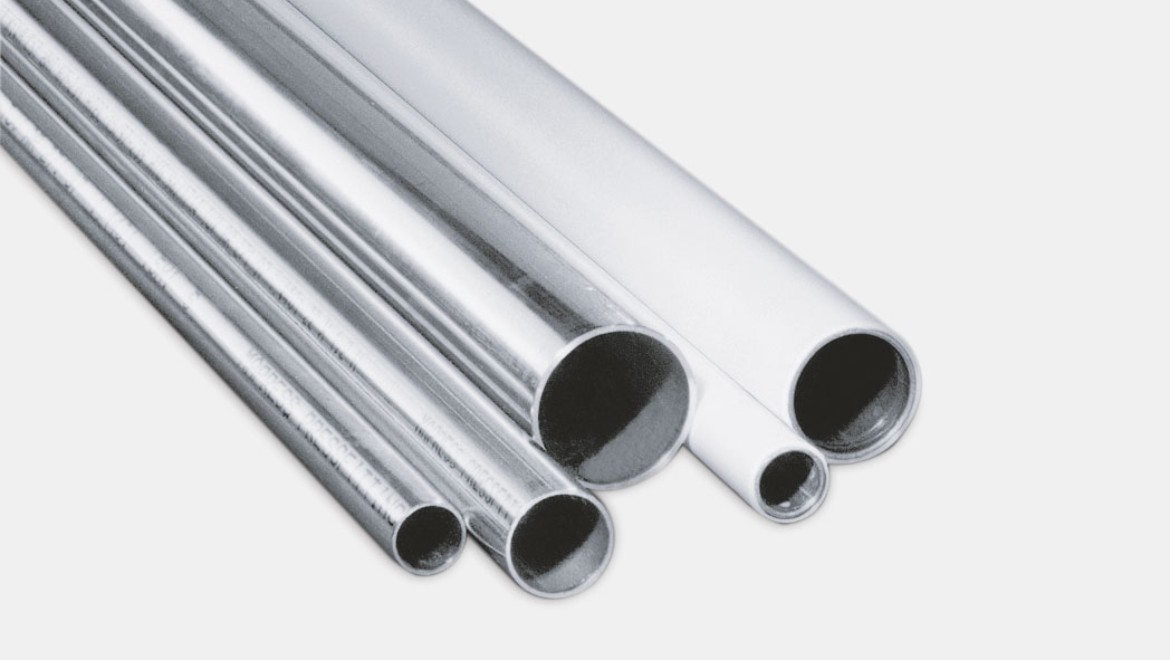

GEBERIT MAPRESS CARBON STEEL SYSTEM PIPE WITH PLASTIC COATING MADE OF PP
-Ideal for visually discreet surface mounting - Non-alloy steel 1.0034
-Available dimensions from DN 10 to DN 50 - Plastic jacketing made of PP, cream (RAL 9001)
GEBERIT MAPRESS CARBON STEEL SYSTEM PIPE, OUTSIDE ZINC-PLATED
-Ideal for economical installations -Non-alloy steel 1.0034 -Available dimensions from DN 10 to DN 100 -Corrosion protection through zinc plating
-Marked with red inscription
GEBERIT MAPRESS CARBON STEEL SYSTEM PIPE INSIDE AND OUTSIDE ZINC-PLATED
- Ideal for sprinkler, compressed air and extinguishing water systems
- VdS certification for wet sprinkler system
- “FM Approved” quality seal for fixed water extinguishing systems and sprinkler systems on ships
- Non-alloy steel 1.0215
- Inside and outside zinc-plated system pipes
- Available dimensions from DN 12 to DN 100
- Marked with black inscription
