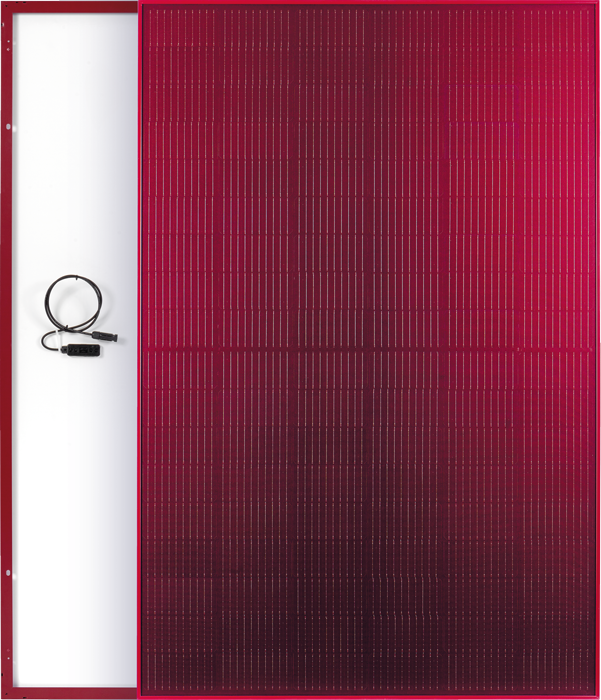

Futurasun M Silk® Plus Red
M SILK® PLUS RED
M SILK® PLUS RED
FU 340 / 345 / 350
Silk® Plus Colour is FuturaSun’s latest range of coloured photovoltaic modules. Silk® Plus Red photovoltaic modules allow the photovoltaic system to blend with the roof’s red tiles.
Silk® Plus Red is a high-efficient monocrystalline module with 108 PERC multi-busbar, half-cut cells. The brick red glass (RAL 3005) and the colour-matching frame makes these photovoltaic modules perfect for renovating historical buildings in urban settings and areas subject to landscape constraints.
INFORMATION
BRAND
Futurasun
WEIGHT
20.8 kg
DIMENSIONS
1722 x 1134 x 34 mm
WARRANTY
15-year product warranty and 25-year performance warranty
POWER
340 up to 355 Watt
BUILDING RESTORATIONS
Historical
TEMPERATURE COEFFICIENT PMAX
0.35 %/°C
POSSIBILITY
customize frame color
ROUND RIBBON
Less shades and more reflected light to the cell thanks to the round ribbon
NEW BUILDINGS
Tiled roofs
SUBJECT
Landscape constraints
FAÇADES
Photovoltaic façades with innovative compositions
VALUE
Buildings of high aesthetic value
DESIGN
Half-cut design in combination with multi-busbar reduce operating current and internal resistance
