RABEL 14050 SLIDING SHADING
RABEL 14050 SLIDING SHADING
Kinetic Façade Horizontal Sliding Shading System
Rabel 14050 is a Sliding shading façade system moving in the horizontal axis. The sashes can be operated independently or in a stacked configuration.
The movement is done manually or electrically via a belt drive motor. In the case of electrically operated motion the max travel is 6 meters per cluster of sliding sashes. The maximum electrically operated facade is 12 meters provided that two facing clusters are installed.
INFORMATION
PRODUCTION
Made in Cyprus
PRODUCT TYPE
Sliding System
BRAND
Rabel
USE
Outdoor
SHADING
The system is an ideal solution for projects where it is important to allow ease of passage through the shading system. It’s also an effective solution for facades exceeding 3 meters.
MULTI LOCK SYSTEM
The sash height can be up to 5m and its width up to 4 meters. The system allows for the construction of wall recessed, stepped as well as facing leaves in any configuration. In addition, the system is equipped with a multi-lock system for burglary resistance.
INSTALLATION DEPTH
60-230 mm
PARKING SPACE
300-4000 mm
SASH PROFILE DEPTH
60 mm
SASH PROFILE VISIBLE WIDTH
11.5-28 mm
FRAME PROFILE DEPTH
60 mm
FRAME PROFILE VISIBLE WIDTH
41 mm
CLADDING FINISHES
Louver, Glass, Sheet Metal, Aluminium Composite Panel, HPL, Fiber Cement, Wood, Ceramic
FUNCTION
Having a track depth of only 60mm makes it the ideal choice for use in tight spaces. For the system to function a top box is not required. As a result, the shading can be fitted on existing openings as well as make use of the whole opening from slap to slap.
INSTALLATION
In its standard configuration provision has been taken to allow for the installation of build in fly screen. A complete black out option is also available through the sealing of all the seams.
CLADDING SPACE
4 / 10 mm
ELECTRIC MOTION
Available
ELECTRIC MOTION MAX WIDTH
12000 mm
MANUAL MOVEMENT
Available
SASH HEIGHT
5000 mm
SASH WIDTH
4000 mm
SASH WEIGHT
200 Kg
SEALING TYPE
- Gaskets
- Nylon Brush
FLYSCREEN
Available
BLACKOUT
Available
MANUAL LOCKING SYSTEM
Available
ELECTRICALLY OPERATED FACADE
12 meters
MOTOR
- Motor Voltage : 24 V(DC)
- Motor Current : 2 A
ROLLERS
- Sliding Rollers : Stainless Steel
- Alignment Rollers : Stainless Steel
DESIGN
The system has been designed to allow for seamless integration with the building external cladding. Several versions are available to be used with fiber cement, HPL, Aluminium composite panels, wood, glass, ceramic and metal sheets. Provision has been taken to allow the use of cladding material on the shading system itself. In addition to the cladding material, the system comes with a variety of blades to be installed vertically or horizontally.

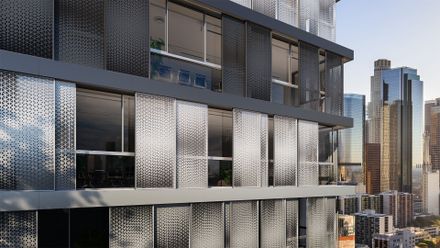

GALLERY
