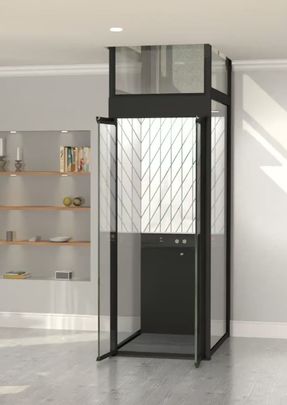

Aritco HomeLift Compact
ARITCO HOMELIFT COMPACT
ARITCO HOMELIFT COMPACT
Our most space-efficient lift opens a world of possibilities in homes that were previously considered too small for a lift.
With its modern design, customizable features, and connectivity, the home lift offers the advantages of being small combined with the ability to think big.
The lift has been designed with the same Scandinavian design philosophy as all our lifts. With its size and design, it meets all requirements for comfort, space and design.
information
BRAND
Aritco
EMERGENCY LOWERING
Battery-powered
INSTALLATION ENVIRONMENTS
Indoor installation environments
TECHNICAL COMPLIANCE
-European Machine directive 2006/42/EC -European standard EN 81-41
PRODUCT TYPE
Lift
TRAVEL HEIGHT
1 600 – 15 000 mm
RATED SPEED
Max 0,15 m/s
NUMBER OF FLOORS
2 to 6 floors
TYPE OF LIFT
Home lift intended for transportation of persons in buildings where the users are known.
OPERATION
-Hold to run (press and hold)
-One touch operation (press one time) for installations outside europe
GLASS MATERIAL
TOP HEIGHT
Always 2 248 mm
DRIVE SYSTEM
Patented screw and nut system
POWER SUPPLY
230 V 1-phase
ENVIRONMENT
-Indoor -Outdoor
INSTALLATION
-Recessed installation 50 mm below floor -Installed directly on floor with 50 mm ramp
ELEVATOR COLOR
Comes in three standard colors, Traffic white (RAL 9016), Jet Black (RAL 9005) and Anthracite Grey (RAL 7016). Can be painted in any RAL color from the RAL K7 classic chart, (except for pearl and fluorescent colors).
KEY FEATURES
-Very compact and space-efficient which makes it possible to install the elevator in almost any house, even when space is limited. -You can choose from more than 200 different colors, 2 different glass types, 8 different floors and a DesignWall with 8 different patterns. -Equipped with our SmartSafety system, with safety features, to meet all situations that can occur in a home, as well as to prevent accidents. -95% of all the components in the lift are recyclable.
WARRANTY
-Aritco HomeLift comes with a 5 year warranty -The screw and nut assembly has a 10 year warranty
TECHNICAL DATA
| MODEL | CARRIER SIZE | EXTERIOR DIMENSIONS | RATED LOAD |
|---|---|---|---|
| 1 | 580 x 805 mm | 840 x 880 mm | 250 kg / 2 persons |
| 2 | 880 x 805 mm | 1140 x 880 mm | 250 kg / 2 persons |
| 3 | 1080 x 805 mm | 1340 x 930 mm | 250 kg / 2 persons |
FLOOR MATERIAL
