ARITCO HOMELIFT
ARITCO HOMELIFT
Thinking about how you can stay in your home if you have trouble walking the stairs? Are your days full of activities with kids and shopping bags to carry up and down the stairs? Or are you just looking for more comfort and convenience?
FEATURES

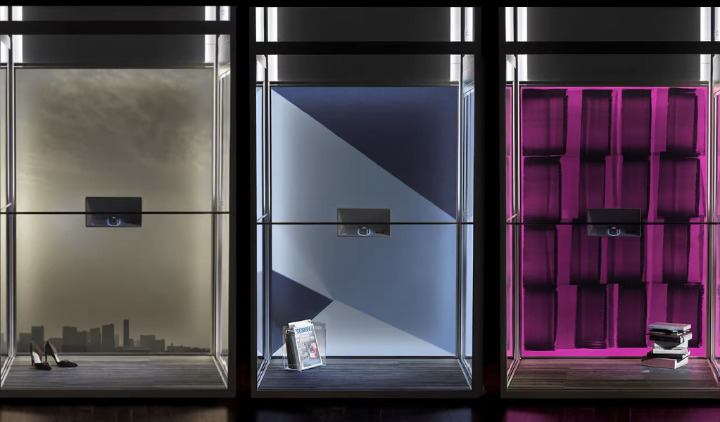

ARITCO DESIGNWALLS
Scandinavia is famous for its classic design. We care deeply about this heritage and something we wish to preserve and develop through the Aritco HomeLift. We have collaborated with some of Scandinavia’s most prominent designers and artists to develop our DesignWalls and make the Aritco HomeLift a true piece of art that you can be proud to have in your home.
PRODUCT WARRANTY
-Aritco is the first in the industry to offer a 5-year product warranty on all lifts. In addition to this, we offer a 10-year warranty on the drive technology. -It has always been on top of our agenda to assure top-tier safety and reliability for our customers. Introducing the product warranty will allow us to further pursue that commitment.
KEY FEATURES

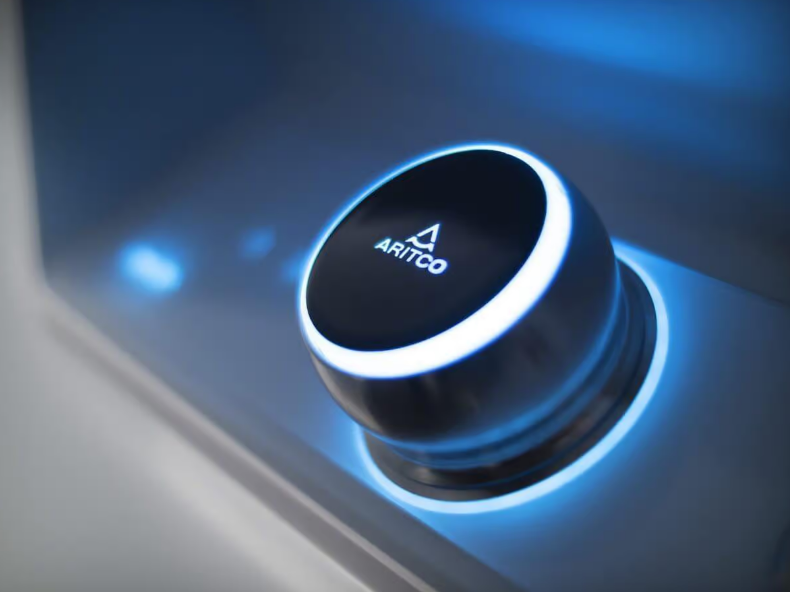

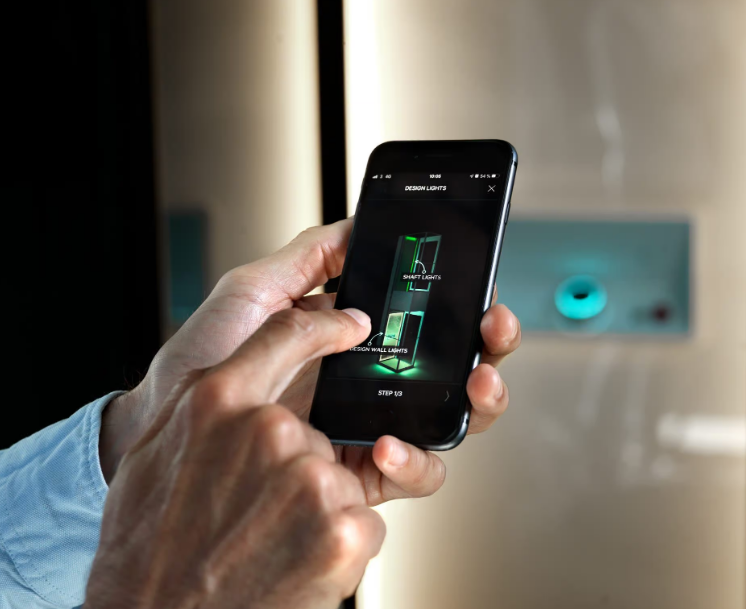

-5-year product warranty. 10-year warranty on drive technology -DesignWall - a backlit wall with selected art from prominent Scandinavian designers -DesignLight with state of the art lighting which you can control via the SmartLift app -The elevator is operated via a unique solution, a steering wheel called the SmartControl -Equipped with our SmartSafety system, with safety features, to meet all situations that can occur in a home, as well as to prevent accidents.
information
BRAND
Aritco
EMERGENCY LOWERING
Battery-powered
PRODUCT TYPE
Lift
TRAVEL HEIGHT
250 – 15 000 mm
RATED SPEED
- Max 0,15 m/s inside Europe
- Max 0,30 m/s outside Europe
TECHNICAL COMPLIANCE
-European Machine directive 2006/42/EC -European standard EN 81-41
INTENDED USE
-Installations in private homes
-Indoor installation environments
OPERATION
- Hold to run (press and hold)
- One touch operation (press one time) for installations outside europe
TOP HEIGHT
Min. 2 225 mm to 4 000 mm
DRIVE SYSTEM
Patented screw and nut system
POWER SUPPLY
-230 V 1-phase -400 V 3-phase
ENVIRONMENT
-Indoor -Outdoor
INSTALLATION
-Recessed installation 37 mm below floor -Installed directly on the floor with a ramp
WARRANTY
-Aritco HomeLift comes with a 5 year warranty -The screw and nut assembly has a 10 year warranty
TECHNICAL DATA
MODEL | CARRIER SIZE | EXTERIOR DIMENSIONS | RATED LOAD |
---|---|---|---|
S5 | 600 x 830 mm | 966 x 880 mm | 250 kg / 2 persons |
S8 | 1000 x 830 mm | 1366 x 880 mm | 250 kg / 3 persons |
S9 | 1100 x 830 mm | 1466 x 880 mm | 250 kg / 3 persons |
S12 | 1000 x 1200 mm | 1366 x 1250 mm | 400 kg / 5 persons |
S15 | 1100 x 1400 mm | 1466 x 1450 mm | 400 kg / 5 persons |
