RABEL 600 SUPER THERMAL L&S LIFT & SLIDING SYSTEM
RABEL 600 SUPER THERMAL L&S LIFT & SLIDING SYSTEM
Lift & Slide System up to 200Kg
The Rabel 600 Super Thermal lift and Slide is ideal for projects where top performance is required combined with ease of handling and rolling up to 200Kg per sash.
Regardless of the size and weight, it slides without any effort making it an ideal choice for many projects. While parked, it seals with four gaskets which are twice as many compared with other Lift and Slide systems, delivering impressive performance in extreme weather conditions.
INFORMATION
PRODUCTION
Made in Cyprus
PRODUCT TYPE
Lift & Sliding System
BRAND
Rabel
USE
Indoor & Outdoor
PERFORMANCES
Fabrication Thermal Transmittance EN ISO 10077-2 (Uw) : ≥1.3 W/(m2K)
CAPABILTY
Its capability of producing doors up to 3.0 meters in height as well as its relatively flat bottom track satisfies the need of most projects with large openings. As standard, it comes with a multipoint locking system that fulfils the highest standards for burglary resistance and is powered by a selection of design handles or recessed latches.
FRAME HEIGHT
49 mm
FRAME VISIBLE WIDTH
80 mm
TECHNOLOGY
It is available in all common typologies as well as 90 degrees corners without a fixed mullion. As a standard, it comes with a sophisticated high performance water drainage system that is hidden below the frame.
GLAZING PANES
Having a profile 60mm in width it can accommodate very thick acoustical double glazing panes for soundproofing as well as triple glazing panes for enhanced thermal performance.
CENTER MULLION WIDTH
80 mm
GLAZING WIDTH POSSIBILITIES
34 / 40 mm
CHARACTERISTICS
All of these features and performance characteristics come with a very small sash width and central mullion measuring 80mm.
SASH HEIGHT
80 mm
SASH DEPTH
60 mm
SASH VISIBLE WIDTH
60 mm
DETAIL
All sliders in the Rabel 60, 600, 6000 Super thermal family have the capability to fabricate a 90 degrees corner without fixed mullion. The fabrication has been optimised so that the corner mullion is not visible when looking at the inner corner thus providing consistent aesthetics with the remaining fabrication.
MAXIMUM LOCKING POINTS
4/5
THERMAL BREAK WIDTH
24 / 64 mm
THERMAL PERFORMANCE
Its super thermal performance as well as airtightness makes it an ideal choice for passive/Zero energy buildings.
SEALING TYPE
4 Gaskets
MAX. WEIGHT PER SASH
200 Kg

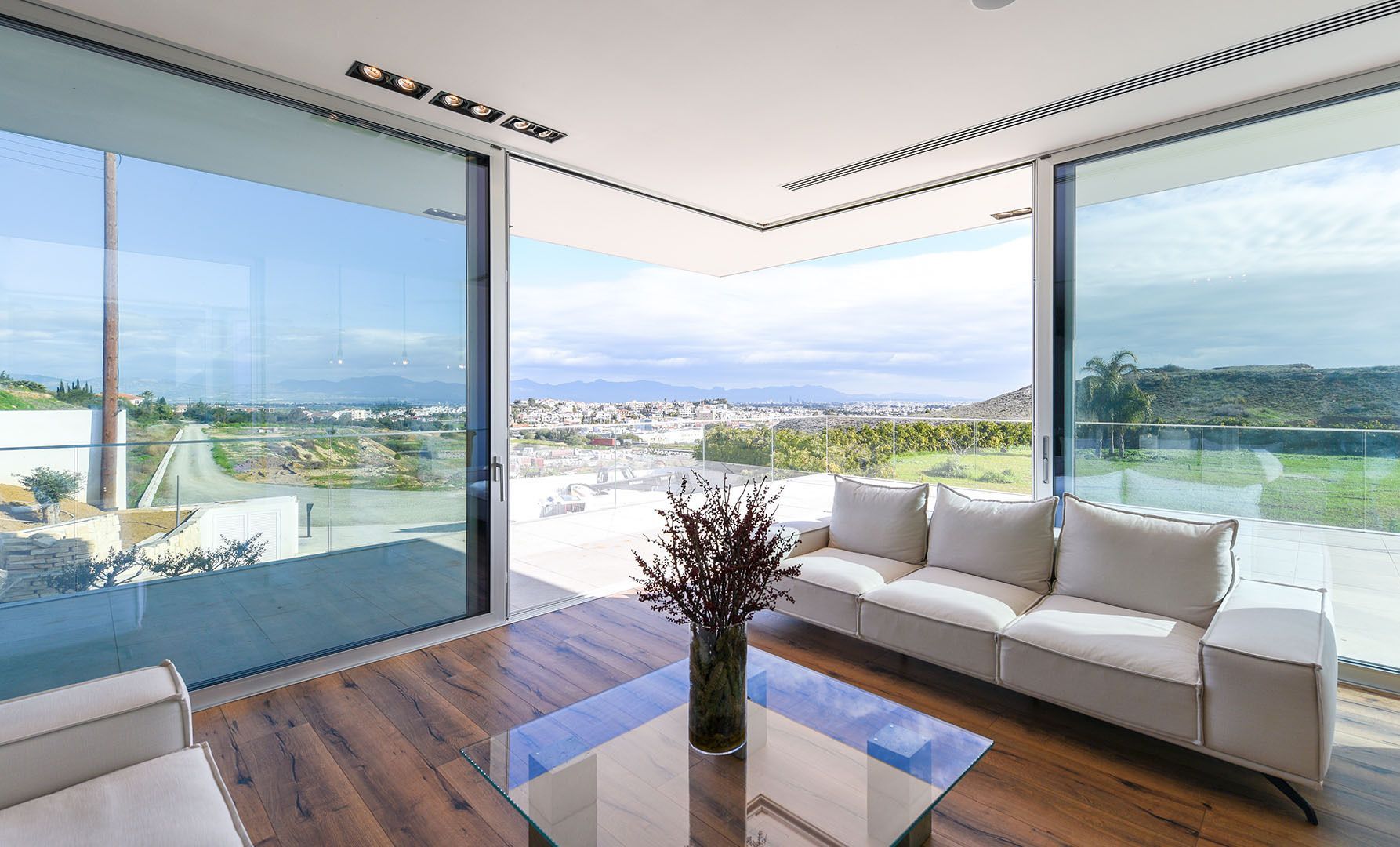

INNER AND OUTER CORNER
They also have the capability to fabricate a 90 degrees inner and also outer corner, making it thus possible to design and fabricate continuous doors in a "Z" formation.
DEGREE
90 Degrees Corner
DOOR HEIGHT
Up to 3.0 meters

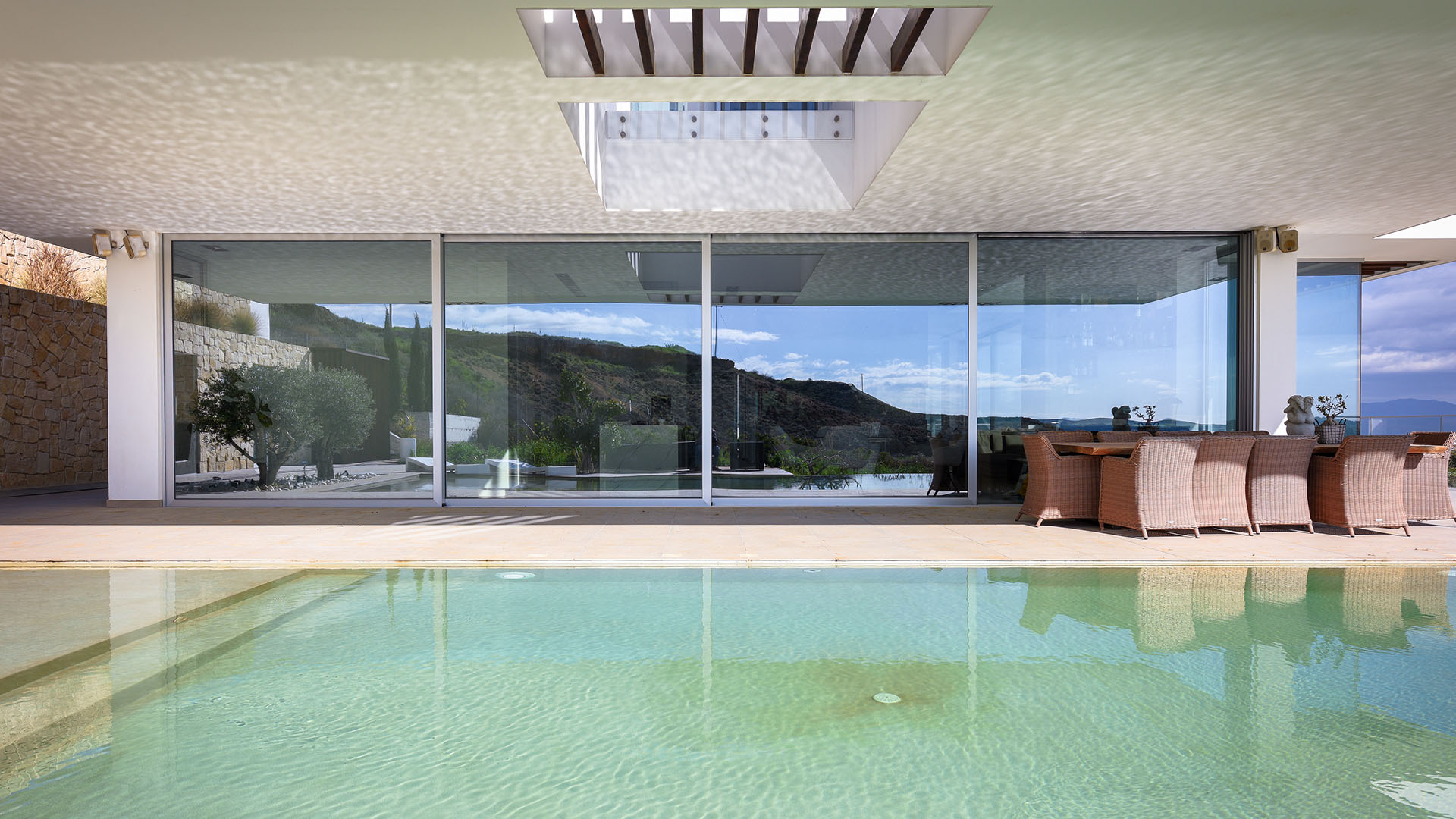

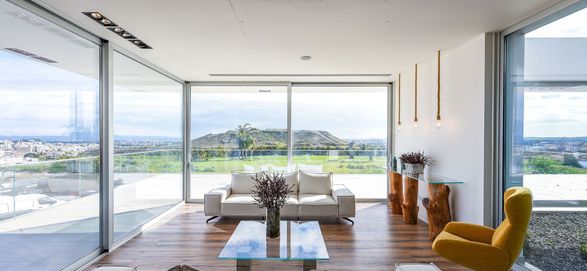

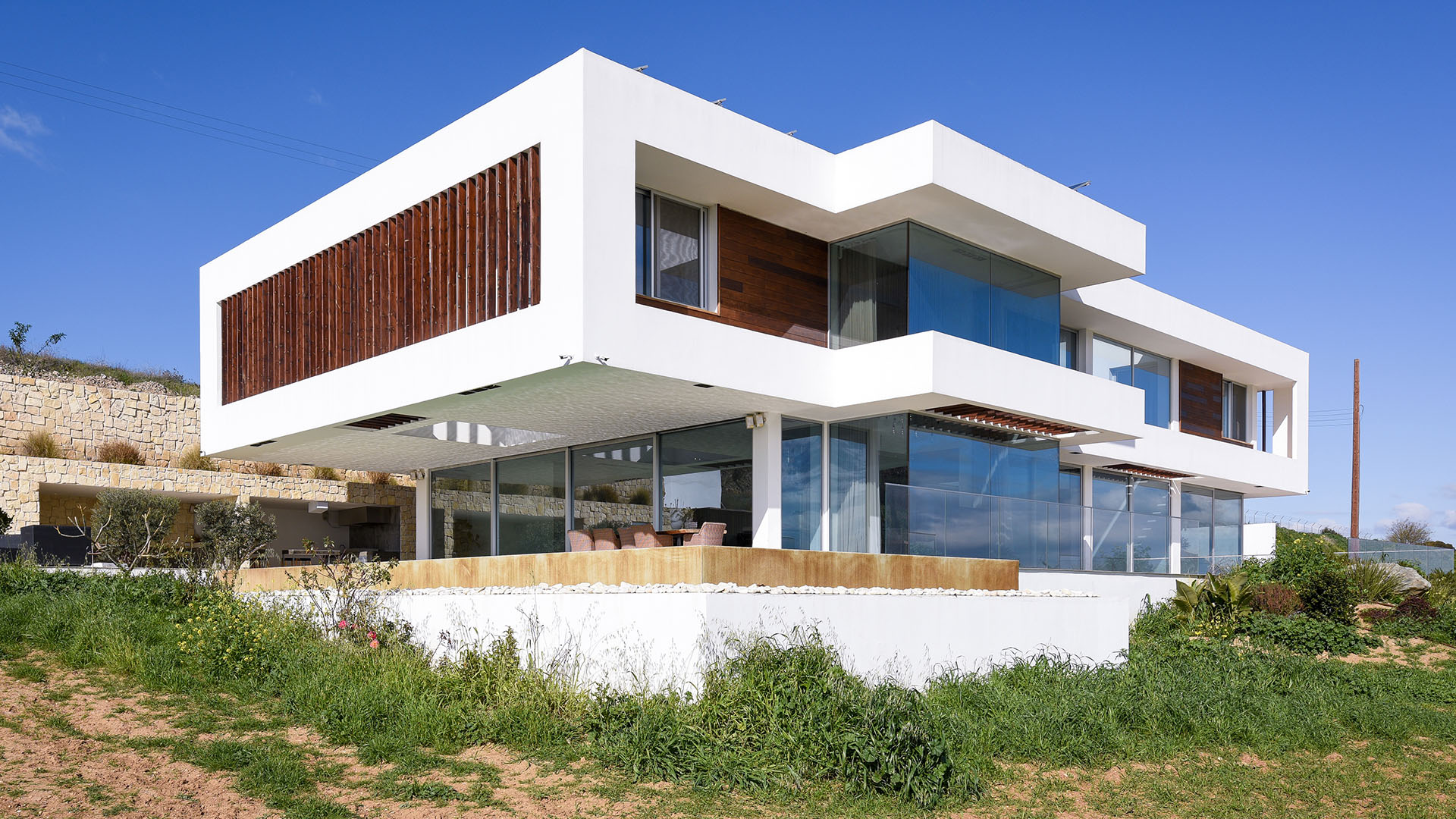

GALLERY
