Onduline Isoline Roof Tiles
ISOLINE ROOF TILES
ISOLINE ROOF TILES
With ISOLINE, your tiled roof never leaks. Even the highest quality roof tiles may not be durably waterproof; tiles can move or break due to outside elements.
ISOLINE system is designed to repel any water that might seep through roof tiles, helping to keep the building 100% leak free. ISOLINE acts as a durable waterproofing security, in case of a waterproofing breach in the tile cover.
INFORMATION
INCREASED TILES DURABILITY
Humidity-reducing ventilation extends tile life
BRAND
Onduline
PRODCUT TYPE
Roofing Sheets
PRODUCT BENEFITS
- Does not Rust
- Thermal Comfort
- Lightweight and Eco Friendly
- Good acoustic performance. Reduces external Noise
- Complete system for optimized aesthetics
ONDULINE ISOLINE ROOFING UNDERLAYS
ONDULINE ISOLINE ROOFING UNDERLAYS durably safeguard your house, your family and your belongings. Even the highest quality tiled roofs may not be durably waterproof; they can move or break and leak due to outside elements like frost, humidity, high winds, and an accumulation of dead leaves or snow. To ensure you can rely on your tile roof to keep your home safe and dry day after day, year after year, you need a long-lasting waterproofing security.
COLLECTION
Isoline
PRODUCTION
Made in India
LENGHTH
200cm
THICKNESS
2.9 kg
WIDTH
101cm
HEIGH OF CORRUGTAION
22mm
PITCH OF CORRUGATION
48mm
FOR NEW AND RENOVATION

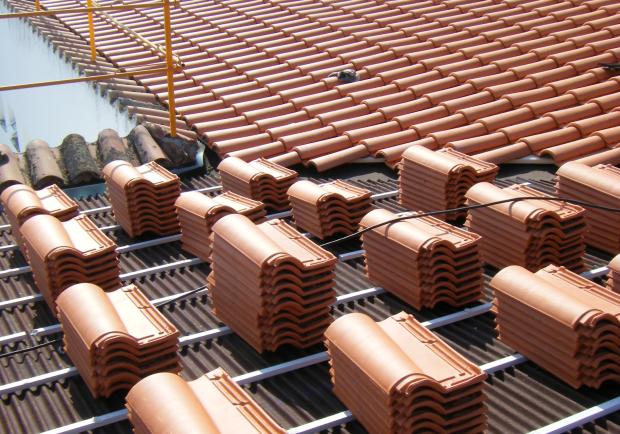

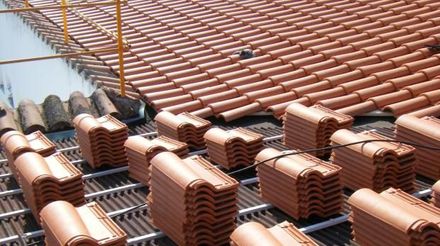

Large waterproofing sheets are laid under the tiles, creating an effective roof under your roof. The roofing underlays system repells any water that might seep through the tiles. Installation is extremely fast, and the interior of your house will remain dry throughout the work.
TOTAL SURFACE
2.02m
DOWNLOADS
↓ Data Sheet
PRESERVES THE ORIGINAL STYLE OF HISTORICAL BUILDINGS
If the original tiles are high-quality and well-preserved, they may be able to be reused on top of your new ISOLINE roofing underlays , maintaining the original historic aesthetic. In that case, Onduline roofing underlay will act as the primary waterproofing material, while the tiles protect the building.
Reusing original tiles also means significant savings in your renovation budget.
A SOLUTION AGAINST LEAK THAT FITS ANY TILE
No matter the type of tile you wish to use, the IISOLINE roofing underlays will fit! It can be used with any type of clay or cement tiled roof thanks to a diversified range of profiles, and it will fit any roof, regardless of shape or pitch.
WEIGHT
3.39kg
HEIGH OF CORRUGTAION
22mm
CORRGATION
21cm
HEIGH OF CORRUGTAION
22mm
INSTALLATION

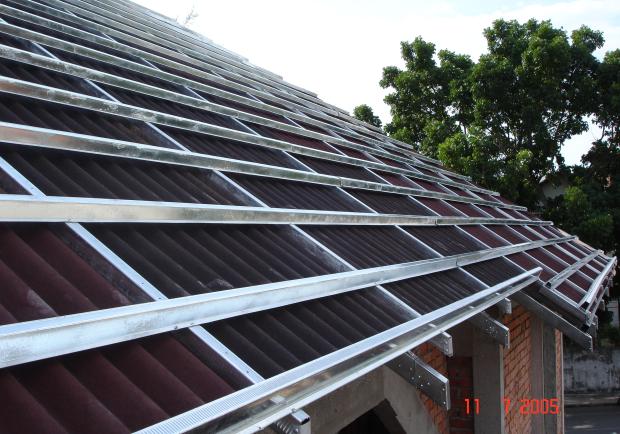

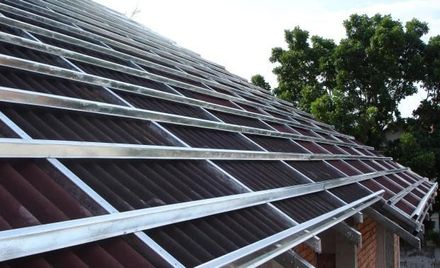

Installation of ISOLINE is simple. No special tools are required apart frok the usual ones in construction. ISOLINE can be fixed on metallic as well as wooden battens. You can fix ISOLINE using a hammer or electrical drilling machine. The appropriate type of fixing must be used for each typr of roof support.
