Vmzinc Flat Lock Panel
FLAT LOCK PANEL
FLAT LOCK PANEL

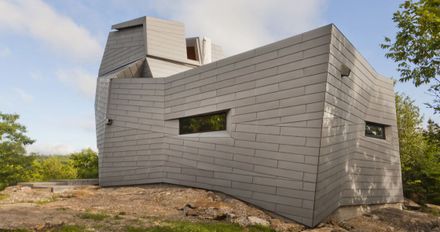

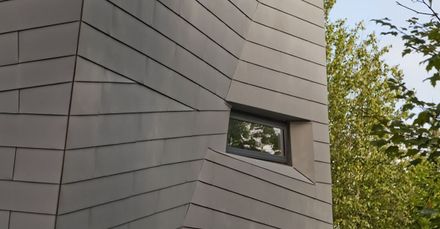

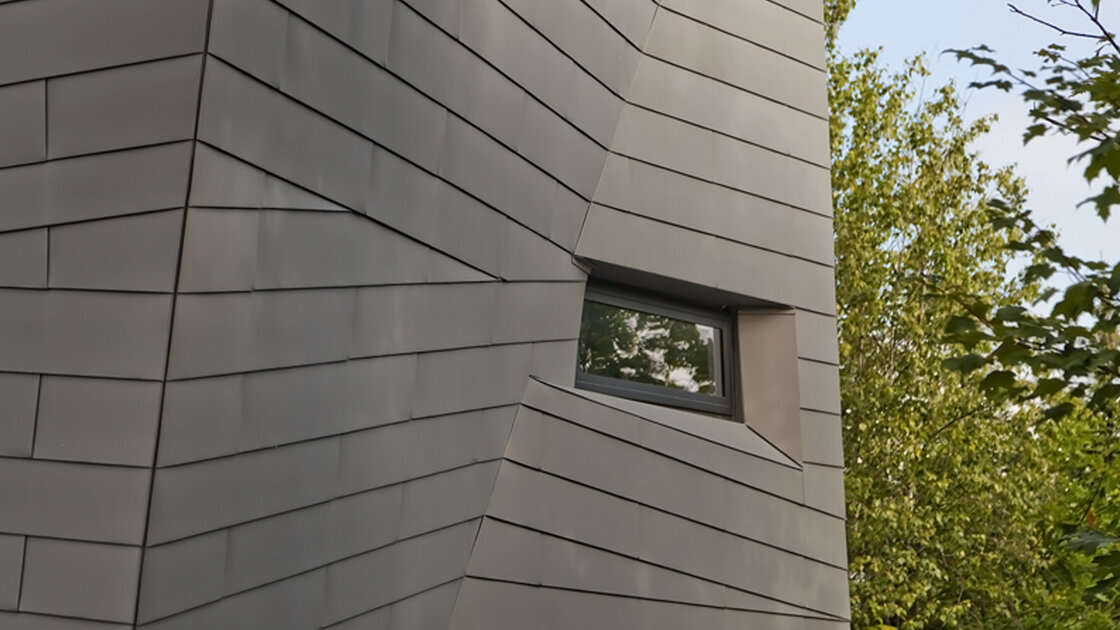

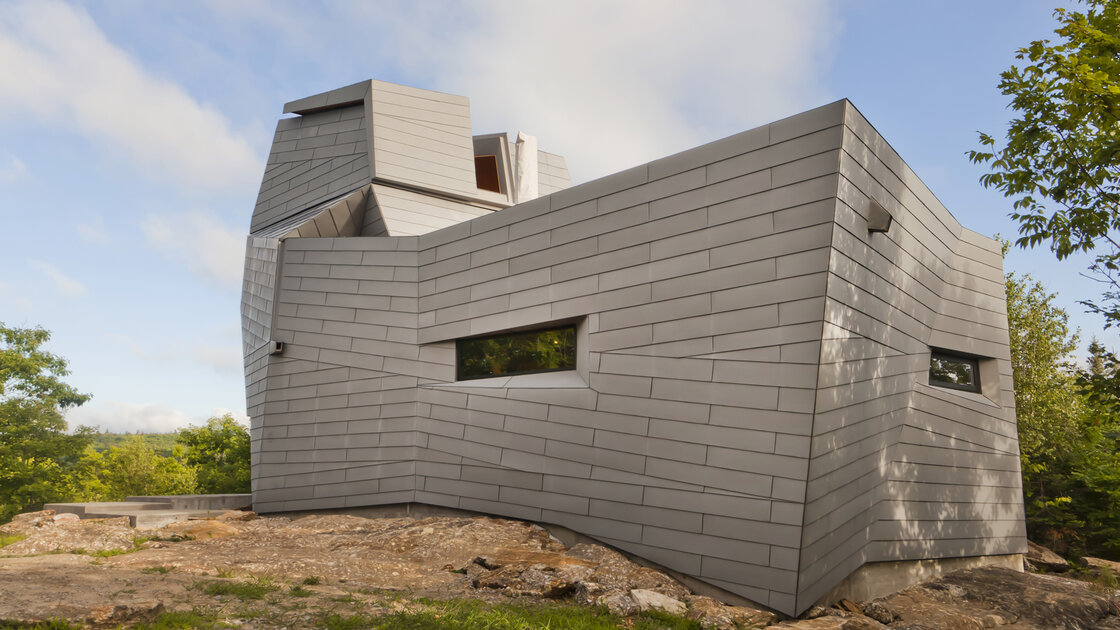

Flatlock panel can be installed aligned or staggered and both horizontally and vertically or even at an angle. The panels should be installed on a vertical wall or soffit.
The façade system involves laying the panels on a compatible wooden framework or plywood fixed to the supporting structure (masonry or metal structure).
INFORMATION
BRAND
Vmzinc
PRODUCT TYPE
Panel
INTERLOCKING
Interlocking with single fold on 4 sides
COMPONENTS
Range of components offering a wide variety of all flashing details
THICKNESS
0.80 mm
CENTRE TO CENTRE
375 - 285 mm
INSTALLATION
Horizontal or vertical installation
SHAPED
Panels can be square, rectangular or diamond shaped. The panels interlock into each other on the four sides and are secured with concealed fasteners and clips.
LENGTH
From 0.5 to 4 m
WIDTH OF THE JOINT
10 m
JOINTS
Recessed joints with concealed fastenings
AREAS OF APPLICATION
Suitable for both renovation projects and new buildings - Can be installed horizontally and vertically.
COLLECTION
Flat
DOWNLOAD
↓ Data Sheet
EXCLUDING FRAMEWORKWEIGHT
7.83kg/m2
INSTALLATION
-The panels can be installed horizontally or vertically. The choice of direction implies different aesthetic and technical solutions for the main flashings. -A range of standard accessories has been designed, including: External and internal corners, top and bottom pieces, window lintels, etc.
FINISHES
ALL FINISHES
-Anthra-zinc -Azengar -Pigmento Blue -Pigmento Brown -Pigmento Green -Pigmento Red -Quartz-zinc
