Onduline Classic Roofing And Cladding System
ONDULINE CLASSIC ROOFING AND CLADDING SYSTEM
ONDULINE CLASSIC ROOFING AND CLADDING SYSTEM
Waterproof and eco-responsible sheets
Onduline classic is an extremely tough lightweight roofing and cladding system.
Onduline classic roofing sheets can be used both on new structures and for renovation work, on wood or metal structure.
For more than 75 years, the ONDULINE CLASSIC roofing system has been known for its flawless water tightness.
INFORMATION
BRAND
Onduline
PRODCUT TYPE
Roofing Sheets
MECHANICAL & PHYSICAL PROPERTIES
- Impact strength : 400 mm
- Tearing strength : > 200 N
- Water impermeability : Pass1
- Proportion of bitumen : > 40%
- Homogeneity : Pass1
DURABILITY
- Water impermeability after ageing : Pass1
- Tearing strength after ageing : > 200 N
WATERPROOFING GUARANTEE
15 years
PRODUCTION
Made in India
FIRE PERFORMANCE
- Reaction to fire - EN 13501-1 : E
- External fire performance - EN 13501-5 : Froof
THERMAL COEFFICIENT
< 100.10-6 1/K
BENDING UNDER DOWNWARD
LOAD≥ 1400 N/m²
INSTALLATION
Special conditions of installation are required. Refer to the installation guide.
DIMENSIONS
- Length : 2000 mm
- Width : 950 mm
WEIGHT PER SHEET
6.4 kg
WEIGHT PER M2
3.4 kg/m2
CORRUGATIONS
10
HEIGHT OF CORRUGATION
38 mm
EXTREME RESISTANCE
Onduline classic roofs can withstand all types of climates, from the snow and cold weather to the heat and humidity of tropical countries. Its extreme resistance to violent winds makes it a popular solution in exposed areas. Onduline classic corrugated sheets do not contain any metal: therefore they do not rust or corrode. Onduline classic is therefore a reliable solution for buildings located by the sea.
APPLICATION FIELD
Lightweight corrugated roofing material and wall-cladding material. Ideal for all types of applications, specially in hot and humid climates
THICKNESS
3 mm
REFERENCE
T05003
MATERIAL DESCRIPTION
Corrugated bitumen sheet reinforced with cellulosic fibers and thermosetting resin. The composite is colored with inorganic pigments.
TARIFF CUSTOM CODE
HS : 68079000
WATER ABSORPTION
< 20%
ACOUSTIC AND THERMAL COMFORT
Onduline classic sheets are appreciated by our customers for the acoustic and thermal comfort they provide to the building, especially when compared to metal roofing solutions. The material absorbs some of the noise and heat that reaches it. This is a fundamental characteristic for hot regions or in noisy environments, such as areas affected by heavy rains.
BENEFITS
- Lightweight
- Acoustic and Thermal comfort
- Withstands strong winds
- Will not rust or corrode
- Asbestos -free
- Eco-friendly
DETAIL
Made from 50% recycled products, ONDULINE CLASSIC roof corrugated sheets are also environmentally friendly in their production and composition. Our material, derived from a unique technology, does not contain any asbestos, nor any other substance dangerous for the health or the environment. In renovation works, they can replace the previous roofing material, or be used as over-roofs over shingles, fibre cement, membrane or used metal sheets.
COLORS

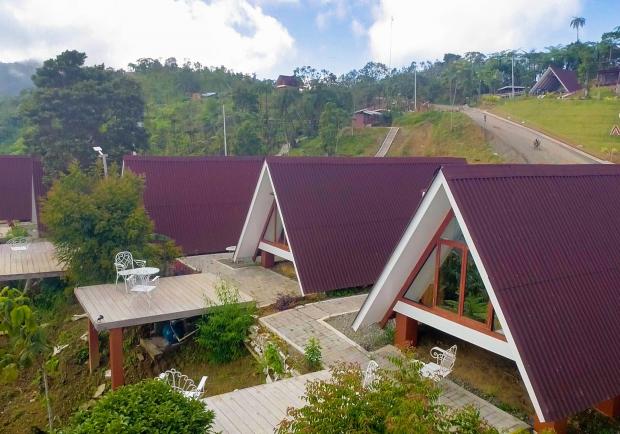

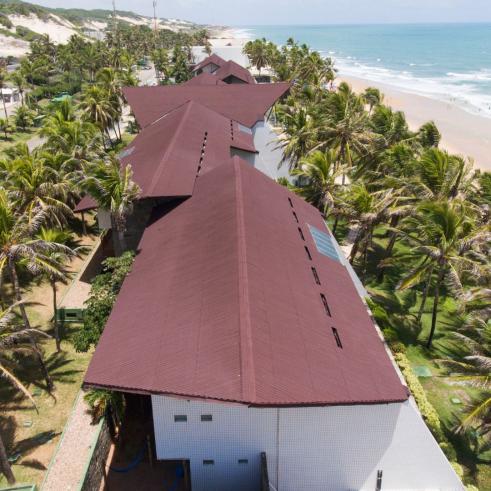

GALLERY
