RABEL 6000 SUPER THERMAL L&S
RABEL 6000 SUPER THERMAL L&S
Heavy duty lift & slide system up to 400kg
The Rabel 6000 Super Thermal L&S has been developed to fulfil the need of a Lift and Slide system that exceeds 200 Kg of weight per sash and up to a maximum of 400Kg.
It shares the same technology as Rabel 600 Super Thermal L&S and has matching aesthetics. To save on cost it is possible to use a combination of Rabel 60, 600, 600 Super thermal in the same project according to the application requirements without any compromise in performance or aesthetics.

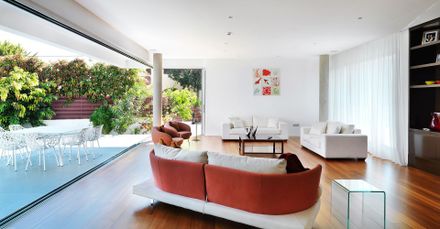

Its capability of producing doors up to 3.5 meters in height as well as its relatively flat bottom track satisfies the need of most projects with large openings.
As standard it comes with a multipoint locking system that fulfils the highest standards for burglary resistance and is powered by a selection of design handles.
It is available in all common typologies as well as 90 degrees corners without a fixed mullion. It comes with a sophisticated high performance water drainage system that is hidden below the frame.
Having a profile 60mm in width it can accommodate very thick acoustical double-glazing panes for soundproofing as well as triple glazing panes for enhanced thermal performance. All of this performance with a sash and central mullion width measuring 92 mm.

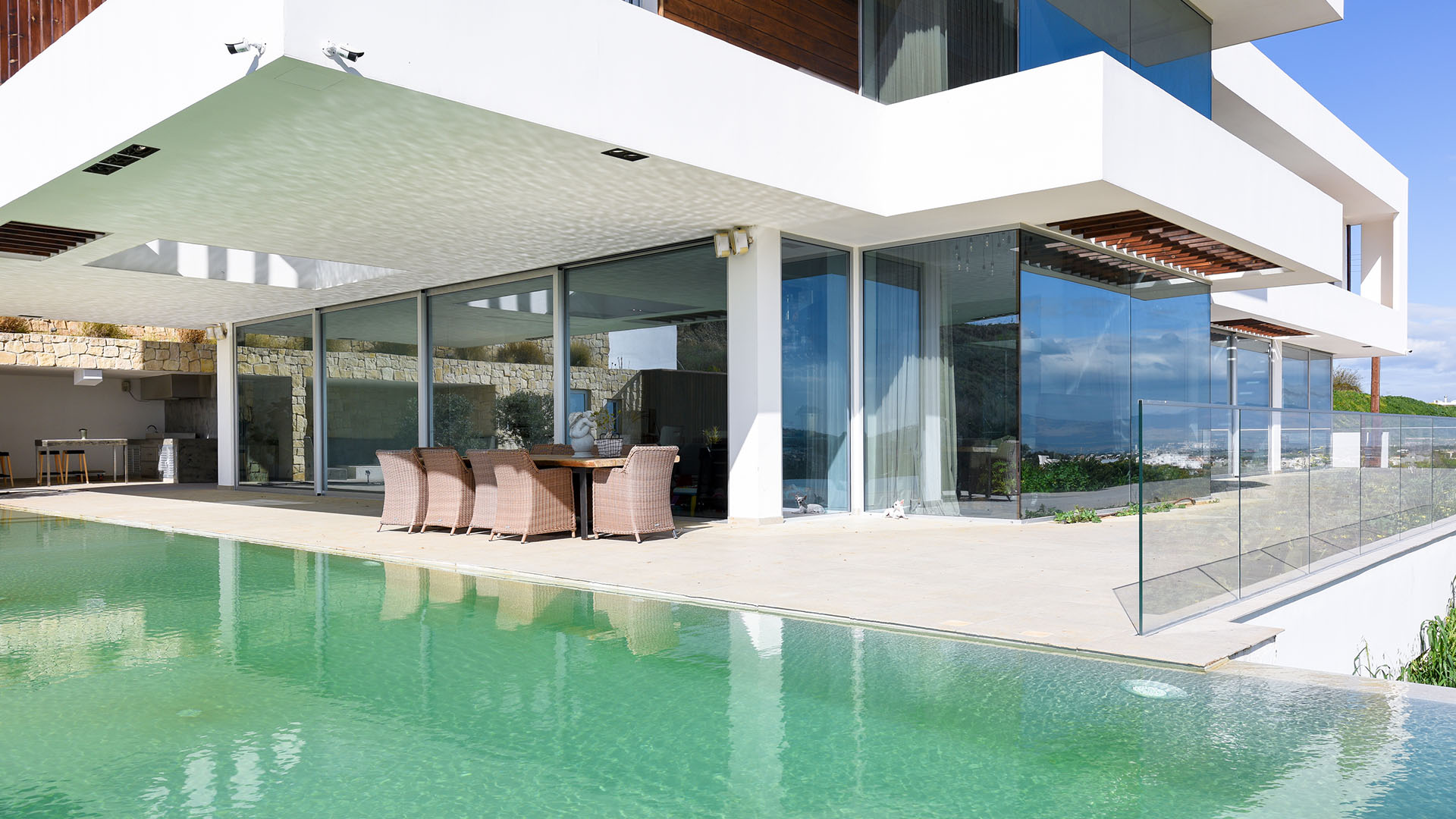

All sliders in the Rabel 60, 600, 6000 Super thermal family have the capability to fabricate a 90 degrees corner without fixed mullion. The fabrication has been optimised so that the corner mullion is not visible when looking at the inner corner thus providing consistent aesthetics with the remaining fabrication.
They also have the capability to fabricate a 90 degrees inner and also outer corner, making it thus possible to design and fabricate continuous doors in a "Z" formation. Its super thermal performance as well as airtightness makes it an ideal choice for passive/Zero energy buildings.
INFORMATION
BRAND
Rabel
SASH VISIBLE WIDTH
60 mm
CENTER MULLION WIDTH
92 mm
PERFORMANCES
Fabrication Thermal Transmittance EN ISO 10077-2 (Uw) : ≥1.3 W/(m2K)
SASH DEPTH
60 mm
FRAME HEIGHT
49 mm
FRAME VISIBLE WIDTH
92 mm
SASH HEIGHT
92 mm
CAPABILITY OF PRODUCING DOORS
Up to 3.5 meters
MAX. WEIGHT PER SASH
400* Kg
GLAZING WIDTH POSSIBILITIES
34 / 40 mm
MAXIMUM LOCKING POINTS
4/5
SEALING TYPE
4 Gaskets
TYPE
Lift & Slide
THERMAL BREAK WIDTH
24 / 64 mm
