GEBERIT MAPRESS COPPER PIPE
GEBERIT MAPRESS COPPER PIPE
Robust classic without soldering
FEATURES
PRESSING JAW GUIDE FOR SAFETY

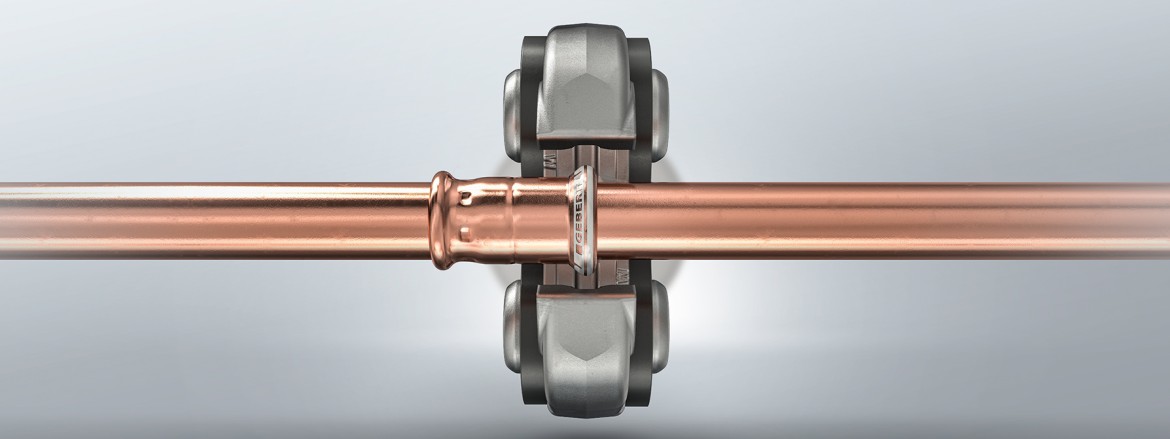

The defined jaw guide on the Geberit Mapress Copper fitting ensures that the pressing jaw is positioned in exactly the right position. It also prevents any risk of the joint slipping or being pressed in the wrong place. This prevents failed pressing sequences and ensures reliable and durable connections.
PROTECTION AGAINST DUST AND DIRT
The pressing sockets of Geberit Mapress Copper fittings are sealed with a plug that protects the supply network from dust and dirt. The colour of the protection plug also identifies the application.
FAST VISUAL CHECK
The white colour of the pressing indicator on the fitting enables clear identification of the material. In addition, a print on the pipe end facilitates the identification of the dimension used. The pressing indicator can be simply removed manually after the correct pressing operation.
UNPRESSED GEBERIT MAPRESS COPPER FITTING DETECTION

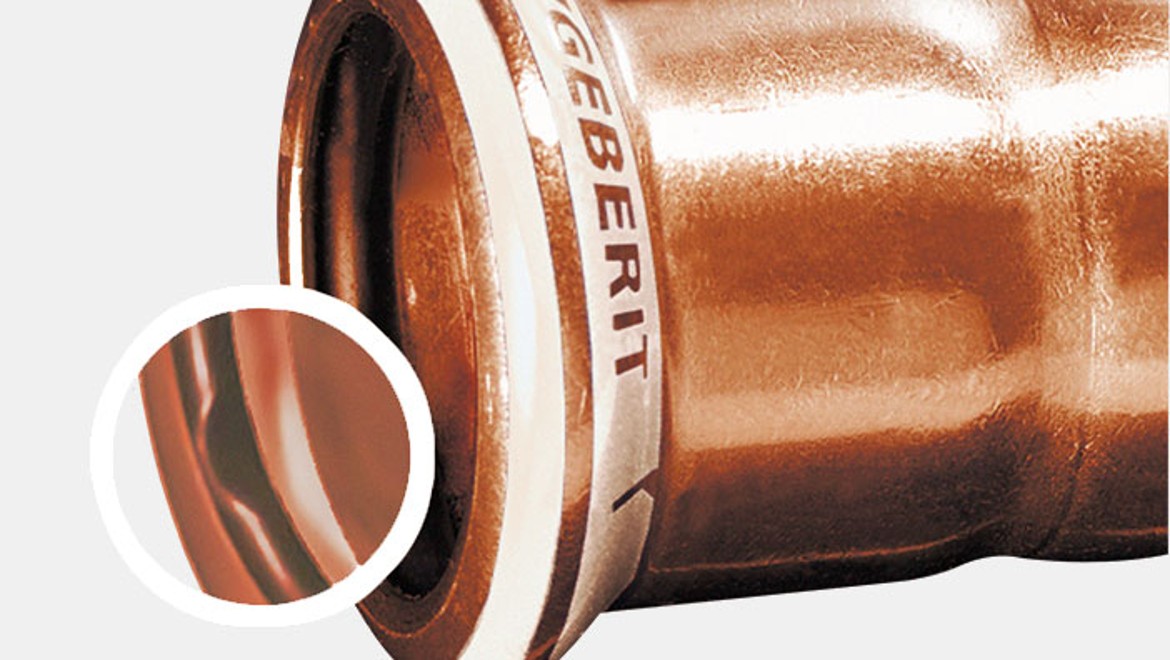

The Geberit Mapress seal ring provides the pressing indicator with additional safety. Due to its special contours, unpressed connections leak during the pressure test. This recognition feature prevents harm later during operation.
COMPACT DESIGN
Thanks to the compact geometry of the Geberit Mapress Copper fittings, they require less space and therefore tighter fitting combinations are possible. Furthermore, Geberit offers numerous fittings that are coordinated with a wide range of applications.
WIDE RANGE OF APPLICATIONS
The coordinated components lend the system a very high load bearing capacity. Operating pressures up to 16 bar are possible. Due to the high level of mechanical strength, a wide range of applications is possible which extends far beyond the usual domestic installations.
NO RISK OF FIRE
The strength and tightness of the press connection is achieved by cold deformation of the copper pipe and Geberit Mapress Copper fitting. In contrast to soldering operations, no open flame or heat is required. Additional protection measures are unnecessary for renovation and repair work.
PRESSING INSTEAD OF WELDING
Pressing is not only straightforward, but also fast – in fact, it's around twice as fast as soldering. The pressing procedure itself is fast and simple: cut to length, deburr, mount the fitting, press – and you’re done.
FOR PERMANENT FIXTURE AND A HIGH LEVEL OF SAFETY
The Geberit Mapress seal ring is given a pre-defined shape during the pressing procedure. During this process the ring absorbs additional energy for permanent and reliable tightness.
INFORMATION
INDICATOR
White pressing indicator to test if the fitting was pressed correctly
BRAND
Geberit
PRODUCT TYPE
Pipe
DETAIL
Geberit Mapress Copper fittings are delivered as standard with Geberit Mapress seal rings CIIR black.
APPLICATIONS
- Heating & Industry
- Potable water
HEATING WATER
- Black seal ring, CIIR : ≤ 120 °C
- Black seal ring, EPDM : ≤ 120 °C
GEBERIT COPPER FITTINGS
- Cu-DHP alloy
- White pressing indicator indicates copper
- Dimension printed on the pressing indicator
- Can be combined with other Geberit Supply Systems
- Protection plug prevents fittings from becoming dirty
SAFE PROCESSING WITHOUT AN OPEN FLAME
Many plumbers can still rely on copper. Geberit Mapress Copper is very easy to press. The supply system can be processed quickly and reliably without soldering.
COLOR
Copper
PRESSURE
Negative pressure (Blue Ring)
BLUE RING FKM OPERATING TEMPERATURES
-30 °C to +120 °C
-25 °C to +220 °C (short-term)
DIMENSIONS
The only item Geberit offers in copper is fittings. These are suitable for the following standard copper pipes. Geberit recommends using copper pipe in accordance with DIN EN 1057.
| NOMINAL WIDTH (DN) | DIMENSION D X S (MM) | R220 (ANNEALED) | R250 (HALF HARD) | R290 (HARD) |
|---|---|---|---|---|
| 10 | 12.0 x 0.8/12.0 x 1.0 | x | x | x |
| 12 | 15.0 x 1.0 | x | x | x |
| 15 | 18.0 x 1.0 | x | x | x |
| 20 | 22.0 x 1.0 | x | x | x |
| 25 | 28.0 x 1.0/28.0 x 1.5 | - | x | x |
| 32 | 35.0 x 1.2/35.0 x 1.5 | - | - | x |
| 40 | 42.0 x 1.2/42.0 x 1.5 | - | - | x |
| 50 | 54.0 x 1.5/54.0 x 2.0 | - | - | x |
| 65 | 76.1 x 2.0 | - | - | x |
| 80 | 88.9 x 2.0 | - | - | x |
| 100 | 108.0 x 2.0 | - | - | x |
DETAIL
GEBERIT MAPRESS SEAL RING FKM BLUE
- Fuels & Mineral oils
- Thermal medium (solar)
- Compressed air (oil purity class 0–X)
GEBERIT MAPRESS SEAL RING HNBR YELLOW
- Natural gases & Liquefied gases
- Prerequisite Use of quality copper pipes in accordance with DIN EN 1057.
GAS APPLICATIONS YELLOW RING
The Geberit Mapress Copper fitting with a yellow seal ring made of HNBR was specially developed for gas applications. It is labelled with a yellow marking as well as a yellow protection plug.
BLACK SEAL RING (CIIR & EPDM)
- Heating water
- Inert gases
- Service water & Negative pressure
- Hot and cold drinking water
- Compressed air (oil purity class 0–3)
- Cooling water With & without antifreeze agent
