ELABANA MINERAL ROOF TILE
ELABANA MINERAL ROOF TILE
Double grooved tiles with variable overlap
Elabana is the result of BMI Monier’s worldwide research and development expertise. Introduced in India especially to protect homes from severe monsoon, it is designed to give a long-lasting traditional look to the Indian homes.
INFORMATION
ATTRACTIVE COLOURS
Elabana ensures a beautiful roof with a range of attractive colours and peace of mind for years to come.
BRAND
Bmigroupindia
PRODUCT TYPE
Roof Tiles
PITCHED ROOF ATTRIBUTES
9.7 pcs m² Pieces Per
MINIMUM PITCH
17.5 °
DIMENSIONALLY CONSISTENT
High quality toolings were used to produce BMI Monier Elabana roof tiles which gives it the dimensional consistency in shape and size to ensure high level of roof performance.

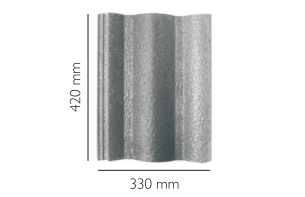

DIMENSION
- Height : 420 mm
-Width : 330 mm
WEIGHT PER PIECE
4.1 kg - 4.2 kg
MINIMUM BATTEN SPACING
295 mm
LAYING PATTERN
Straight Bond /Cross Bond
HEADLAP
75 mm - 125 mm
FEATURES
-Easy installation -Double grooved tiles with variable overlap -Wide range of long-lasting plain and double-tone colours -Complete range of fittings -High breaking strength -Dimensional stability and low water absorption
-Three decompression chambers under the tile improves water-tightness at the tile overlapping area -Low energy consuming manufacturing process -Unmatched production capacity in India
EASY INSTALLATION
Moulded with precision and uniformity to ensure dimensional stability for a consistent and perfect fit each time. Tiles can be laid cross bond and straight bond fashion.
COMPACT ROUND NOSE
The unique round nose, improves ageing by delaying fungus and algae growth at the nose of the tile. This feature is well-matched and suitable for Indian weather.
DOWNLOADS
↓ Catalogue
COVERAGE
9.7pcs/m2(based on 75mm headlap)
COVERAGE AND UNIT WEIGHT OF TILES AT VARIOUS SLOPES
| SLOPE (IN DEGREES) | MINIMUM OVERLAPPING | MAXIMUM BATTEN SPACE | NUMBER OF TILES | UNIT WEIGHT |
|---|---|---|---|---|
| >17 and <27 1 | 100 mm | 320 mm | 0.966 / sq ft | ± 4 itg/sqft |
| >27 | 75 mm | 345mm | 0.89 / sq ft | ± 3.7 kg/sqft |
COLOURS
ROOF SYSTEM COMPONENTS
REDIANT BARRIER
Rediant barrier for heat reduction
TRANSLUCENT TILES
Translucent tiles for natural light
COMPACT ROLL
Compact Roll to ventilate ridges and hips
WATERPROOF
Wakaflex for waterproof abutments
WATER ORIENTEERING
Valley Metal Sheet for water orienteering
HEAT REDUCTION
Veltisun RadenShield for waterproofing and heat reduction
