ROLL TECH
ROLL TECH
The first, the original

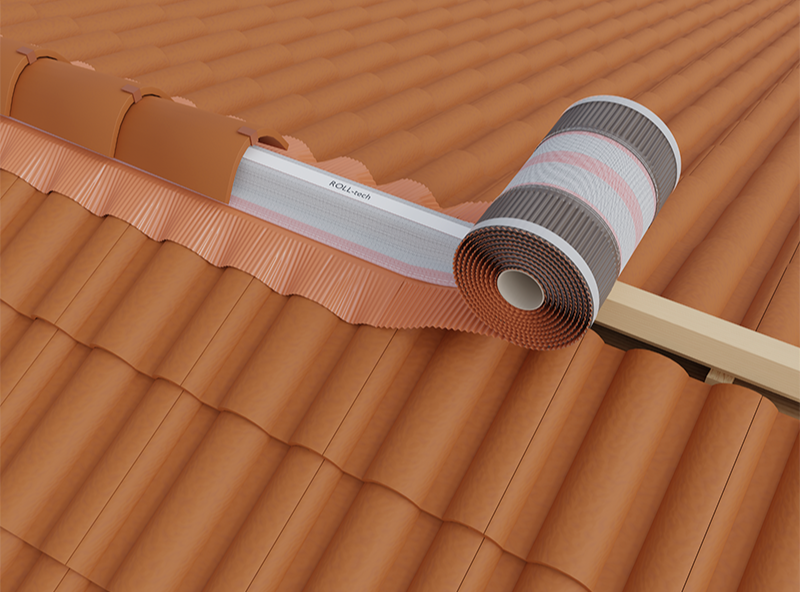

Central part in reinforced PP and perfectly adaptable folded aluminium stripe
INFORMATION
RESISTANCE
Prefolded aluminium edge to increase mechanical resistance
BRAND
Riwega
PRODUCT TYPE
Ridge Roll
PRODUCTION
Made in Italy
MATERIAL
Alu.pp.alu
CENTRAL FABRIC
UV stabilized PP
CENTRAL STRIPE
Reinforced Pp Fabric
ROLL TECH
- 310
- 350
- 370
- 400
WATER
Water resistant and UV stable
STABLE
0. 15 mm
ROLL WIDTH
-310mm -350mm -370mm -400mm
ROLL LEGTH
500 m
CENTRAL FABRIC
UV stabilized PP
MATERIAL ASSEMBLY
Glue And Seam
AIR FLOW (EACH SIDE)
>145 cm2/m
GUARANTEES
Guarantees a strong air passage
STORAGE
Keep the product in its original packaging, dry, protected from UV rays, at a temperature of max.30°C
RESISTANCE TO AGEING
>10 years (with indirect radiation)
EXTRUDED BUTYLIC GLUE
140 g/m
ROLL WIDTH
310 mm
ALU DEVELOPMENT
1.45%
PACKAGING
2 pieces (10 m)
PALLET
60 boxes (600 m)
WORKING TEMPERATURE
+5°C / +40°C
DOWNLOADS
↓ Catalogue Page
↓ Data Sheet
COMPOSITION
- Aluminium with prefolded edge
- Seam
- UV stabilized PP
- Reinforced PP fabric
- Extruded butylic glue
- Silicon liner
CODES AND MEASURES
| Colours / Measures | 310 mm | 350 mm | 370 mm | 400 mm |
|---|---|---|---|---|
| Red-brown | 01013101 | 01013501 | 01013601 | 01014001 |
| Brown | 01013102 | 01013102 | 01013102 | 01014002 |
| Black | 01013103 | - | 01013103 | - |
| Beige | - | - | 01013606 | - |
| Grey | 01013104 | - | - | - |
