Kaercher Submersible Dirty Water Pump Sp 22.000 Dirt Level Sensor
SUBMERSIBLE DIRTY WATER PUMP SP 22.000 DIRT LEVEL SENSOR
SUBMERSIBLE DIRTY WATER PUMP SP 22.000 DIRT LEVEL SENSOR
An individually adjustable level sensor starts the dirty water pump SP 22,000 Dirt Level Sensor immediately upon contact with water. If the water level drops below the level sensor again, the pump stops automatically after 15 seconds.

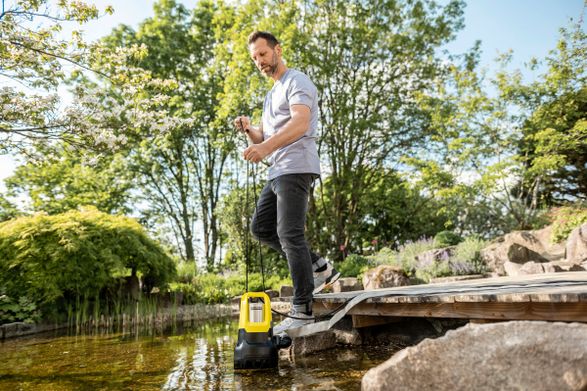

The extremely powerful submersible pump is ideal for draining, for example, large garden ponds, flooded basements or construction pits, as it can reliably pump out dirty water (dirt particles of up to 30 mm) at a rate of up to 22,000 l/h. With even dirtier water, the integrated pull-down stainless steel prefilter serves to protect against blockages.
The submersible pump can also be switched to continuous operation by means of the Automatic/Manual switch. It can reliably pump water away down to a residual water level of 35 millimetres – both in continuous operation and in automatic mode, when the level sensor is set accordingly.
With the Quick Connect connection thread, 1", 1 1/4" and 1 1/2" inch hoses can be connected without complication. Thanks to the stainless steel housing and robust slide ring sealing, the pump has a particularly long service life. An extended warranty of five years is available as an option.
INFORMATION
BRAND
Dörken Italia
EAN CODE
4054278952031
MAX. FLOW RATE
< 22000 (l/h)
DELIVERY HEAD
8 m
DESIGNED FOR DIRTY WATER
Reliable pumping of water with dirt particles up to 30 mm in size.
INTEGRATED PREFILTER
With level sensor and integrated prefilter: For challenging drainage tasks the submersible dirty water pump SP 22,000 Dirt Level Sensor manages to pump out dirty water at a rate of up to 22,000 l/h.
PRODUCTION
Made in Germany
MAX. MOTOR RATING
750 W
AUTO/MANUAL SWITCH
For switching between automatic and manual mode
PRESSURE
Max. 0.8
DELIVERY TEMPERATURE
max. 35 °C
WEIGHT WITHOUT ACCESSORIES
6.7 kg
WEIGHT INCL. PACKAGING
7.7 kg
DIMENSIONS
- Length : 238 mm
- Width : 293 mm
- Height : 354 mm
GRAIN SIZE
Max. 30 mm
IMMERSION DEPTH
Max. 7
QUICK CONNECT
Connection thread for quick and uncomplicated connection of 1", 1 1/4" and 1 1/2" hoses.
COMFORTABLE CARRYING HANDLE
Comfortable to hold and can also be used as a rope holder.
ROBUST AND INTEGRATED STAINLESS STEEL PREFILTER
Protects the pump against excessively heavy soiling and thus prevents the pump impeller from becoming blocked.
AFTER-RUNNING TIME
15 S
MIN. RESIDUAL WATER, MANUAL
35 mm
RESIDUAL WATER HEIGHT
35 mm
CONNECTION THREAD
G1 1/2
WATER PERMEABILITY
0,07 m/s (EN ISO 11058)
CHARACTERISTIC OPENING SIZE
140 μm (EN ISO 12956)
LEVEL SENSOR
For continuously variable definition of the switch-on and switch-off points of the pumps.
APPLICATION AREAS
-Pumping water from garden ponds -Use in event of flooding
-Draining building pits up to max. 100 m³
PRESSURE-SIDE THREAD
G1/2 internal thread
FREQUENCY
50 Hz
POWER CABLE
10 m
VOLTAGE
230 - 240 V
GUARANTEE
5 year extended guarantee
MOTOR PROTECTION
Long life motor protection
EQUIPMENT
- Ceramic face seal.
- Stainless steel housing
- Comfortable carrying handle
- Integrated stainless steel pre-filter
- Hose connection piece : 1'', 1 1/4'', 1 1/2''
- Easy hose connection thanks to Quick Connect
- Level sensor : Continuous switching level definition
- Switching between manual/automatic operation : Switch on the pump
- In automatic operation (auto), the pump automatically switches with the water level
- In manual operation, the pump runs continuously to ensure the minimum quantity of residual water
