Irsap Tesi Runner Radiator
TESI RUNNER RADIATOR
TESI RUNNER RADIATOR
The tesi runner model’s sinuosity is its distinctive feature and makes dynamism the absolute protagonist in every room.
Tesi runner has as standard equipment: valve, lockshield, shelves for installation in a coordinated finish, chromed vent valve, chromed pipe cover and hole cover rosette.
information
PRODUCTION
Made in Italy
PRODUCT TYPE
Radiator
BRAND
Irsap
THERMAL POWER
994 Watt
DIMENSIONS
- Height : 1802 mm
- Width : 391 mm
CERTIFICATIONS
MATERIAL
Steel
COLLECTION
Tesi
ELEMENTS
12
ELEMENT LENGTH
45 mm
PRESSURE
Maximum allowed working pressure 10 bar
TEMPERATURE
Maximum allowed working pressure 10 bar
MODELS
- 1800 08 el.
- 1800 10 el.
- 1800 12 el.
- 2000 08 el.
- 2000 10 el.
- 2000 12 el.
GUARANTEE
10 Year Guarantee
INCLUDED
Valves Included

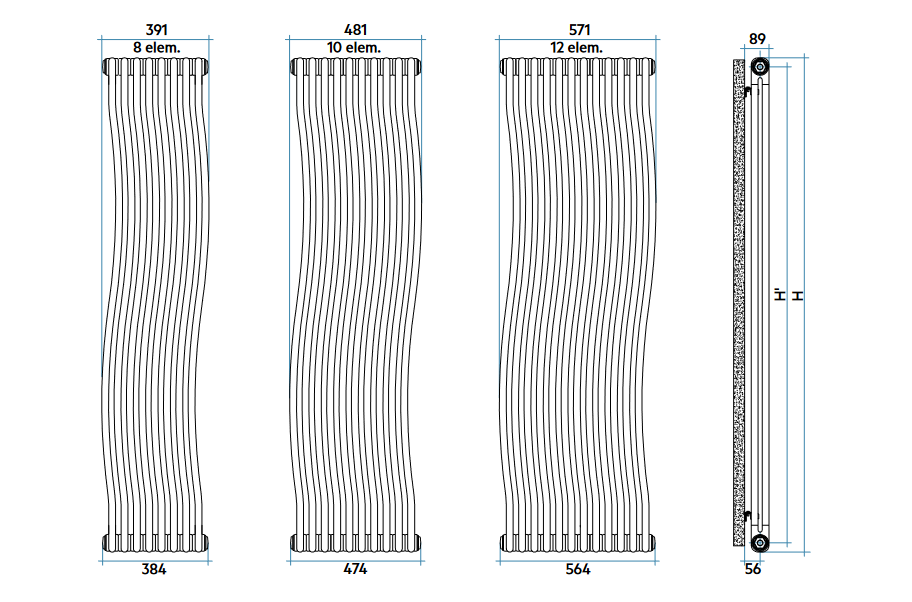

TECHNICAL DRAWING
DETAIL
Tesi runner is available in: 2 heights 1802 and 2002 mm; 3 widths from 391 to 571 mm; thermal powers from 994 to 1668 watt.
USE
Heating
SHEET
Moulded sheet steel manifolds
CALCULATE THE POWER
How to choose the Oasi radiator for your home? How to know what is the right power to heat each room? Online thermal requirement allows you to identify the most suitable radiator for your living space
DIAMETER
Sheet steel tubes with diameter 25 mm
THREADS
Manifold top and bottom end threads 1/2” g righ
STANDARD EQUIPMENT
-Chrome-plated vent valve kit -Kit of pipe covers and hole cover kit (rosettes) -1 1/2” end plug complete with chrome-plated cover -Kit for fixing to the wall in a finish coordinated with the radiator -Hydraulic connection kit (valve and lockshield valve) in a finish coordinated with the radiator -N.B. The hydraulic connection kit, supplied with the radiator, includes valve and lockshield version, both for separate valve and lockshield valve and for valve pitch 50 mm, complete with fittings for connection with copper pipes (diameters 12, 14 and 15 mm ) and multilayer (14 sp. 2 and 16 sp. 2).
COLORS
-Quartz 1 -Beige Cream -Standard White -Ivory - RAL 1013 -Manhattan Grey -Red - RAL 3000 -Brown - RAL 8017 -Claret - RAL 3003 -Orange - RAL 2004 -Bluish Lilac - RAL 4005 -Woodland Green - RAL 6005 -Green Grass - RAL 6018 -Melon Yellow - RAL 1028 -Black - RAL 9005 -Pearl White -Edelweiss White -Sablé -Quartz 2 -Sunstone -Tobacco Brown -Flame Red -Azurite 3 -Medium Grey -Titanium Grey Metallic - RAL 9023 -Pearl Grey -Graphite Black -Hammered Grey -Satin Black -Matt White -Matt Black -Hammered Copper -Deep Blue - RAL 5004 -Agave -North Sea Blue -Ice -Matt Blue Dove - RAL 5014 -Matt Light Grey
TECHNICAL DATA
| MODEL 01/05 | DEPTH (MM) | HEIGHT (MM) | WIDTH (MM) | CONN. CENTRE (MM) | WEIGHT (KG) | CAPACITY (LT) | ΔT=50°C (WATTS) | EXPONENT |
|---|---|---|---|---|---|---|---|---|
| 1800 08 el. | 65.0 | 1802 | 391 | 1735 | 21.52 | 12.64 | 994.3 | 1.329 |
| 1800 10 el. | 65.0 | 1802 | 481 | 1735 | 26.90 | 15.80 | 1.242.9 | 1.329 |
| 1800 12 el. | 65.0 | 1802 | 571 | 1735 | 32.28 | 18.96 | 1.491.5 | 1.329 |
| 2000 08 el. | 65.0 | 2002 | 391 | 1935 | 24.08 | 13.76 | 1.112.0 | 1.319 |
| 2000 10 el. | 65.0 | 2002 | 481 | 1935 | 30.10 | 17.20 | 1.390.0 | 1.319 |
| 2000 12 el. | 65.0 | 2002 | 571 | 1935 | 36.12 | 20.64 | 1.668.0 | 1.319 |
