TERMOPARETI ® CAOS METAL PANELS
TERMOPARETI ® CAOS METAL PANELS
The panels TERMOPARETI® CAOS (patented) have been studied to create original architectural impressions and can be used in industrial, commercial, residential building and public utilities, for new buildings and renovations.
The CAOS panel can be used for continuous and/or discontinuous external walls, internal partitions and ceilings and on any type of structure such as metallic, concrete and wood, and their installation can be vertical, horizontal or inclined. The panels have a joint and they are fixed with specific accessories.
INFORMATION
BRAND
Elcom System
PRODUCTION
Made in Italy
THICKNESS
- 40 mm
- 50 mm
- 60 mm
- 80 mm
- 100 mm
PRODUCT TYPE
Metal Panels
COLLECTION
Termopareti ®
THE PECULIARITY OF THE PANELS CAOS IS ON THE EXTERNAL SIDE
Particular and different geometric shapes obtained from an innovative and unique system specifically developed by elcom system s.P.A. To form the external surface, reaching an extremely dynamic effect never seen before on the market of metallic insulated panels.
ELEMENTS
Elements with thermic cut such as rounded and right corners, edges and spherical connections are used to complete and improve more and more the termopareti® caos
COPPER
Uni En 1172 ; Cor-ten
STEEL AND PREPAINTING
According Uni En 10088-1 Norm
STANDARD PANEL WIDTH
1.000 mm
STEEL
S 250 GD according UNI EN 10346 norm,
MECHANICAL CHARACTERISTICS
Mechanical characteristics as d.M. Of 14/01/2008 and tolerances according uni en 10143 norm
MATERIAL
- Copper
- Aluminium
- Stainless Steel
- Galvanized/Prepainted steel
MATTER COMES TO LIFE
The panels termopareti® caos (patented) have been studied to create original architectural impressions and can be used in industrial, commercial, residential building and public utilities, for new buildings and renovations. The caos panel can be used for continuous and/or discontinuous external walls, internal partitions and ceilings and on any type of structure such as metallic, concrete and wood, and their installation can be vertical, horizontal or inclined. The panels have a joint and they are fixed with specific accessories.
INSULATION
Pur Density 40 Kg/m³
ALUMINIUM
NI EN 1396 with 150 Mpa minimum yielding limit
TYPE
A REVOLUTIONARY IRREGULAR TEXTURE…. SPREADING INTO CAOS
The peculiarity of the panels caos is on the external side: particular and different geometric shapes obtained from an innovative and unique system specifically developed by elcom system s.P.A. To form the external surface, reaching an extremely dynamic effect never seen before on the market of metallic insulated panels.The imprints are positive respective the external side of the support and they can be realised on different materials such as galvanized and/or prepainted steel, aluminium, stainless steel and copper. Elements with thermic cut such as rounded and right corners, edges and spherical connections are used to complete and improve more and more the termopareti® caos.

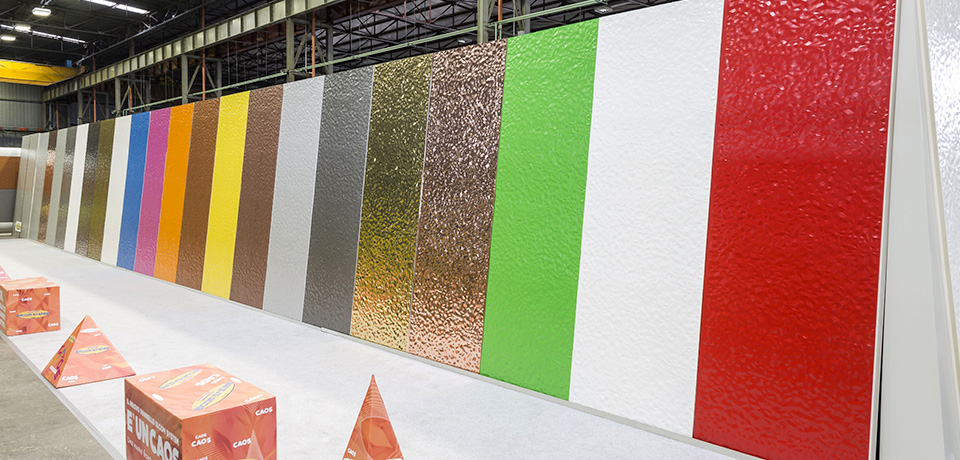

WIDE RANGE OF COLORS AND FINISHES
SUPPORT CONDITIONS
LOAD CONDITIONS WITH STEEL SUPPORTS
The values shown in the tables are indicative and referred to a deflection f<1/200 of the span l (m) for panels with thickness of STEEL supports 0,5+0,5 mm. For sizing and checking refer to the enclosed E of the UNI EN 14509 Norm and to the values shown in the CE certification. The letter I – E shows the required painted side.

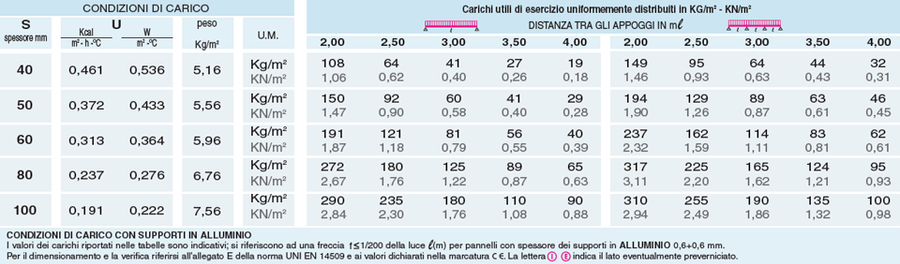

LOAD CONDITIONS WITH ALUMINIUM SUPPORTS
The values shown in the tables are indicative and referred to a deflection f<1/200 of the span l (m) for panels with thickness of ALUMINIUM supports 0,6+0,6 mm. For sizing and checking refer to the enclosed E of the UNI EN 14509 Norm and to the values shown in the CE certification. The letter I – E shows the required painted side.
GALLERY
