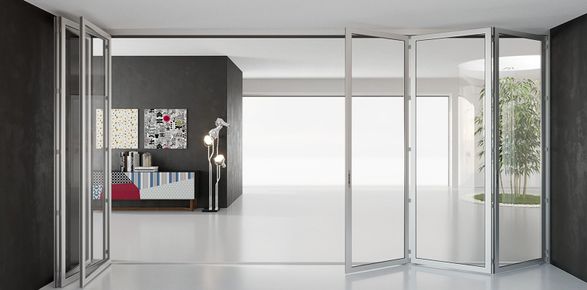

Sunroom S.30 Folding Door
S.30 SLIDING DOOR
S.30 SLIDING DOOR
S.30 is the folding door that is economical and practical and designed to be used in a wide variety of environments such as Barss, restaurants, balconies, porticoes, or verandas, but also Greenhouses or bioclimatic pergolas.
Besides the good quality to price ratio, it is ideal for making entry and exit easier when completely gathered in a pack. In this manner, nothing will keep your family members or customers, if installed in a business, from enjoying the outdoors, in any situation! In addition, the system creates the minimum footprint with the panels gathered, which could be set to the left or right, as needed.
INFORMATION
WEIGHT OF GLAZED UNIT
5-8 Kg/m2 Excluding Glazing
BRAND
Sunroom
PRODUCT TYPE
Sliding Door
PRODUCTION
Made in Italy
NUMBER OF TRACKS
2/3/4/5/6
SLIDING ACCESSORIES
Stainless Steel
SLIDING
Bottom
HEIGHT OF BOTTOM TRACK
37 mm
MAXIMUM PANEL WEIGHT
50 kg
PANEL DIMENSIONS
- Maximum Width : 1350 mm
- Maximum Height : 2400mm
MODULAR FRAME
The particular structure of the modular frame allows the construction of many types. The nearly infinite colours available for the aluminium profiles make it easy to adapt it to your style.
COLOUR OF ACCESSORIES
Black
CLOSURES
Side on frame
WATER TIGHTNESS CERTIFICATION EN 1027 – EN 12208
Class 6a
GLAZING
4/17 mm
AIR PERMEABILITY CERTIFICATION EN 1026 – EN 12207
Class 3
FINISHES
CERTIFICATION
-Water Tightness Certification - En 1027 – En 12208 : CLASS 5A
-Air Permeability Certification En 1026 – En 12207 : CLASS 3
-Wind Resistance Certification En 12211 – En 12210 : CLASS B1
COLOR OF ACCESSORIES
Black
PANEL WEIGHT
Max. 35 kg
ELEMENTS
The S.30 folding door is built with modular elements in non-thermal aluminium profiles and has excellent sliding as well as the unique possibility to create curving closures. Its panels are always built to measure, while the simple forms and durability guarantee make it always an excellent choice.
CHARACTERISTICS
Folding door with modular elements in non-thermal aluminium profiles that has excellent sliding motion as well as the unique possibility of creating curving closures. Its panels are always custom designed, while the simple forms and guarantee of long-lasting use make it an excellent choice.
MATERIAL
Aluminium
DOWNLOAD
↓ Data Sheet
