Hollaender Ss Post And Wall Mounted Handrail Railings
SS POST AND WALL MOUNTED HANDRAIL RAILINGS
SS POST AND WALL MOUNTED HANDRAIL RAILINGS
Post and wall mounted handrail is available in either 304 or 316 stainless steel.
Stainless steel is available as either a non-welded mechanical tee connection system or a welded system. No. 4 polish is standard with other polishes available.
INFORMATION
BRAND
Hollaender
PRODUCT TYPE
Railing System
FASTENERS
Stainless steel 304 alloy.
MATERIALS - STAINLESS STEEL
-Posts : 304 or 316 SS, 1 ½” IPS (48.2 mm O.D.) .120” Wall.
-Rails : 304 or 316 SS, 1 ½” IPS (48.2 mm O.D.) .080” Wall.
-Fittings : Mechanical (non-welded) tees, 655-8 Stainless Steel.
PRODUCTION
Made in United States
MOUNTING
Determined by site conditions.
BASE FLANGES
-Stainless steel -Cast aluminum.
MATERIALS -ALUMINUM
- Posts : Aluminum 6005-T5, 1 ½” IPS (48.2 mm O.D.) Schedule 80 Wall (clear anodized).
-Rails: Aluminum 6063-T6, 1 ½” IPS (48.2 mm O.D.) Schedule 40 Wall (clear anodized).
-Fittings : Aluminum 6063-T6 (clear anodized).
OVERALL DIMENSIONS
- Height of top rail above walking surface : 36 - 38”.
- Post spacing : Determined by site conditions.
CODE COMPLIANCE
U.S. International Building Code 2009/2012/2015/New York City standards specific to handrails.
PERFORMANCE REQUIREMENTS
All railings shall be supplied to conform to applicable sections of the following codes:
- International Building Code
- Canadian Building Code
- ADAAG
HANDRAILS
-Uniform load of 50 lb/ft. applied in any direction.
-Concentrated load of 200 lb/lf. applied in any direction. -Uniform and concentrated loads need not be assumed to act concurrently.
OPTIONS
Illuminated Railing can be provided using LED Pods, typically installed on the underside of the top rail at 2 ft. c-c.
GENERAL
Hollaender® handrail is available in either stainless steel (304 or 316) or anodized aluminum. Aluminum is ONLY available as a non-welded mechanical tee connection system. Stainless steel is available as either a non-welded mechanical tee connection system or a welded system. No. 4 polish is standard with other polishes available.

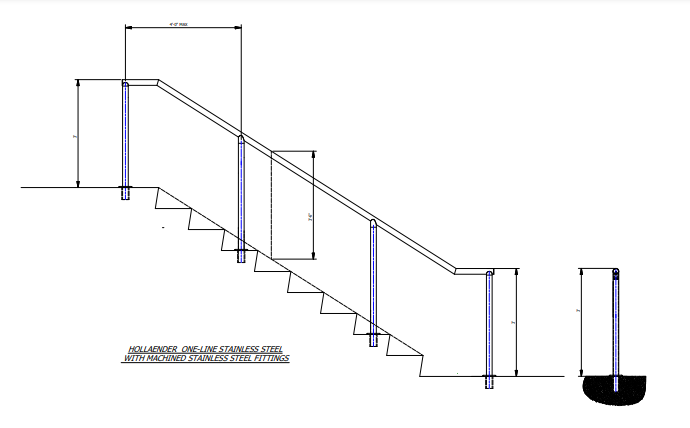

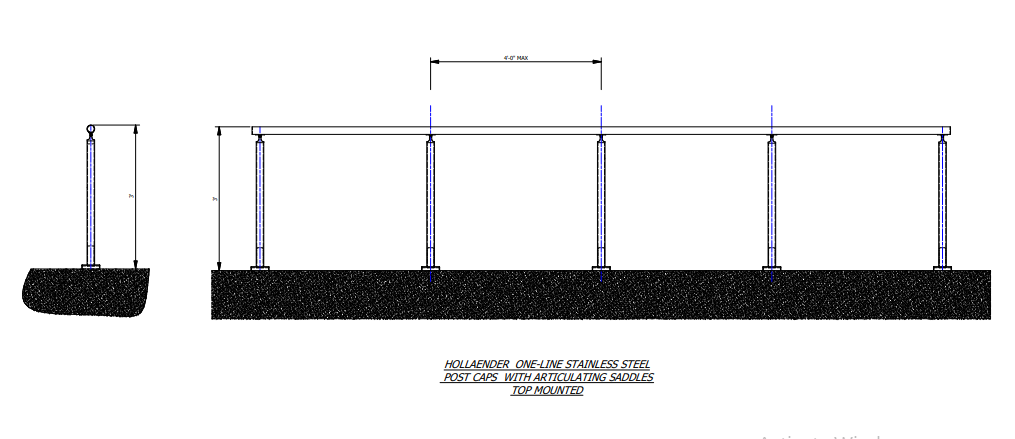

DRAWINGS
