TERMOPARETI ® BUBBLE METAL PANELS
TERMOPARETI ® BUBBLE METAL PANELS
They have been studied to create original architectural impressions and they can be used in industrial, commercial, residential building and public utilities for the new buildings and for restructures.
INFORMATION
BRAND
Elcom System
PRODUCT TYPE
Metal Panels
PRODUCTION
Made in Italy
COLLECTION
Termopareti ®
USE
They can be used in industrial, commercial, residential building and public utilities for the new buildings and for restructures.
PANELS
The panels TERMOPARETI ® BUBBLE (patented) are avaible in different types and are unlike the traditional panels. In fact they have been studied to create original architectural impressions.
STEEL AND PREPAINTING
S 250 GD+Z UNI EN 10147
COPPER
CW 024A – R240 EN 1172
MATERIAL
- Steel
- Copper
- Aluminium
DENSITY
40 Kg/m3 – B1 DIN 4102
LEMDA (λ)
0.0020 Kcal/mqh° C
THICKNESS
- 40 mm
- 50 mm
- 60 mm
- 80 mm
- 100 mm
CHARACTERISTICS
The panels can be used for continous and/or discontinous external walls, internal partitions and ceilings, The product, thanks to its characteristics, can be widely employed and architects and designers have freedom of choice in a wide range of materials and colours.The panels can be used on any type of structure such as metallic, concrete and wood and their erection can be vertical, horizontal or inclined. the panels have a joint and they are fixed with specific accessories.
ELEMENTS
The imprints are negative respective the external side of the support and they can be realized on different materials such as galvanized and/or prepainted steel, aluminium, stainless steel and copper.Elements with thermic cut such as rounded and right corners, edges and spherical connections, are finishing that complete and bring out the termopareti ® bubble
ACCIAIO INOX
AISI 304 2B UNI 10372
ALLUMINIUM
Alley 3105 physic estate h46 en 508/2
EXTERNAL SURFACE

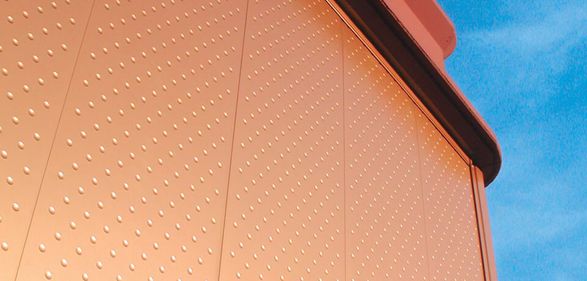

The peculiarity of the panels BUBBLE is on the external surface: pressed spherical imprints on the steel that give an impressive architectural effect to the building.
DETAIL
TIPO TYPE (WPM/C-FN BUBBLE)

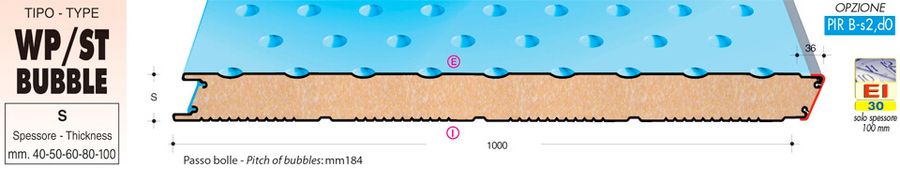

TIPO TYPE (WP/ST BUBBLE)

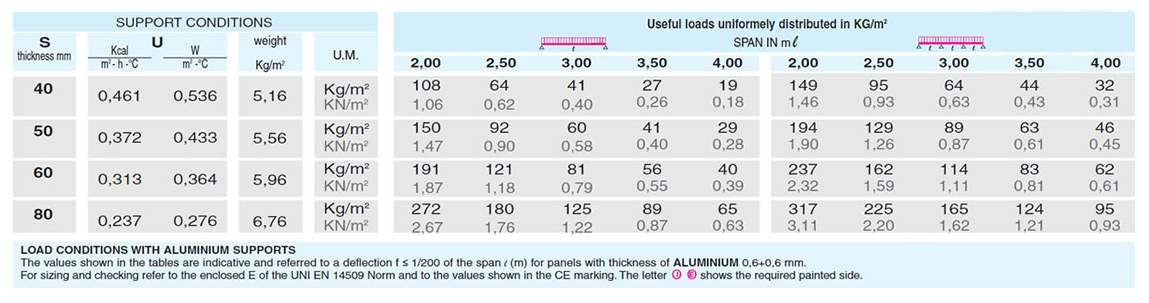

SUPPORT CONDITIONS
