STRATOS 4S HC THERMAL SYSTEM SOLAR
STRATOS 4S HC THERMAL SYSTEM SOLAR

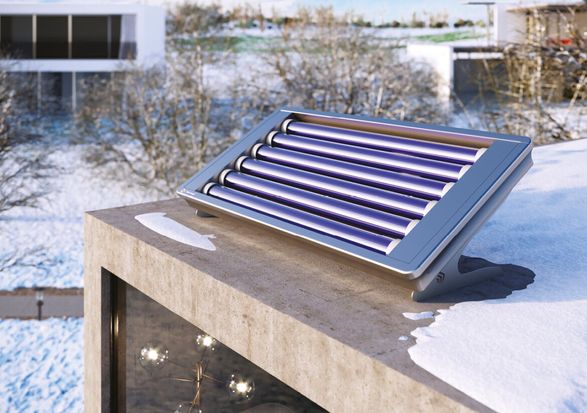

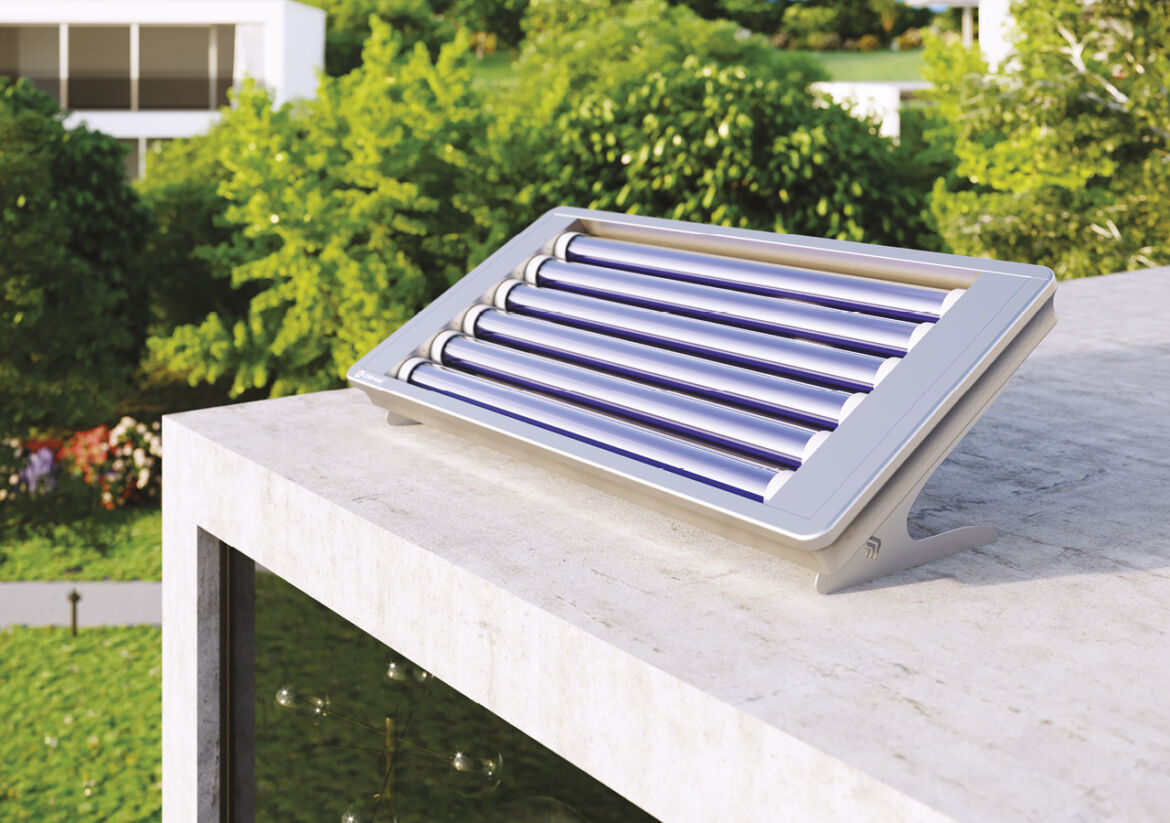

High efficiency compact solar thermal system
The STRATOS® 4S HC system, represents the latest generation of Cordivari compact solar systems.
INFORMATION
BRAND
Cordivari
PRESSURE ACCUMULATION
7.5 bar
FEATURES
- Solar Keymark
- Heat Manager
CHARACTERISTICS
-Domestic Hot Water Production -Integrated storage -Electrical resistors as standard -Heat Manager system as standard -5 year guarantee
-Compact solar system with natural circulation
PRODUCT TYPE
Solar Panel
MAX TEMPERATURE
100°C
PRODUCTION
Made in Italy
MIN. TEMPERATURE
-20°C
WARRANTY
5 years - See general sales and warranty conditions.
HEAT CONTROL
Thanks to its patented HEAT CONTROL technology, the systems allows to quickly accumulate all the captured energy, managing to retain it for long time without dispersion and risk of over temperature or freezing during the winter months.
PITCH INCLINATION
10° - 70°
DOWNLOAD
↓ Data Sheet
SYSTEM COMPONENTS
-Frame structure in marine grade anodized aluminum 15 um -6 bar safety valve -Fixing kit for flat surfaces and pitched roofs -Non-toxic heat transfer fluid -Integration electric heaters (n°4 for model 120 lt and n°6 for model 180 lt) with set point at 75°C -Automatic anti-stagnation system with high efficiency circulator and thermal switch -Electromechanical time switch
MAX PRESSURE INLET
4 bar
CONNECTIONS
2 threaded female connections of ½”.
STRUCTURE AND MATERIALS
-Frame structure in anodized Marine Grade aluminum. -Support and fixing kit in galvanized steel. Capturing system consisting of tubes with Sydney type vacuum technology with highly selective PVD coating and high vacuum grade (minimum 10 3 pa). -Primary accumulation circuit (water and glycol) in stainless steel AISI 304
THE FIRST SOLAR WATER HEATER
Stratos® 4S HC is the first high efficiency compact solar system with included electric integration. Thanks to the integrated electric heaters, the systems becomes a real solar water heater, able to offer always the maximum comfort, maximum safety and great savings in every season of the year. The electromechanical time switch device is included, for the rational use of the electrical integration.
HEAT MANAGER - SMART CONTROLLER
Stratos 4S HC system is equipped with the Smart Controller Wi-Fi HEAT MANAGER for the remote management of the electric heaters by smartphone IOS or Android.Thanks to this app it is possible to manage, to set and to monitor the functioning of the electric heaters easily from the mobile phone, by setting the temperature and the operating time slots. HEAT MANAGER is user friendly and intuitive. You just have to install the app and connect the smart controller to your home Wi-Fi network.
COMPACT AND HIGH EFFICIENCY SOLAR THERMAL SYSTEM
The HEAT CONTROL SYSTEM is the new active protection system against over heating of the STRATOS® 4S HC. Thanks to the patented solution for the dissipation of the excess heat through the same structure of the system, the new STRATOS® 4S HC is always safe against over temperature in periods of maximum solar radiation, even in the absence of DHW withdrawal. The system is equipped with sensors that activate a circulation of the primary exchange fluid, that dissipates the excess heat if excessive overheating is detected.
