Raynor Energycore Ec224 Garage Door
ENERGYCORE EC224 Garage DOOR
ENERGYCORE EC224 GARAGE DOOR
Sectional Polystyrene Thermal Door

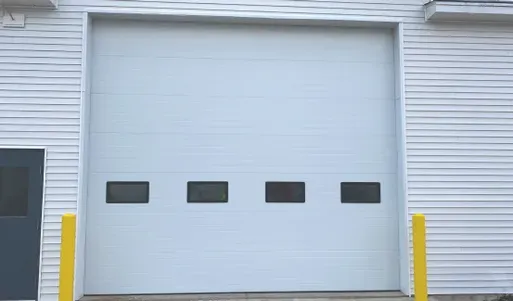

The EC224, a steel two-sided door, features a core of polystyrene insulation laminated between a 26-gauge interior steel and a 24-gauge exterior steel skin. The EC224 is available in white and is perfect for applications where thicker steel is specified.
FEATURES
QUICKDOCK™ SOLUTION
Raynor’s patent pending QuickDock is engineered to decrease downtime and increase safety during repairs and maintenance. It comes complete with preassembled, palletized sections and the counterbalance assembly is mounted only 16” above the header. QuickDock is available on orders of 36 doors or more.
WEATHERLOCK™ & POLYSTYRENE INSULATION
Expanded polystyrene insulation provides good thermal efficiency, while an Arctic grade bottom weatherseal keeps out the elements.
WINDOW OPTIONS
Select either 24″ x 8″, 24″ x 12″, or 34″ x 16″ and choose from a variety of glass options to suit any application.
THICKER EXTERIOR STEEL
A heavy duty 24-Gauge exterior steel is perfect for meeting job specific requirements without sacrificing the benefits of Raynor EnergyCore Series.
GUNITE SURFACE TEXTURE AND DECREASED GROOVE SPACING
EC200 comes in 2 panel styles, flush and pencil groove, with decreased groove spacing for an updated, refreshed look.
TRACK, SPRINGS & HARDWARE
Raynor EnergyCore Series doors come packaged with the right combination of track, springs and hardware to precisely match your door’s size and application. A QuikClip™ pre-assembled track option is also available.
INFORMATION
BRAND
Raynor
IECC THERMAL PERFORMANCE
R-value* = 10
MODEL
Raynor EnergyCore EC224
MATERIAL
Steel
PRODUCT TYPE
Commercial Sectional Insulated Steel Garage Doors
COUNTERBALANCE SYSTEM
-Type : Torsion Springs
-Springs : Spring Inner Diameter: 2-¼”, 3-½”, or 5-½”; Duplex or High Cycle (30K, 50K, 100K); Optional Black Powder Coat
-Shafts : Tube (13-Gauge) or Solid (D-Shaft, 1” Keyed, 1-¼” Keyed)
SIZE
24’0” x 16’0” Max Opening
SECTION JOINT
Tongue & Groove
SEALS
-Bottom Seal (3”, 4” EPDM, or 3” Yellow) -Optional Header Seal
NSULATION
Expanded Polystyrene (10.0 R-value*)
PANEL CONFIGURATION
Pencil Groove and Flush
GAUGE - STEEL
- Exterior : 24-Gauge
- Interior: 26-Gauge
COLORS
White
SURFACE TEXTURE
Exterior and Interior Ribbed Gunite
SECTION THICKNESS
2″
STILES
18-Gauge
TRACK
-Type : Normal Headroom, Rear Mount Low Headroom, Front Mount Low Headroom, Lift Clearance, Vertical Lift, Incline, Contour, and QuikClip™ Pre-Assembled Track Options
-Finish : Galvanized
-Size : 2” and 3”
-Gauge : 13 and 16 gauge
TRUSSING
-Wind Load : 20 P.S.F. Tested/13.3 P.S.F. Design Load (standard)
-Material : U-bar (18-Gauge or 20-Gauge)
-Sizes : 4″, 6″, or 8″
HARDWARE/ACCESSORIES
- Hinges : 11, 13, 14-Gauge or Hybrid
- Rollers : Standard (2″ or 3″) or Heavy Duty (2″ or 3″)
- Finish : Galvanized
- Lock : Interior Slide Lock and Exterior Lock Bars
- Hanger Angle : 11, 13, 16-Gauge Galvanized, or 13-Gauge White Powder Coated
-Posts : Swing-Up or Carry-Away
SECTIONS WINDOWS
Select 24” x 8”, 24” x 12”, 34” x 16”
TECHNICAL INFORMATION
| MAXIMUM DOOR WIDTH | NUMBER OF PANELS | DOOR HEIGHT | NUMBER OF SECTIONS |
|---|---|---|---|
| 9’-2” | 2 | 8′ | 4 |
| 12’-2” | 3 | 10′ | 5 |
| 16′-2″ | 4 | 12′ | 6 |
| 20′-2″ | 5 | 14′ | 7 |
| 24′-2 | 6 | 16′ | 8 |
