Sunroom S.40 Folding Door

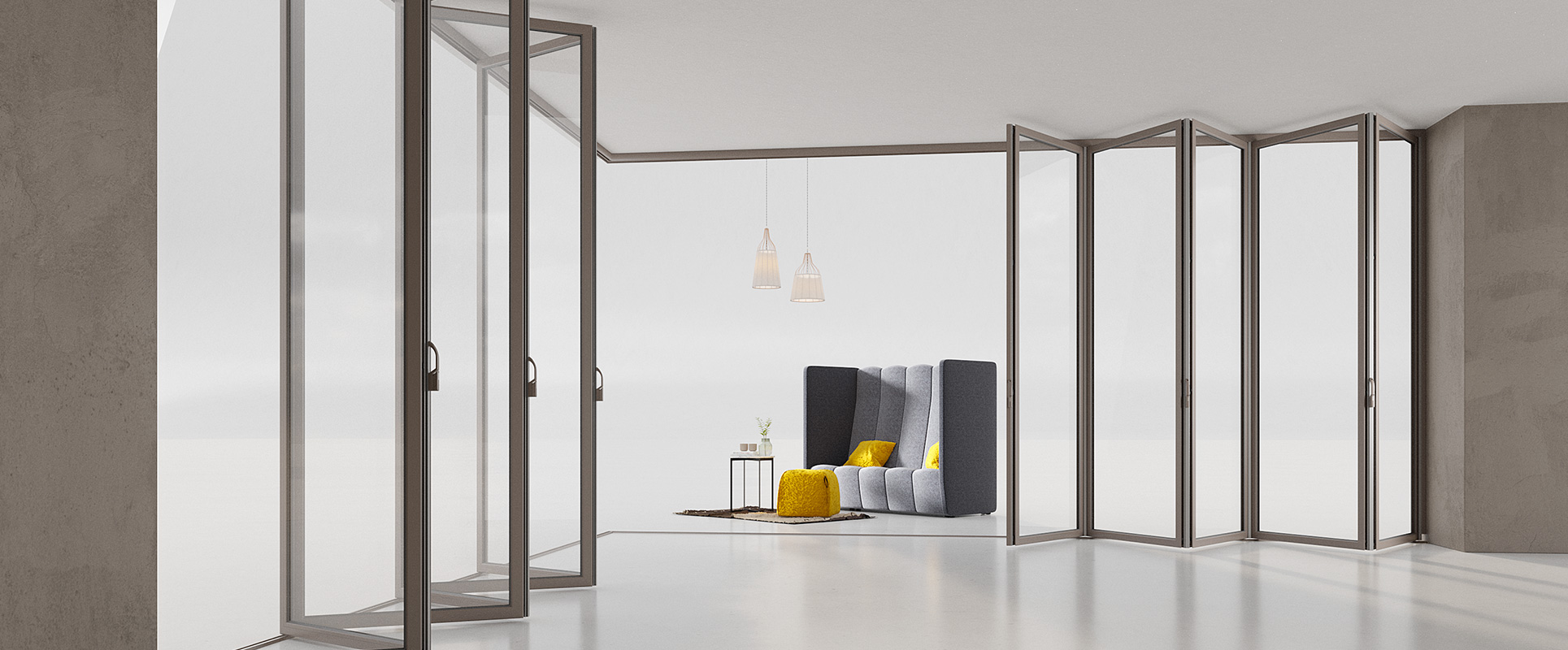

Each glass panel connects to the others, rotating and gathering in a lateral pack, all inside a single track, offering a wide and free opening to be able to enjoy the fresh air and abundant natural light, not blocked by the fixed glass panels of traditional glass systems.

SLIDING

- Bottom
- Top

PANEL DIMENSIONS

- Maximum Width : 1000 mm
- Maximum Height : 3000 mm

HEIGHT OF BOTTOM TRACK (STANDARD)

- With Bottom Sliding : 70 / 63 mm
- With Top Sliding : Lowered 25 mm / Recessed 10 mm (Recess 25 mm)

CERTIFICATION

-Water Tightness Certification - En 1027 – En 12208 : CLASS 7A
-Air Permeability Certification En 1026 – En 12207 : CLASS 3
-Wind Resistance Certification En 12211 – En 12210 : CLASS A2

CHARACTERISTICS

Folding door with a robust structure made of modular elements in non-thermal aluminium profiles. Each panel connects to the others by rotating and gathering in a lateral pack, all within a single track, offering a wide and functional opening with a minimum footprint. The ergonomic handle is practical and easy to use.

DETAIL

Normally, the panels hang from the upper track using rollers with ball bearings covered in a synthetic material, while the lower part has rolls that slide along an aluminium track on the floor, or recessed and made of stainless steel. If the upper structure is not strong enough to support the weight, the S.40 folding door can also slide with the rollers on the bottom track. The unique hidden hinges ensure a pleasant and original appearance and provide good protection against the weather.

ADDITIONAL INFORMATION

Ideal for closing off your patio, balcony, or bioclimatic pergola, but also for businesses such as Barss, restaurants, or ice cream shops, the S.40 folding door is easy to use and very practical. It can be packed to either the left or right, or, in cases with large dimensions, divided on both sides.
