Heroal Ds Drainage System
HEROAL DS DRAINAGE SYSTEM
HEROAL DS DOOR SYSTEMS

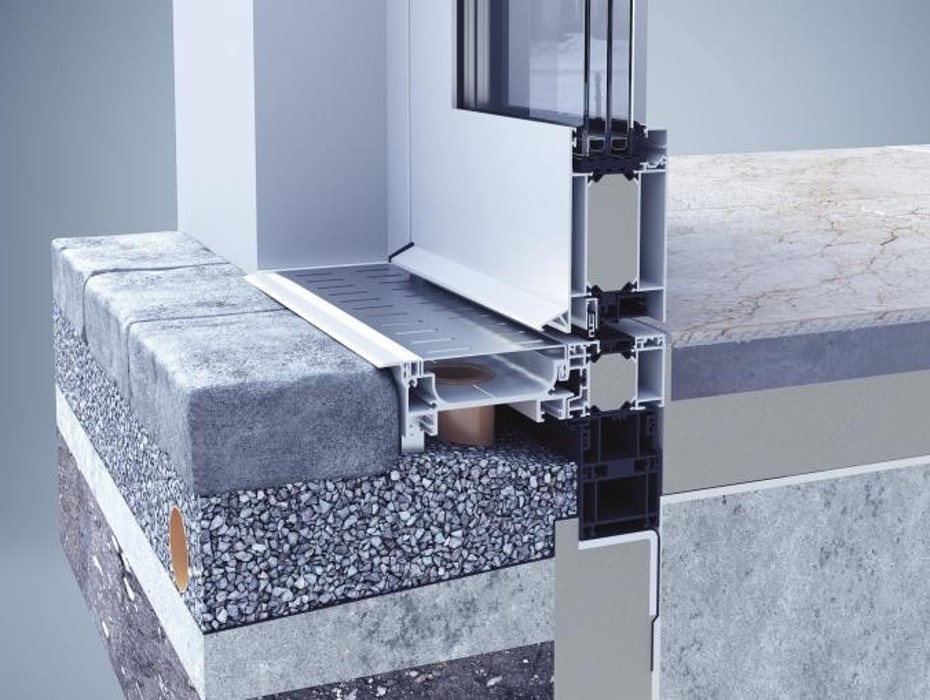

Integrated Linear Surface Drainage System
To implement accessible thresholds properly in the area of door elements while offering protection from moisture damage indoors, particular measures need to be taken.
One reliable solution is the use of a drainage system that discharges surface water without any back-up. When choosing the correct drainage system, in addition to the expected amount of rainfall, the finish of the exterior surface is an important consideration in planning the necessary removal of surface water for smooth water discharge.
INFORMATION
BRAND
Heroal
BACK-UP
Surface water is drained without any back-up
VERSATILE DOOR SYSTEM
This system combines a wide variety of frame and sash profiles with different face widths and designs with a reliable and efficient manufacture, thanks to standardised machining and the use of standard parts and tools.
SECTIONAL DRAWINGS
PERFECT THERMAL INSULATION
The unique insulating strip geometry with 100 % foam filling of the profiles provides for maximum robustness and minimal loss of heat. Thanks to the modular system, thermal insulation can be easily adapted to every building project.
PRODUCTION
Made in Germany
DRAINAGE PERFORMANCE
Approx. 200 l/m as per DN 50 standard
PRODUCT TYPE
Drainage System
STEEL COVER
High-grade steel cover in various design options
THRESHOLD VARIANTS
With approx. 160 threshold variants, incl. A zero barrier with patented, integrated drainage (heroal ds), different technical requirements and customer preferences can be met, independent of opening type and design.
PANIC AND EMERGENCY DOORS
With the certified system heroal d 72 for emergency exits and escape routes, 1- and 2-sash panic and emergency doors or escape exits according to the german standards din 179 / 1125 can be created
DOWNLOAD
↓ Heroal Ds - Brochure
DOOR SYSTEM
French door and lifting-sliding door system.
DETAILS
-Solutions for all openings with large surface areas in the entrance door, French door and lifting-sliding door system product sectors -Heroal systems can be combined in many ways, ensuring planning security
-Effortless integration of structures in both new builds and renovations

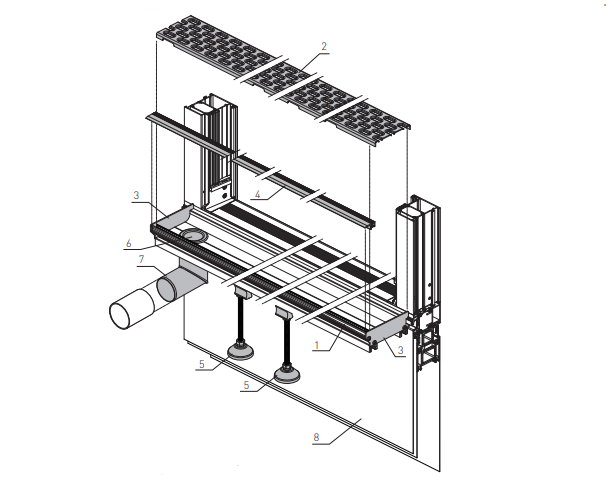

SYSTEM COMPONENTS OF DRAINAGE SYSTEM
- 1. drainage profile
- 2 stainless steel drainage grid
- 3. end cap of drainage profile
- 4. cover profile
- 5. adjustable feet
- 6. 3-part screw fitting, DN 50
- 7. 87° pipe bend, DN 50
- 8. EPDM-sealing sheets
DRAINAGE SYSTEM
The new, innovative heroal DS drainage system provides building developers, planners and architects with planning security, versatility and cross-trade system solutions.
PERFORMANCE CHARACTERISTICS
As this door system has best ratings in terms of sound insulation, burglary resistance, tightness against driving rain, impact resistance, thermal insulation, wind resistance and air permeability, it is perfectly suited for use in building projects with high technical requirements and continuous operation (heavy duty).
