Aluplana Aluminium Flooring
ALUPLANA ALUMINIUM FLOORING
ALUPLANA ALUMINIUM FLOORING

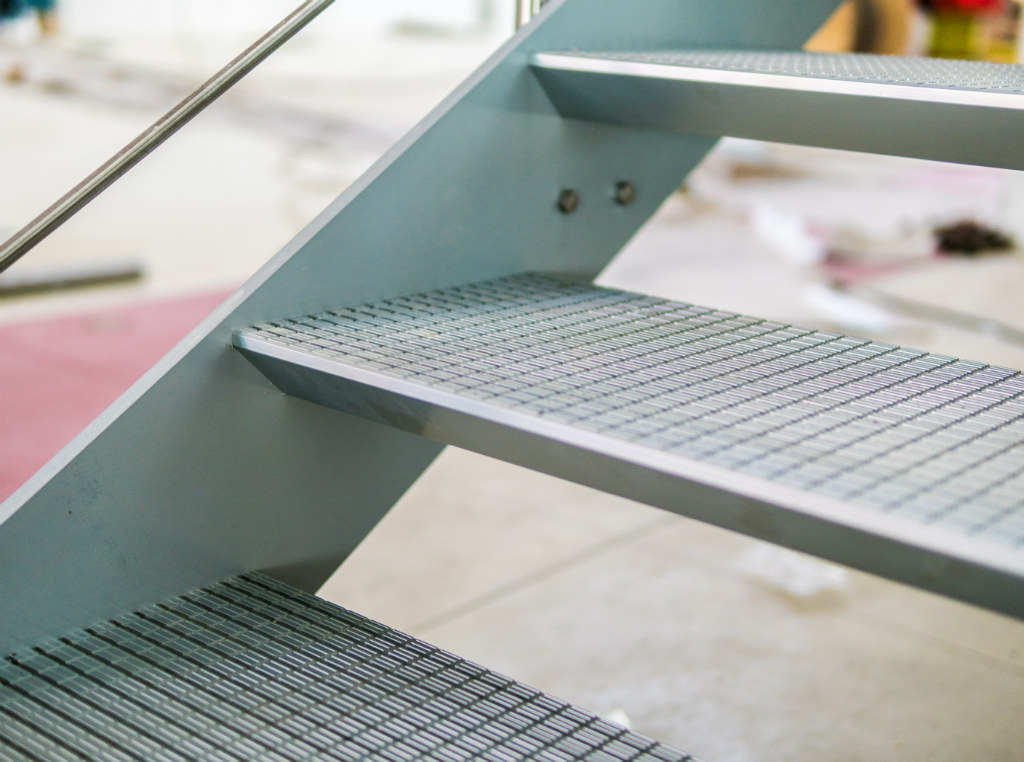

Aluplana is a demonstration of how a technical walking surface can present an elegant look that uniquely adorns a platform, a staircase, a pedestrian walkway.
The reflections of Aluplana's sand and silver gray finishes add distinction to surfaces with certified safety characteristics (anti-slip, anti-vertigo, draining capacity).
Aluplana is a modular system of aluminium extrusions particularly suitable for the construction of overhead surfaces for pedestrian traffic, with non-slip, heel proof and anti-vertigo characteristics.
With regard to the undeniable aesthetic value, Aluplana adds the advantages of adaptability to different environments, ease of assembly and no maintenance.
Our product comes with a draining or blind finish, and with an anodized natural silver surface, or painted with RAL colours. As for its qualities, our product represents a valid alternative to iron and stainless-steel gratings.
INFORMATION
STANDARD MEASURES
These are the standard measures of width and height (the length may vary)
- Platforms : 400 x 40 mm
- Platforms : 100 x 40 mm
- Terminals : 43 x 40 mm
- Steps : 345 x 55 mm
- Steps : 300 x 40 mm
BRAND
Aluscalae
COLLECTION
Aluplana
MATERIAL
Aluminium
PRODUCT TYPE
Flooring
CHARACTERISTICS
This modular element, which is available in two widths, allows any surface to be covered, also thanks to the possibility of varying the length up to a maximum of six metres. A high anti-vertigo and non-slip characteristics (R10 certified efficiency level), as well as drainage capacity.
DOWNLOAD
ā Data Sheet
PRODUCTION
Made In Italy
COLORS
-Silver Grey -Sand Grey
DETAILS
These elements are always available and can be supplied, cut to size, given a finish and made ready for installation, then delivered within a short period of time.
TECHNICAL DRAWING
APPLICATIONS
Aluplana is the ideal solution for the implementation of:
-Raised walkways, floating floors, mezzanines and transit routes -The flooring of modular walkways -Landings and steps -It is particularly versatile in the use of commercial interiors and common spaces, such as shops, bars, restaurants, schools, religious buildings, public offices, etc. -Some specific applications have clearly revealed the ability of the Aluplana system to respond to special needs, such as pedestrian/cycle footbridges, ramps facilitating the removal of architectural barriers, walkways for archaeological sites, exhibition areas and museum spaces.
