STFE GLULAM STRUCTURES
STFE GLULAM STRUCTURES
Structural and transparent innovative skin for building envelope.
INFORMATION
BRAND
Sergeferrari
WEIGHT
EN ISO 2286-2 : 900 g/m²
PRODUCT CODE
7902
WIDTH
155 cm
MATERIAL COMPOSITION
- Fluoropolymer

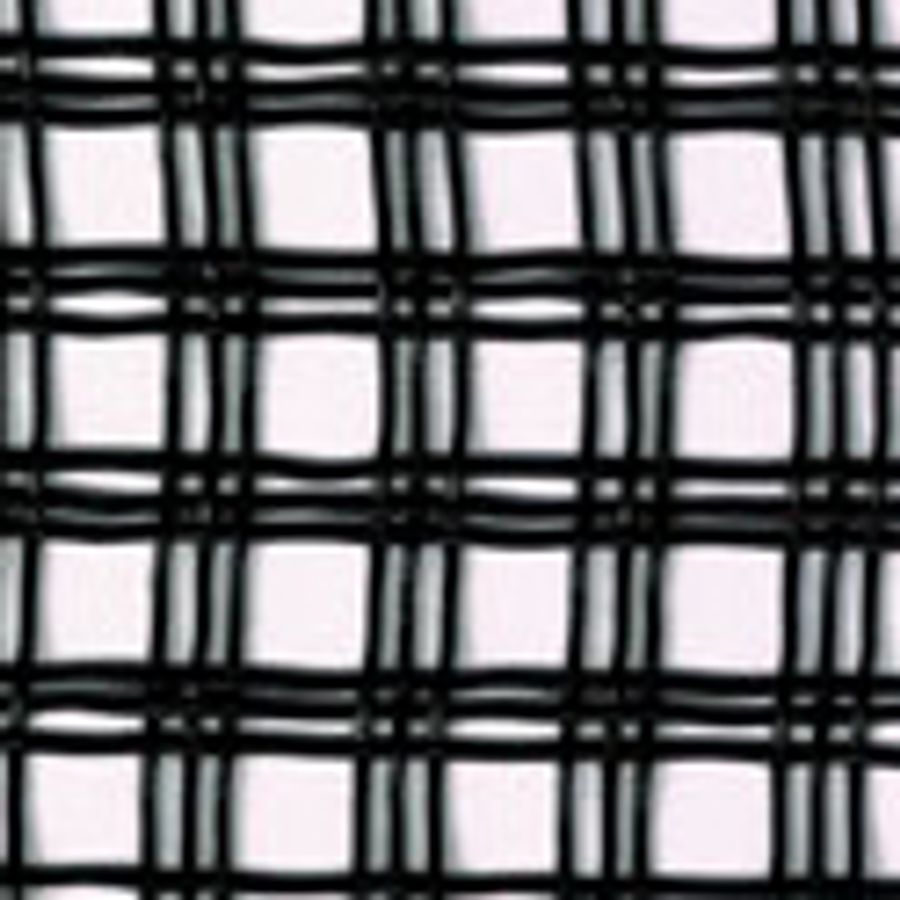

- Inner Surface : Polyarylate Mesh
- Outer surface : Transparent hybrid
TRANSPARENCY AND SUNGLASS EFFECT
As a building skin, STFE disappears and becomes transparent to leave room to the horizon.
UV TRANSMITTANCE
- (T uv-A) : 57,8%
- (T uv-B) : 52,3%
TENSILE STRENGTH (WARP/WEFT)
EN ISO 1421 : 400/400 daN/5cm
TEAR STRENGTH (WARP/WEFT) ELONGATION AT BREAK (WARP/WEFT)
DIN 53.363 : 80/80 daN/5cm 4,6 / 3,5%
CREASE FOLD RESISTANCE
ASTM D4851 : 100%
FLAME RETARDANCY
Euroclass : B, s1-d0
DIRECT TV (VIEW THROUGH)
Tv n-n=46%
VISIBLE LIGHT REFLEXION (RV)
7%
HEAT TRANSFER COEFFICIENT (VERTICAL/HORIZONTAL)
5,6 / 6,4 W/sqm.°C
TRANSMITTANCE
Visible Light Transmittance (Tv) : Tv n-h=53%
COLOURS
Stfe : 7902-51204
SOLAR TRANSMITTANCE (TS)
54%
SOLAR REFLEXION (RS)
7%
ACOUSTIC WEAKENING INDEX
~12 dB A
WARRANTY
10 year warranty
PAR PHOTOSYNTHETIC ACTIV RADIATION
50% (all wavelengths)
DETAILS
- Certifications : ISO 9001
- Labels : ISO 14001
NATURAL LIGHT AND UV INPUTS
- Zoo & botanical garden
- Winter garden
- Stadium
NO SENSE OF ENCLOSURE IN PUBLIC BUILDINGS
- Transportation walkway
- Shopping mall
- Skylight
- Atrium
ADVANTAGES
STRUCTURAL STRENGHT
The polyarylate mesh provides structural strength for large free span and minimizes secondary structure. Easier installation and reduced environmental impact.
TRANSPARENCY
As a building skin, STFE disappears and becomes transparent to leave room to the horizon.
LIGHT TRANSMISSION
50% light transmission - Natural light and sun glass effect for user's comfort and to enable plant growth thanks to UV.
