TERMOPARETI ® BUBBLE PANELS
TERMOPARETI ® BUBBLE PANELS
They have been studied to create original architectural impressions and they can be used in industrial, commercial, residential building and public utilities for the new buildings and for restructures.
INFORMATION
ARCHITECTURAL IMPRESSIONS

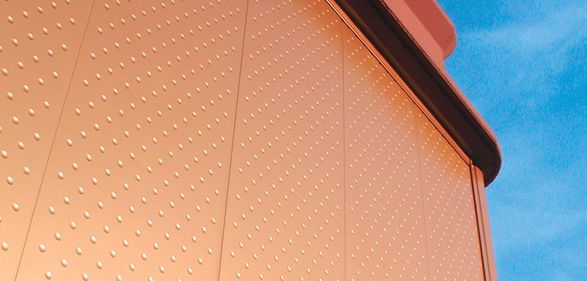

The panels TERMOPARETI ® BUBBLE (patented) are avaible in different types and are unlike the traditional panels. In fact they have been studied to create original architectural impressions and they can be used in industrial, commercial, residential building and public utilities for the new buildings and for restructures.
BRAND
Elcom System
THICKNESS
40-50-60-80-100 mm.
STABILITY
TERMOPARETI ® BUBBLE panels (patented) are equipped with a continuous profile in PVC with special interlocking, on the female side, to give greater stability to the fastening and to avoid detachment of the sheets from the insulation, both during handling and during assembly.
MATERIALS
The imprints are negative respective the external side of the support and they can be realized on different materials such as galvanized and/or prepainted steel, aluminium, stainless steel and copper.Elements with thermic cut such as rounded and right corners, edges and spherical connections, are finishing that complete and bring out the TERMOPARETI ® BUBBLE
PRODUCT TYPE
Panels
PRODUCTION
Made In Italy
INSULATION
-PUR Density 40 Kg/m3 – B1 DIN 4102 -λ = 0,0020 Kcal/mqh° C
USE
Industrial
STRUCTURE
Metallic
SUPPORTS
- Steel And Prepainting – S 250 Gd+z Uni En 10147
- Alluminium – alley 3105 physic estate h46 en 508/2
- Copper – Cw 024a – R240 En 1172
- Acciaio Inox – Aisi 304 2b Uni 10372
DETAILS
TYPE
SUPPORT CONDITIONS
