VENTILATED FACADES
VENTILATED FACADES
You want full flexibility in designing the shape and colour of your facade?
Then CELLON® is the material you have been looking for for so long. Whether in the classic (large format) or stripes (small format) version, coated or with a decor surface, you will be able to realize your object according to your ideas.
INFORMATION
BRAND
Bruag
PRODUCT TYPE
Ventilated Facades
THICKNESS
10 mm / 8 mm
DOWNLOAD
↓ Technical Sheet
MATERIAL

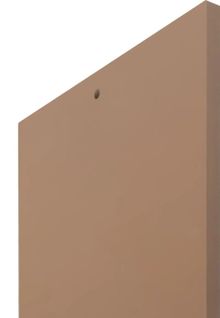

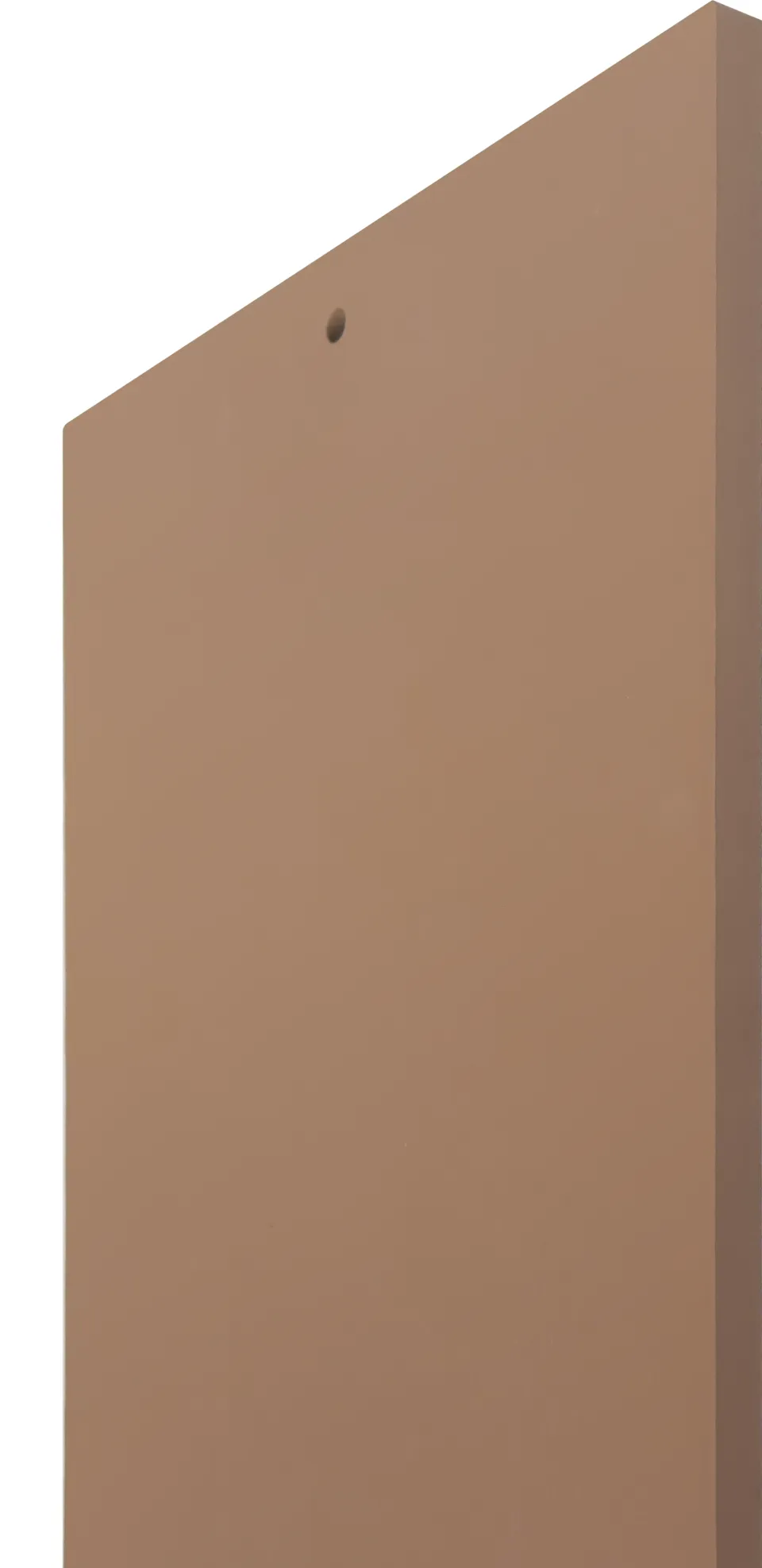

Our CELLON® panel is a high-pressure laminate panel (HPL Compact or solid core panel) consisting of 70% cellulose webs and 30% phenolic resin. The extremely weather and frost-resistant material is ideal for outdoor applications. The HPL panel convinces with absolute moisture resistance and minimal expansion. In contrast to conventional HPL panels, CELLON® is characterized not only by the variety of shapes and colors available, but above all by its natural appearance.
The colour is applied directly to the resin and thus the top layer, which means that the sterile resin surface does not stand out, but rather the selected color concept is ideally emphasized.
FORMATS

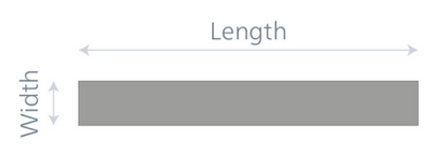

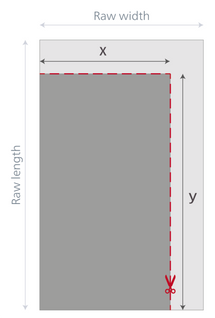

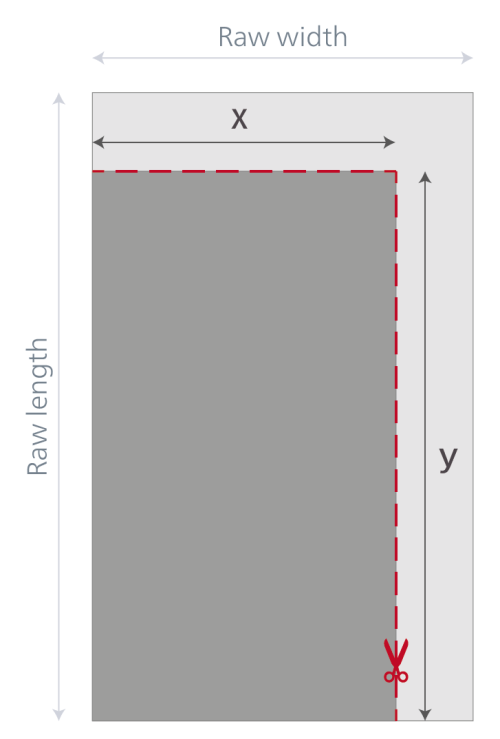

The raw panels are project-specifically cut to the desired dimensions using laser technology (including drill holes). You choose the width (x) and the length (y) of the panels individually.
Do you want round cuts or additional cut-outs? Simply draw them in your DXF plan and they will be manufactured to size. Please consider the following raw panel formats for waste optimisation:
LARGE-FORMAT PANELS - CELLON® CLASSIC
| WIDTH | LENGTH |
|---|---|
| 1200 mm | 2400 mm |
| 1280 mm | 3000 mm |
| 1300 mm | 3050 mm* |
| 900 mm | 3600 mm |

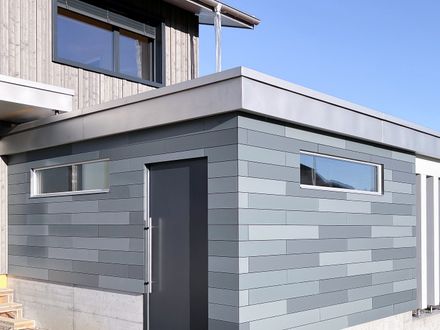

SMALL-FORMAT PANELS - CELLON® STRIPES
| WIDTH | LENGTH |
|---|---|
| 145 mm | 1195 mm |
| 145 mm | 1795 mm |
FEATURES
-Individual and precise cutting thanks to laser technology -Free choice from over 3,000 possible colours -Cost-effective thanks to optimal waste optimization in the production process -Short delivery times due to interlocking processes
DESIGN

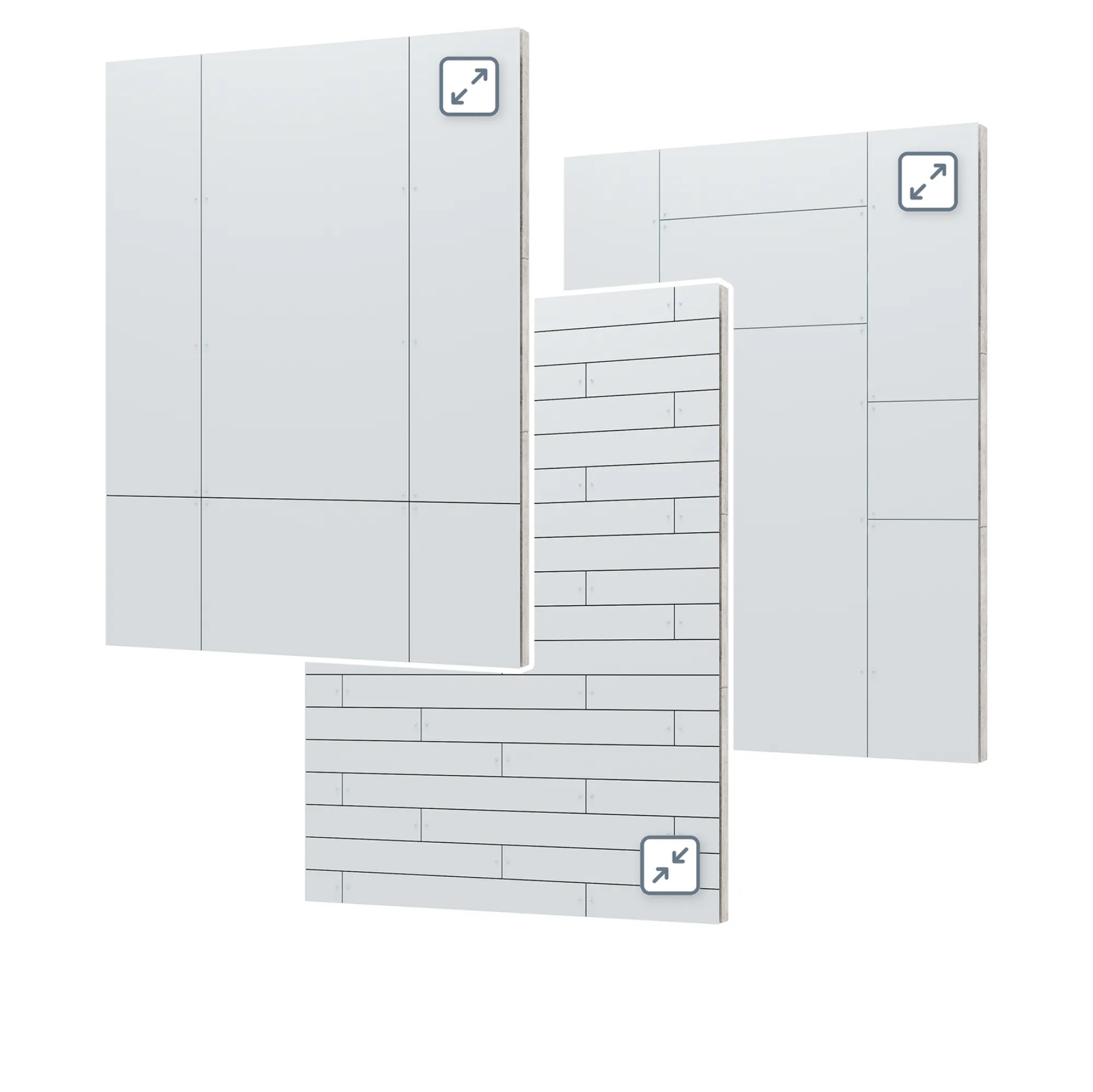

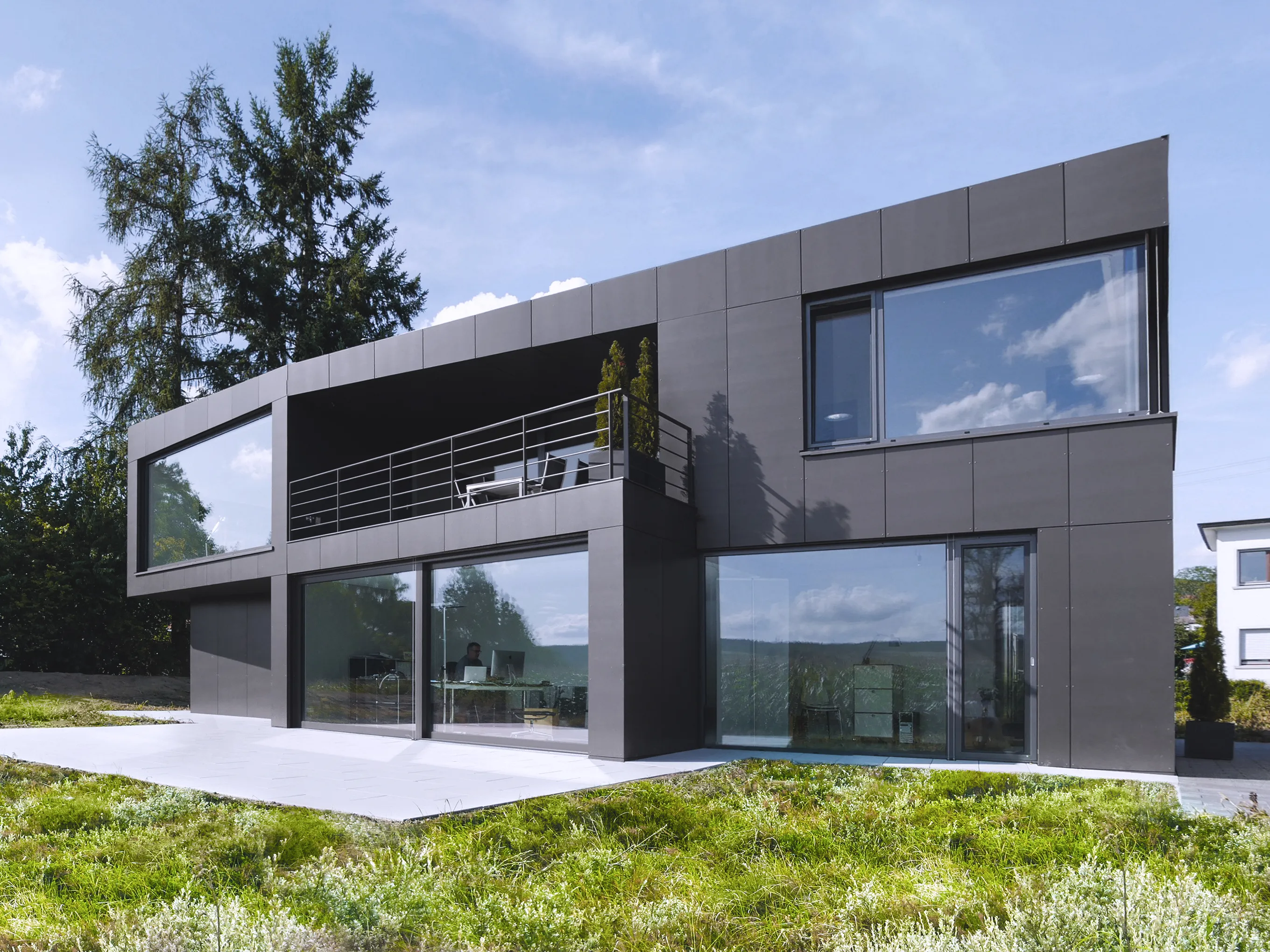

Thanks to the precise laser cutting of the CELLON® panels, there are hardly any limits to the facade design. In addition to large-format panels for elegant architecture, small-format CELLON® stripes can also be used convincingly for the effect of the joints - playful or structured.
CONSTRUCTION SOLUTIONS
Thanks to their structural separation of heat and weather protection, ventilated facades made of CELLON® are particularly energy-efficient, durable and economical. The rear ventilation space not only ensures a significant reduction in noise emissions compared to other wall structures, but also offers summer heat protection. CELLON® facade panels can be attached to all conventional wood and metal substructures.

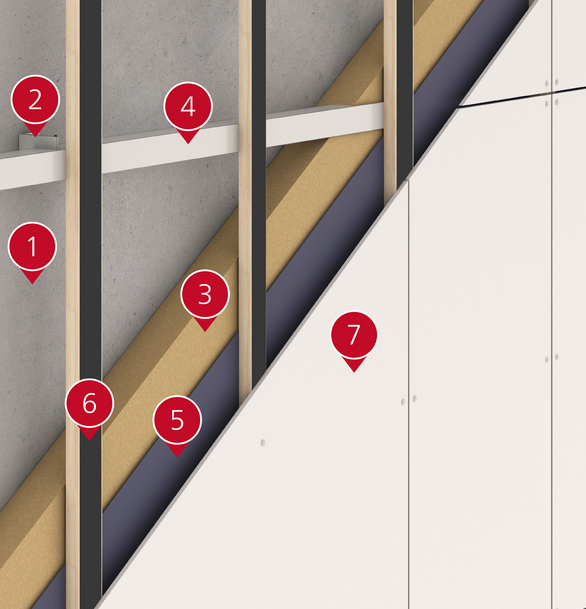

VENTILATED FACADE WITH WOODEN SUBSTRUCTURE
1. Wall
2. Aluminium Bracket
3. Insulation
4. Aluminium Angle
5. Wind Barrier
6. Batten With EPDM rubber backing strips
7. CELLON® Facade Panles

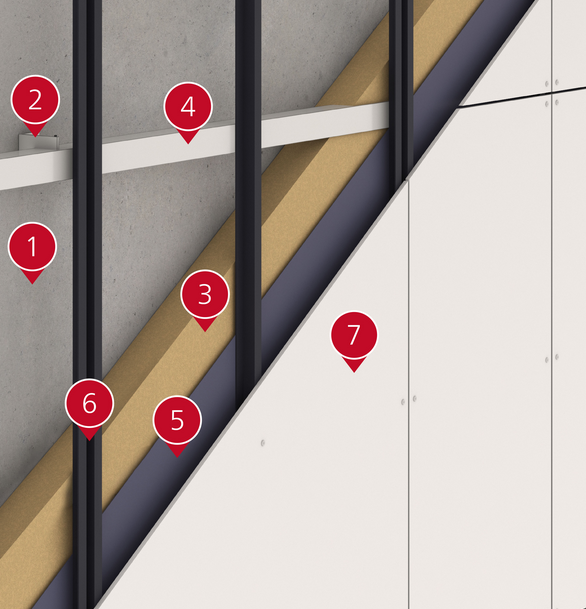

VENTILATED FACADE WITH METAL SUBSTRUCTURE
1. Wall
2. Aluminium Bracket
3. Insulation
4. Aluminium Angle
5. Wind Barrier
6. Metal Profile
7. CELLON® Facade Panles
COLORS AND SURFACES
A special coating technology allows you to freely choose from over 3,000 colours in a modern, semi-matte finish or in numerous decors with a wood or stone look.

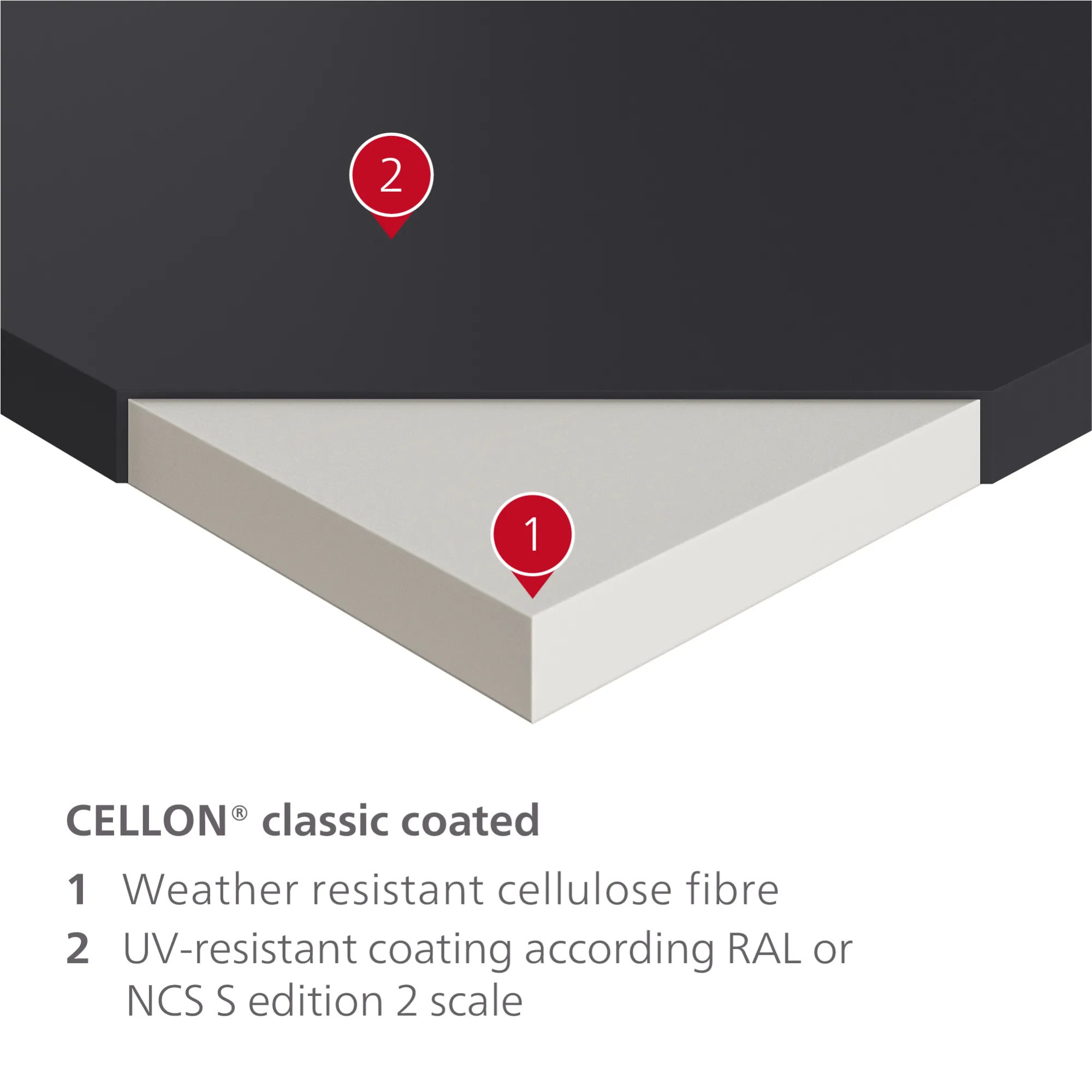

Classic Coated

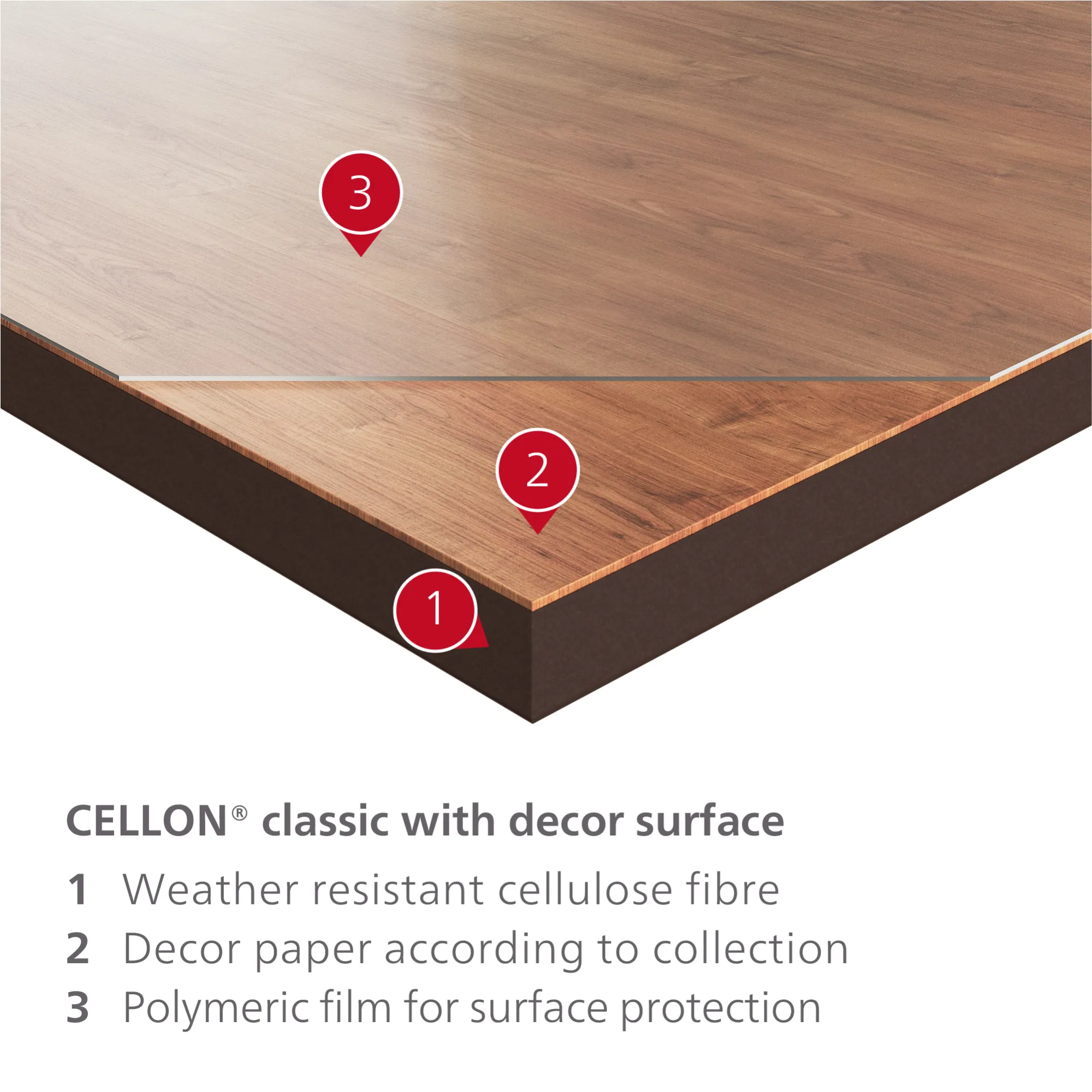

Classic With Decor Surface
