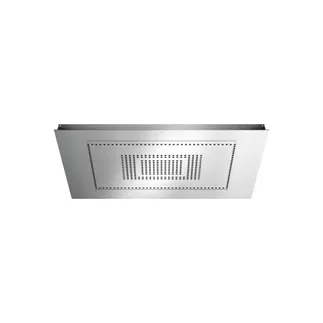

Dornbracht Rain Sky M Rain Panel Shower
RAIN SKY M RAIN PANEL SHOWER
RAIN SKY M RAIN PANEL SHOWER FOR RECESSED CEILING INSTALLATION
INFORMATION
PRODUCT NUMBER
-Stainless Steel : 41 100 979-85
-Brushed Stainless Steel : 41 100 979-86
PRODUCT TYPE
Shower
PRODUCTION
Made in Germany
CONSTRUCTION TYPE
Ceiling Mounting
FINISH TYPE
Stainless Steel
FEED PIPE (HOT/COLD)
2x DN 20
EQUIPOTENTIAL BONDING
1 x 4mm2
ELECTRICAL
Customer must provide a light switch outside the shower area (outside safety zone 2 under DIN VDE 0100, Part 701)
EAN NUMBER
-Stainless Steel : 4029011428333
-Brushed Stainless Steel : 4029011432989
PRODUCT CONCEPT
Series-various
SYSTEM OF PROTECTION
IP 65
PRODUCT TYPE BU
Outlet point
FEEDER
3 x 1.5mm2 NYM
ELECTRICITY SUPPLY
220-240 V AC/DC, OHz, 50-60 Hz, 88 W
EARTH-LEAKAGE
Earth-leakage circuit-breaker 30 mA provided
FEATURES
- Rain panel with 3 different flow modes
- Head spray 200 x 160mm, 99 nozzles
- Body spray 360 x 280mm, 142 nozzles
- Rain curtain 720 x 540mm, 124 nozzles
- Cover plate, stainless steel 1020 x 820 x 2 mm
- 3x flexible connection hose 1/2" - female thread
- Pre-fitted, stainless steel enclosure 990 x 790 x 128 mmmm
PRESSURE
- Minimum flow pressure 2 bar
- Max. flow pressure 4 bar
WEIGHT
50kg
HEAVY-DUTY BOLT
4x M 10 heavy-duty bolt
FLOW AT 3BAR FLOW PRESSURE IN CONJUNCTION WITH XTOOL
43l/min
TECHNICAL DATA
2 light gaps, electronic ballast, T 5 fluorescent tubes, 39 watts - light colour 830
COLOURS
MINIMUM FLOW RATE
35 l/min (all three rain modes together)
DETAILS
2 hinges and safety chains
RECOMMENDATION
For choosing the drainage, taking into consideration the discharge of all the products in the shower, the specific demand needs to be assessed. Recommendation: Floor drain (connected rating) = 1.5l/sec, drainage rate DN 70
RECOMMENDED WATER HARDNESS
6-7 °dH - if the water is harder, integrate a water softener that uses the ion exchange principle into the feed pipe.
OPTIMUM CHOICE
For the optimum choice of hot water storage device - taking into consideration additional drawing-off points and the frequency with which RainSky M is used - the specific demand needs to be assessed.
