Irsap Step V Radiator
STEP V RADIATOR
STEP V RADIATOR
Designed by Antonio Citterio
Step_v is the range of “vertical” products available in numerous sizes and heating powers.
Nine models have been designed for the complete adaptability to every type of room and the satisfaction of every need.
The extension of the range ensures ideal comfort in every situation.
information
CERTIFICATIONS
FEATURES
- Valves Included
- Hydraulic radiator
STANDARD EQUIPMENT
- Wall fixing systems the same finish as the radiator
- 2 hidden vent valves of 1/2” and valve caps
- Pre-mounted hydraulic connection kit in the same finish as the radiator, complete with couplings for copper fittings (diameter 12, 14 and 15 mm), and multilayer pipes (14 x 2 thick and 16 x 2 thick)
MATERIAL
Aluminium
USE
Heating
HEIGHT
600 mm
WIDTH
670 mm
PIPES
Flattened pipes in aluminium, 70 mm height

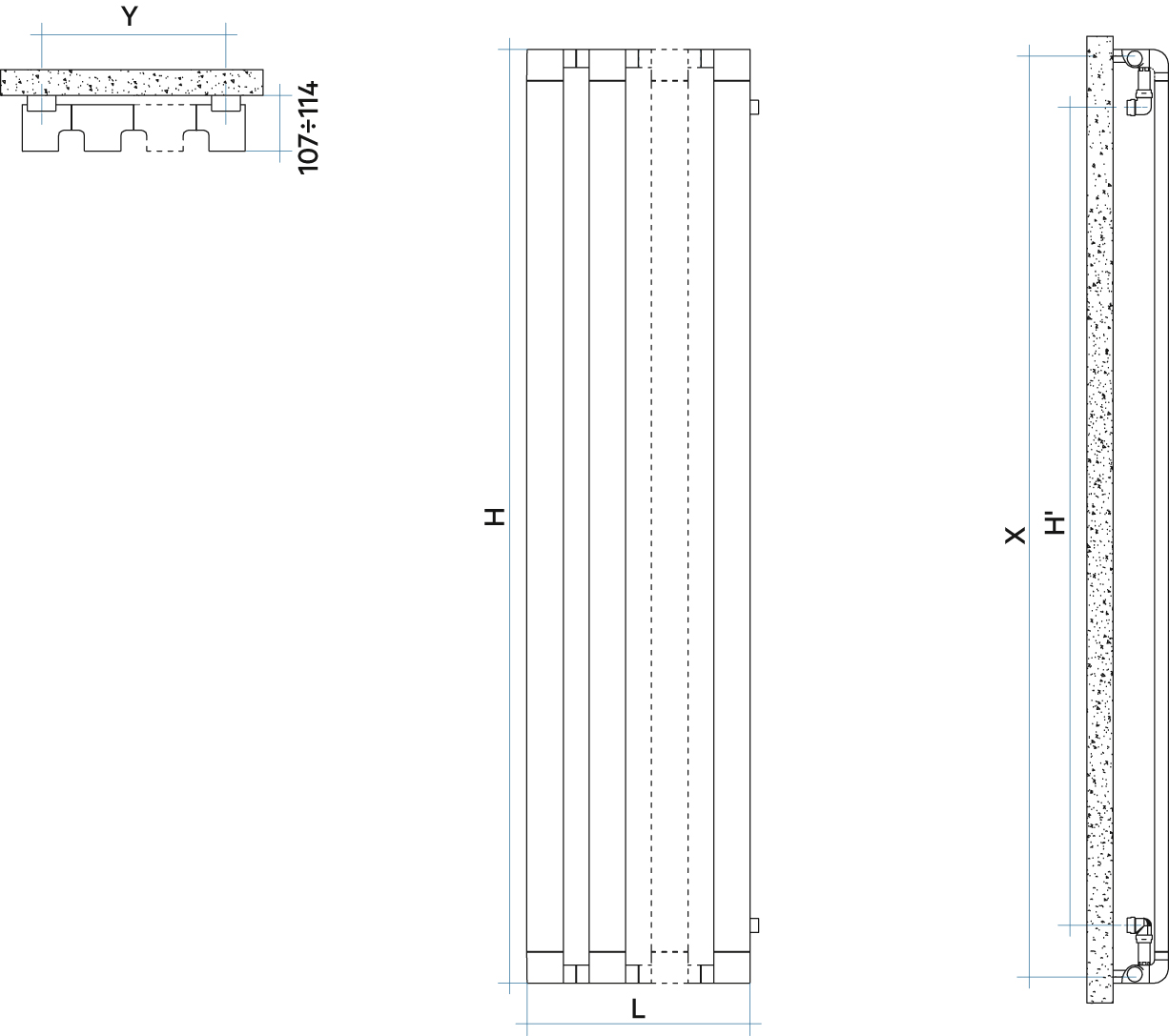

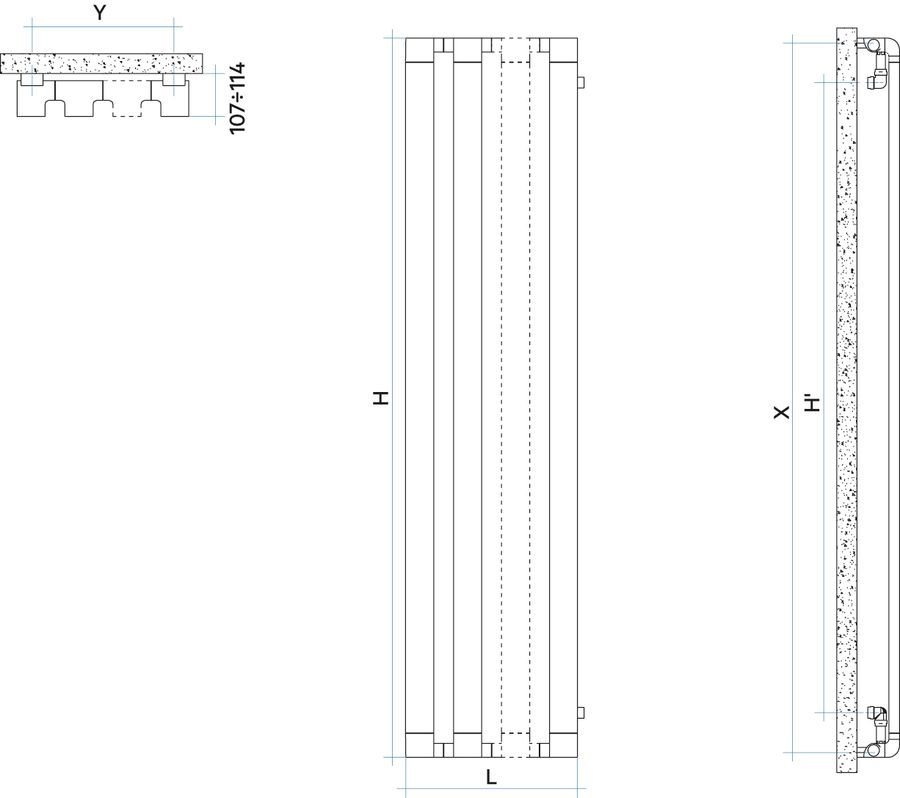

TECHNICAL DRAWING
PRESSURE
Maximum working pressure 6 bar
TEMPERATURE
Maximum working temperature 95°c
MODELS
- Step_v_0600_06 El.
- H. 600 Step_v_0600_08 El.
- H. 600 Step_v_0600_10 El.
- H. 1800 Step_v_180_04 El.
- H. 1800 Step_v_180_06 El.
- H. 1800 Step_v_180_08El.
- H. 2000 Step_v_200_04 El.
- H. 2000 Step_v_200_06 El.
- H. 2000 Step_v_200_08 El.
COLORS
-Quartz 1 -Beige Cream -Standard White -Ivory - RAL 1013 -Manhattan Grey -Red - RAL 3000 -Brown - RAL 8017 -Claret - RAL 3003 -Orange - RAL 2004 -Bluish Lilac - RAL 4005 -Woodland Green - RAL 6005 -Green Grass - RAL 6018 -Melon Yellow - RAL 1028 -Black - RAL 9005 -Pearl White -Edelweiss White -Sablé -Quartz 2 -Sunstone -Tobacco Brown -Flame Red -Azurite 3 -Medium Grey -Titanium Grey Metallic - RAL 9023 -Pearl Grey -Graphite Black -Hammered Grey -Satin Black -Matt White -Matt Black -Hammered Copper -Deep Blue - RAL 5004 -Agave -North Sea Blue -Ice -Matt Blue Dove - RAL 5014 -Matt Light Grey
CALCULATE THE POWER
How to choose the Oasi radiator for your home? How to know what is the right power to heat each room? Online thermal requirement allows you to identify the most suitable radiator for your living space
TECHNICAL DATA
| MODEL 01/05 | DEPTH (MM) | HEIGHT (MM) | WIDTH (MM) | CONN. CENTRE (MM) | WEIGHT (KG) | CAPACITY (LT) | ΔT=50°C (WATTS) | EXPONENT |
|---|---|---|---|---|---|---|---|---|
| Step_v_0600_06 el. | 107.0 | 600 | 670 | 376 | 11.58 | 1.66 | 415.2 | 1.232 |
| Step_v_0600_08el. | 107.0 | 600 | 910 | 376 | 15.62 | 2.22 | 553.6 | 1.232 |
| Step_v_0600_10 el. | 107.0 | 600 | 1150 | 376 | 19.65 | 2.79 | 692.0 | 1.232 |
| Step_v_1800_04 El. | 107.0 | 1800 | 430 | 1576 | 13.86 | 3.17 | 696.4 | 1.234 |
| Step_v_1800_06 El. | 107.0 | 1800 | 670 | 1576 | 21.05 | 4.77 | 1.044.6 | 1.234 |
| Step_v_1800_08 El. | 107.0 | 1800 | 910 | 1576 | 28.25 | 6.37 | 1.392.7 | 1.234 |
| Step_v_2000_04 El. | 107.0 | 2000 | 430 | 1776 | 14.91 | 3.51 | 764.7 | 1.238 |
| Step_v_2000_06 El. | 107.0 | 2000 | 670 | 1776 | 22.63 | 5.29 | 1.147.1 | 1.238 |
| Step_v_2000_08 El. | 107.0 | 2000 | 910 | 1776 | 30.36 | 7.06 | 1.529.5 | 1.238 |
