Irsap It Is Radiators
IT IS RADIATORS
IT IS RADIATORS
Designed By Angeletti & Ruzza
Form and function, calm, simplicity are the inspiring muses of the IT IS radiator. Harmony, rhythm, balance between full and empty, perfect proportions, the most meticulous attention to detail make the architectural structure of IT IS clear and legible, giving it a sense of freshness, cleanliness and order.
DESIGNERS
ANGELETTI & RUZZA
A couple in both personal and professional life, Silvana Angeletti was born in Rieti in 1969. Daniele Ruzza was born in Rome in 1967.
After graduating in industrial design, they began their partnership in February 1994 and opened their own design studio: angeletti ruzza design.
They took part in numerous competitions, winning prizes and commendation. They live and work in Rieti and cooperate with numerous prestigious Italian companies.
They have been collaborating with IRSAP since June 2006 and their research into proportion and linearity has led to three products that blend artistically into the hoe environment.
Sequenze, a radiator that speaks a contemporary language, with a neat and simple form that fits natural into any architectural environment. Shape and function, calm and simplicity are the inspirational muse of the new It Is and M’ama thermo-artworks, made in 2017.
information
BRAND
Irsap
PRODUCT TYPE
Radiators
CERTIFICATIONS
DESIGNERS
- Ruzza
- Angeletti
SQUARED SECTION
Side manifolds with a 70x20 mm squared section
TEMPERATURE
Low
PRODUCTION
Made in Italy
DIMENSIONS
- Width : 600 mm
- Height : 812 mm

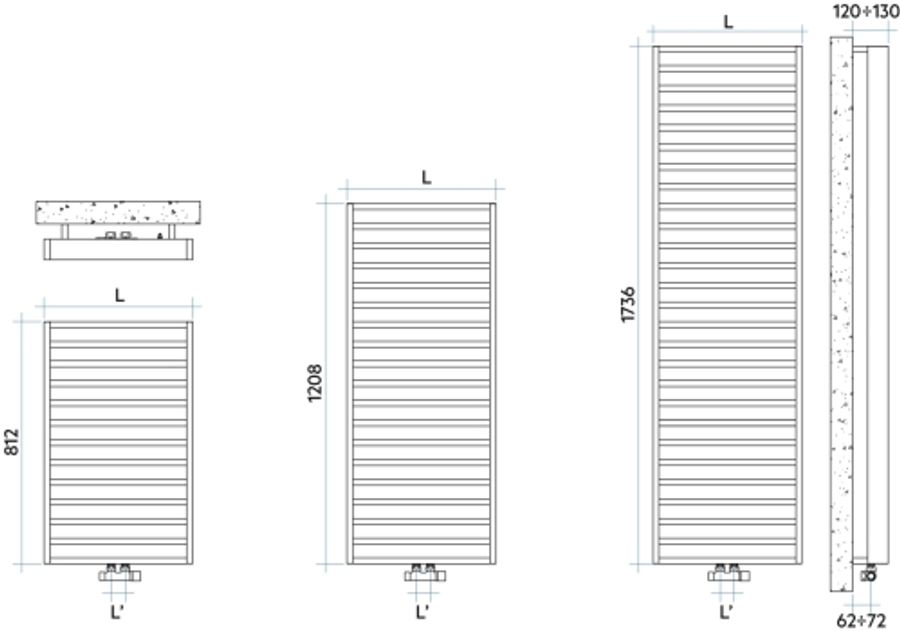

TECHNICAL DRAWING
INCLUDED
Valves Included
RADIATOR COLOUR
Chrome-plated
STANDARD EQUIPMENT
-Angle pattern valve and lockshield valve assembly complete with copper fitting (diameters 12, 14 and 15 mm), multilayer pipes (14 x 2 thick and 16 x 2 thick) -Kit of pipe covers (suitable for pipes up to 16 mm thick) -Wall fixing system -Air vent chrome-plated -1 towel rail bracket to match the radiator
HORIZONTAL ELEMENTS
Horizontal elements featuring rectangular tubes 60x20 mm section
RADIATOR
Hydrualic
GAS RIGHT
Manifold threading 1/2” gas right
CALCULATE THE POWER
How to choose the Oasi radiator for your home? How to know what is the right power to heat each room? Online thermal requirement allows you to identify the most suitable radiator for your living space
MAXIMUM PRESSURE
Maximum working pressure
4 bar
MAXIMUM TEMPERATURE
Maximum working temperature 95°c
DETAIL
TECHNICAL DATA
| MODEL | DEPTH (MM) | HEIGHT (MM) | WIDTH (MM) | CONN. CENTRE (MM) | WEIGHT (KG) | CAPACITY (LT) | ΔT=50°C (WATTS) | EXPONENT |
|---|---|---|---|---|---|---|---|---|
| 812 13 tubi | 70.0 | 812 | 500 | 50 | 11.10 | 1.40 | 336.0 | 1.250 |
| 812 13 tubi | 70.0 | 1812 | 600 | 50 | 13.00 | 1,60 | 408.0 | 1.230 |
| 1208 19 tubi | 70.0 | 1208 | 500 | 50 | 16.30 | 2,00 | 507.0 | 1.230 |
| 1208 19 tubi | 70.0 | 1208 | 600 | 50 | 19.00 | 2,30 | 579.0 | 1.230 |
| 1736 27 tubi | 70.0 | 1736 | 500 | 50 | 23,20 | 2,80 | 742.0 | 1.240 |
| 1736 27 tubi | 70.0 | 1736 | 600 | 50 | 27.10 | 3,30 | 815.0 | 1.240 |
