Irsap Novo Radiator
NOVO RADIATOR
NOVO RADIATOR
NOVO is the towel warmer for excellence, specifically designed for the bathroom.
With 4 heights and 4 widths it can satisfy any demand for dimensions and heating power. With the insertion of the electric resistance (optional) it can work even in periods when the system is off.
information
PRODUCTION
Made in Italy
PRODUCT TYPE
Radiator
BRAND
Irsap
SHAPE
Rectangular
TUBES
Horizontal Tubes
TEMPERATURE
Maximum working temperature 95°c
DIMENSIONS
- Height : 764 mm
- Width : 450 mm
DIAMETER
Steel towel warmer radiator with horizontal elements featuring round tubes 25 mm diameter
GAS RIGHT
Manifold threading and central connections (50 mm) 1/2” Gas right
SECTION
Side manifolds with semi-oval section 40x30 mm
PRESSURE
Maximum working pressure 4 bar
CERTIFICATIONS
STANDARD EQUIPMENT
- Pair of CHELA wall brackets
-Wall spacers
- 1/2" air vent
SPECIAL OPTIONS AND SURCHARGES
- Radiators can be supplied with no. 1 1/2” coupling welded laterally for the connection to a single-pipe system and no. 2 1/2” couplings welded laterally to a manifold (Cod. B10). If the second coupling comes at a height that is lower than the half the radiator’s total height, a diaphragm is welded inside to the manifold for optimized water circulation.
- Surcharge for two 1/2” couplings welded to a lateral manifold and an internal diaphragm (Cod. B10)
- Surcharge for two 1/2” couplings welded to a lateral manifold and an internal diaphragm (Cod. B 99)

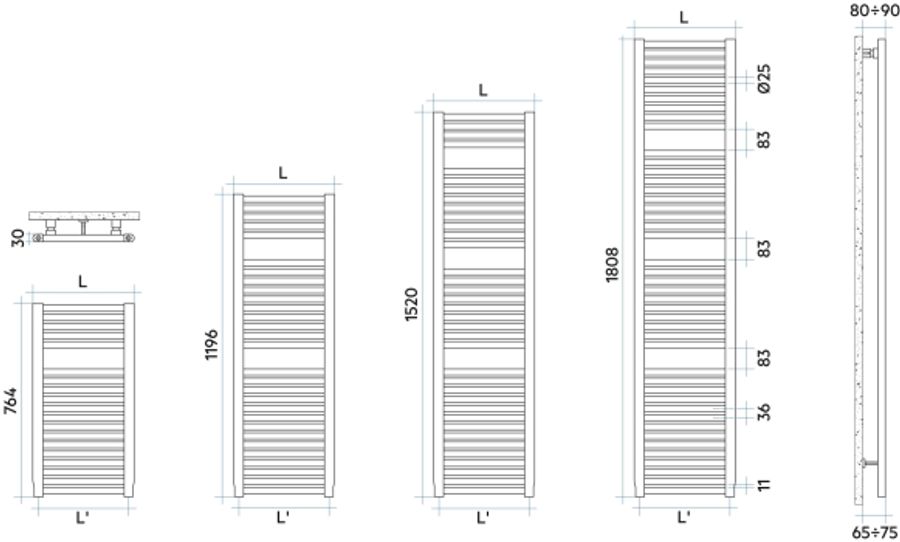

TECHNICAL DRAWING
FEATURES
- Low temperature
- Hydraulic radiator
- Electric radiator available
- 10 year gurantee
FINISHES
- Standard White
- Classic finished
- Special finished Other
- RAL colors
CALCULATE THE POWER
How to choose the Oasi radiator for your home? How to know what is the right power to heat each room? Online thermal requirement allows you to identify the most suitable radiator for your living space
TECHNICAL DATA
| MODEL01/05 | DEPTH (MM) | HEIGHT (MM) | WIDTH (MM) | CONN. CENTRE (MM) | WEIGHT (KG) | CAPACITY (LT) | ΔT=50°C (BTU/H) | EXPONENT | MIXED FUNCTION (WATTS) |
|---|---|---|---|---|---|---|---|---|---|
| 764 19 rails 1 espace | 55,0 | 800 | 450 | 406 | 5,64 | 4,43 | 385,1 | 1,206 | 400 |
| 764 19 rails 1 espace | 30,0 | 764 | 500 | 456 | 6,15 | 4,83 | 422,4 | 1,203 | 400 |
| 764 19 rails 1 espace | 30,0 | 764 | 400 | 556 | 7,17 | 5,64 | 496,9 | 1,196 | 400 |
| 764 19 rails 1 espace | 30,0 | 764 | 750 | 706 | 10,13 | 6,66 | 608,6 | 1,185 | 400 |

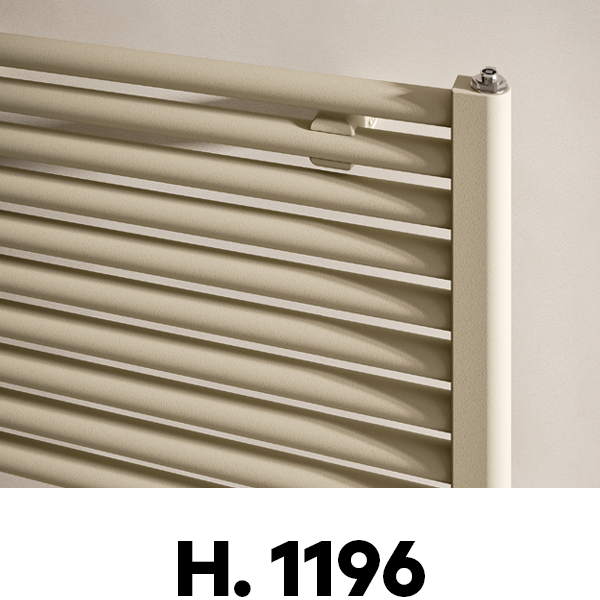

| 1196 29 rails 2 espaces | 30,0 | 1196 | 450 | 406 | 8,62 | 6,82 | 552,2 | 1,190 | 400 |
| 1196 29 rails 2 espaces | 30,0 | 1200 | 500 | 456 | 9,39 | 7,44 | 611,4 | 1,190 | 700 |
| 1196 29 rails 2 espaces | 30,0 | 1200 | 600 | 706 | 10,94 | 8,66 | 729,8 | 1,190 | 700 |
| 1196 29 rails 2 espaces | 30,0 | 1200 | 750 | 570 | 15,47 | 10,22 | 907,5 | 1,190 | 1000 |
| 1520 36 rails 3 espaces | 30,0 | 1520 | 450 | 406 | 10,75 | 8,54 | 695,4 | 1,241 | 1000 |
| 1520 36 rails 3 espaces | 30,0 | 1520 | 500 | 456 | 11,71 | 9,30 | 771,0 | 1,240 | 700 |
| 1520 36 rails 3 espaces | 30,0 | 1520 | 600 | 556 | 13,63 | 10,82 | 922,2 | 1,237 | 1000 |
| 1520 36 rails 3 espaces | 30,0 | 1520 | 750 | 706 | 19,25 | 12,75 | 1.149,0 | 1,234 | 1000 |

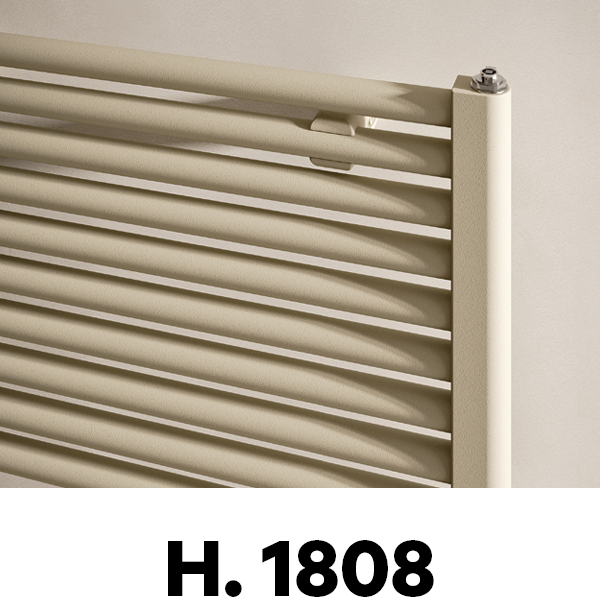

| 1808 44 rails 3 espaces | 30,0 | 1808 | 450 | 406 | 12,99 | 10,34 | 860,3 | 1,223 | 700 |
| 1808 44 rails 3 espaces | 30,0 | 1808 | 500 | 456 | 14,17 | 11,27 | 945,7 | 1,218 | 1000 |
| 1808 44 rails 3 espaces | 30,0 | 1808 | 600 | 556 | 16,52 | 13,13 | 1.116,0 | 1,208 | 1000 |
| 1808 44 rails 3 espaces | 30,0 | 1808 | 750 | 706 | 23,38 | 15,49 | 1.371,5 | 1,193 | 1000 |
