Irsap Dedalo Radiator
Dedalo Radiator
DEDALO RADIATOR
Designed by Carlo and Giorgio Gaino

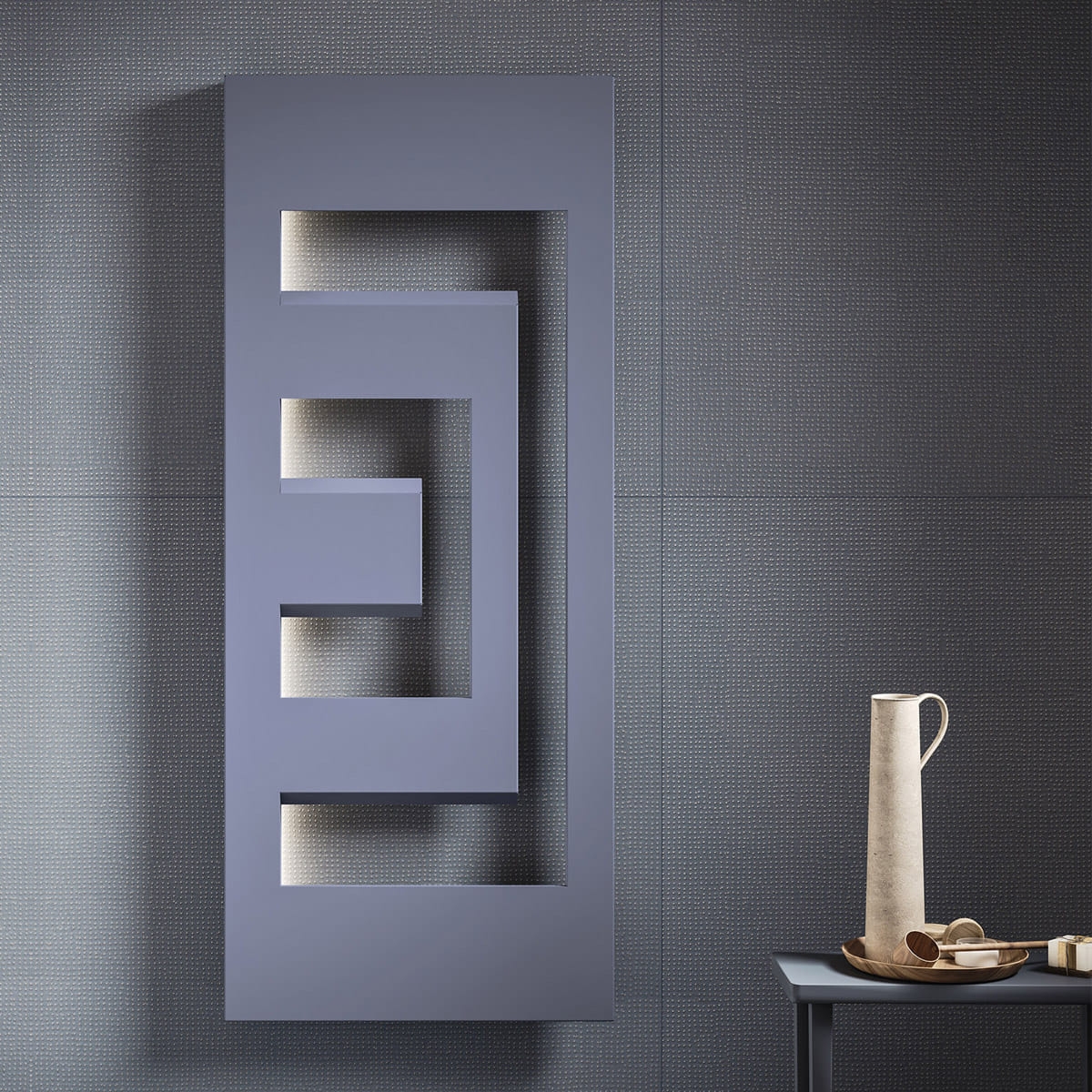

Lines that chase each other forming a geometric sign of high personality.
Precisely worked steel characterizes DEDALO with a defined personality. The LED light (in the model with light) creeps into the spaces, forming plays of light and shadow.
It is supplied with the innovative concealed hydraulic connection system installed directly in the company. Available in two models, DEDALO P and DEDALO L, with two thermal powers.
DESIGNERS
CARLO AND GIORGIO GAINO
Synthesis design was born in Turin in 1988, founders Carlo and Giorgio Gaino.
The studio has been operating for years in the automotive, nautical and product design sector.
The close collaboration with the company has allowed the development of new technological systems, which make the insertion of the radiator into the environment harmonious and simplify installation.. The design approach that has been the basis of the projects created for Irsap: Dedalo, Tratto, Sax and Net has combined creativity, material experimentation, and a careful formal and perceptive study.
information
BRAND
Irsap
PRODUCT TYPE
Radiator
DESINERS
- Carlo
- Giorgio Gaino
DIMENSIONS
- Height : 900 mm
- Width : 498 mm
CERTIFICATIONS
FEATURES
- Hydraulic radiator
- Low temperature
- Side manifolds with 70x11 mm flat section
COLLECTION
Dedalo
PRODUCTION
Made in Italy
TEMPERATURE
95°C
PRESSURE
4 Bar
COLORS
- Ice
- Agave
- Sablé
- Quartz 2
- Sunstone
- Azurite 3
- RAL 5014
- Matt White
- RAL 9023
- Pearl Grey
- Satin Black
- Pearl White
- Matt Black
- Flame Red
- Medium Grey
- MattBlue Dove
- North Sea Blue
- Hammered Grey
- Graphite Black
- Matt Light Grey
- Hammered Copper
- Titanium Grey Metallic
-Other RAL Colours (following feasibility study)
CALCULATE THE POWER
How to choose the Oasi radiator for your home? How to know what is the right power to heat each room? Online thermal requirement allows you to identify the most suitable radiator for your living space
THERMAL POWER
248 Watt
MODELS
Dedalo With Led
STANDARD EQUIPMENT
-Air vent -LED lighting system optional -Wall fixing system built into the product column -Innovative water connection system installed on the product complete with fittings for connection to copper pipes (12, 14 and 15 mm diameter) and multilayer pipes (14 x 2 thick and 16 x 2 thick)
PANEL
Radiating
USE
Heating

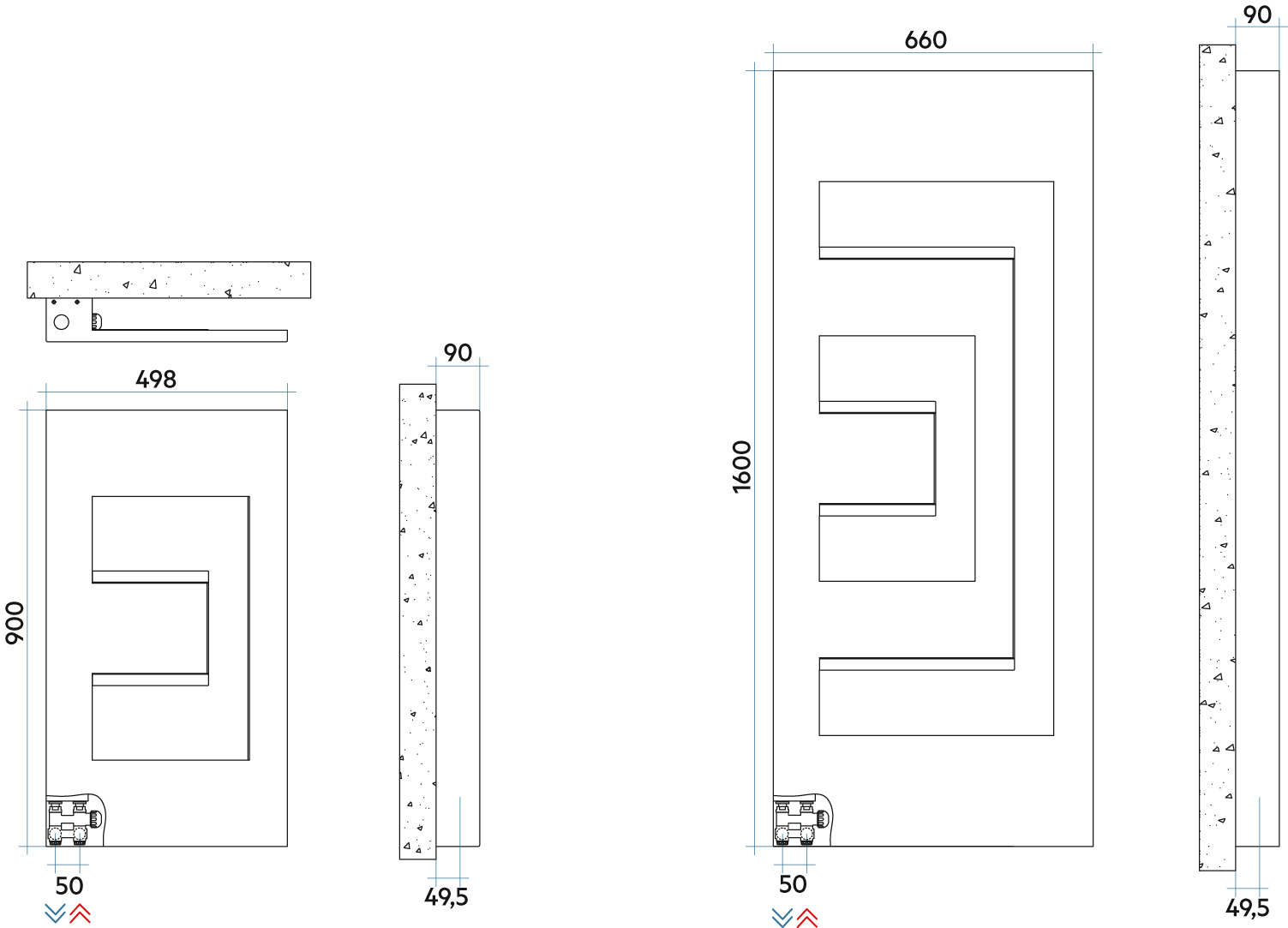

TECHNICAL DRAWING
TECHNICAL DATA
| MODEL | DEPTH (MM) | HEIGHT (MM) | WIDTH (MM) | CONN. CENTRE (MM) | WEIGHT (KG) | CAPACITY (LT) | ΔT=50°C (BTU/H) | EXPONENT |
|---|---|---|---|---|---|---|---|---|
| Dedalo | 90,0 | 900 | 498 | 50 | 18,00 | 0,70 | 248,0 | 1,386 |
| Dedalo with led | 90,0 | 900 | 498 | 50 | 18,00 | 0,70 | 248,0 | 1,386 |
