Irsap Funky_s Radiators
FUNKY_S RADIATORS
FUNKY_S RADIATORS
Original features, full of personality and creativity, give shape to this towel warmer with essential lines.
FUNKY_S takes inspiration from the rhythm that permeates its shapes, creating a free and versatile approach, capable of transforming and furnishing any bathroom environment, making it the protagonist.
information
ROUND MANIFOLDS
Side round manifolds with a 30 mm diameter
BRAND
Irsap
RADIATOR COLOUR
Standard White
HYDRUALIC CONNECTIONS AND VALUES
Connection left/right with angle valve - Standard white
CONNECTIONS
-Connection left/right with angle valve -50mm connection with angle valve
PRODUCT TYPE
Radiators
RADIATOR
Hydrualic
WIDTH
500 mm
HEIGHT
928 mm
CERTIFICATIONS
HYDRUALIC
Hydraulic, Electric radiator with booster available
MAXIMUM PRESSURE
Maximum working pressure 4 bar
PRODUCTION
Made in Italy
STANDARD EQUIPMENT
- 4 wall fixing in the same color as the radiator
- 2 1/2” hidden airvents complete with valve cover
RESISTANCE
Electric Resistance
TEMPERATURE
Low
CONSTRUCTION FEATURES
-50 mm connection -Not suitable for installation with a single-pipe system
TECHNICAL DRAWING
COLORS
- Quartz 1
- Beige Cream
- Standard White
- Ivory
- RAL 1013
- Manhattan Grey
- Red
- RAL 3000
- Brown
- RAL 8017
- Claret
- RAL 3003
- Orange
- RAL 2004
- Bluish Lilac
- RAL 4005
- Woodland Green
- RAL 6005
- Green Grass
- RAL 6018
- Melon Yellow
- RAL 1028
- Black
- RAL 9005
- Pearl White
- Edelweiss White
- Sablé
- Quartz 2
- Sunstone
- Tobacco Brown
- Flame Red
- Azurite 3
- Medium Grey
- Titanium Grey Metallic
- RAL 9023
- Pearl Grey
- Graphite Black
- Hammered Grey
- Satin Black
- Matt White
- Matt Black
- Hammered Copper
- Deep Blue
- RAL 5004
- Agave
- North Sea Blue
- Ice
- Matt Blue Dove
- RAL 5014
- Matt Light Grey
CALCULATE THE POWER
How to choose the Oasi radiator for your home? How to know what is the right power to heat each room? Online thermal requirement allows you to identify the most suitable radiator for your living space
DETAILS
Available in 3 heights and 2 widths. With the insertion of the electric resistance (optional) it can work even in periods when the system is off.
MAXIMUM TEMPERATURE
Maximum working temperature 95°c
STEEL TOWEL
Steel towel warmer radiator
GAS RIGHT
Manifold threading 1/2” gas right
MODEL
TECHNICAL DATA
TECHNICAL DATA
| MODEL | DEPTH (MM) | HEIGHT (MM) | WIDTH (MM) | CONN. CENTRE (MM) | WEIGHT (KG) | CAPACITY (LT) | ΔT=50°C (WATTS) | EXPONENT | MIXED FUNCTION (WATTS) |
|---|---|---|---|---|---|---|---|---|---|
| 928 18 rails 2 espaces | 50.0 | 928 | 500 | 50 | 8.70 | 347 | 402.4 | 1.183 | 400 |
| 1170 22 rails 3 espaces | 50.0 | 1170 | 500 | 50 | 10.58 | 4.14 | 488.0 | 1.198 | 400 |

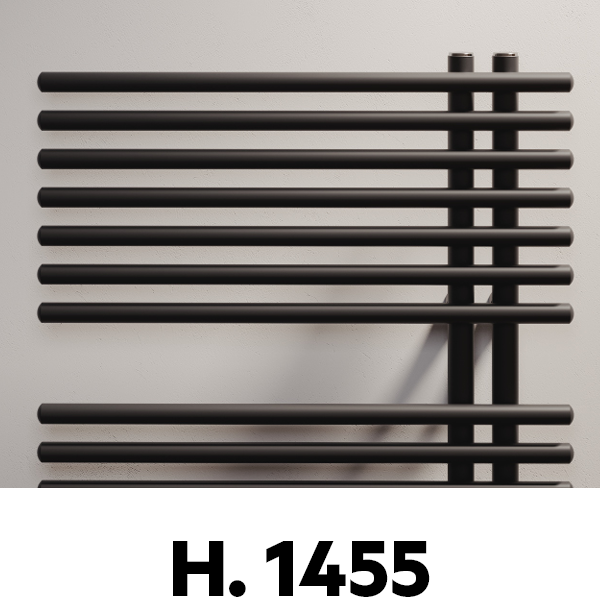

| 1455 27 rails 4 espaces | 50.0 | 1455 | 500 | 50 | 12.95 | 5.02 | 591.9 | 1.257 | 700 |
| 1455 27 rails 4 espaces | 50.0 | 1455 | 600 | 50 | 14.92 | 5.75 | 687.8 | 1.246 | 700 |

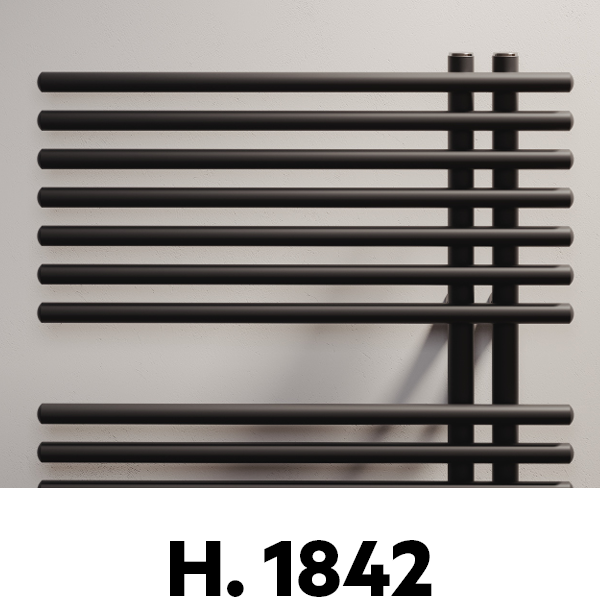

| 1842 36 rails 4 espaces | 50.0 | 1842 | 600 | 50 | 19.18 | 7.57 | 890.7 | 1.238 | 1000 |
