Irsap Get Up Radiator
GET UP RADIATOR
GET UP RADIATOR

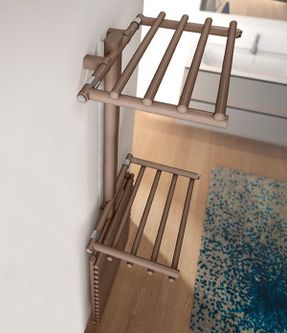

Get up, radiator thanks to its constructional features, it can be used as a clothes horse, thanks to the patented double pivot, allows the 90° opening of some heating parts, combining in this way functionality and practicality (or even more enhancing the functionality and practicality).
information
STANDARD EQUIPMENT
-3 wall fixings -Pair of 1/2” caps and cap covers for closing unused supply connections -1 vent valve of 1/8" for radiators model M (1076 mm height); 1 vent valve of 1/8" and 1 vent valve of 1/2" for radiators model L (1499 mm height) -Get up is supplied standard with a double hydraulic connection, at the ends of the side manifolds, and with pitch 50 mm in the centre of the radiator
FINISHES
- Standard White
- Classic finished
- Special finished
- Other RAL colors
CERTIFICATIONS
BRAND
Irsap
USE
Heating
DIMENSIONS
- Height : 1076 mm
- Width : 550 mm
PRODUCT TYPE
Radiator
PRODUCTION
Made in Italy
FEATURES
- Low temperature
- Hydraulic radiator
- Electric radiator available
- Electric radiator with booster available
MAXI. CAPACITY OF THE TOWEL RAILS
7 kg
LATERAL MANIFOLDS
30 mm diameter round lateral manifolds
MODELS
- H. 1076 20 rails 1 espace
- H. 1499 25 rails 2 espaces
TECHNICAL DRAWING
HEATING ELEMENTS
23 mm diameter horizontal round bar heating elements
THERMAL POWER
625 Watt
MATERIAL
Steel Towel Warmer
THREADING
threading at the ends of the manifolds right Gas 1/2”
CALCULATE THE POWER
How to choose the Oasi radiator for your home? How to know what is the right power to heat each room? Online thermal requirement allows you to identify the most suitable radiator for your living space
TEMPERATURE
Maximum working temperature 95°c
PRESSURE
Maximum working pressure 4 bar
COLORS
-Quartz 1 -Beige Cream -Standard White -Ivory - RAL 1013 -Manhattan Grey -Red - RAL 3000 -Brown - RAL 8017 -Claret - RAL 3003 -Orange - RAL 2004 -Bluish Lilac - RAL 4005 -Woodland Green - RAL 6005 -Green Grass - RAL 6018 -Melon Yellow - RAL 1028 -Black - RAL 9005 -Pearl White -Edelweiss White -Sablé -Quartz 2 -Sunstone -Tobacco Brown -Flame Red -Azurite 3 -Medium Grey -Titanium Grey Metallic - RAL 9023 -Pearl Grey -Graphite Black -Hammered Grey -Satin Black -Matt White -Matt Black -Hammered Copper -Deep Blue - RAL 5004 -Agave -North Sea Blue -Ice -Matt Blue Dove - RAL 5014 -Matt Light Grey
TECHNICAL DATA
| MODEL | DEPTH (MM) | HEIGHT (MM) | WIDTH (MM) | CONN. CENTRE (MM) | WEIGHT (KG) | CAPACITY (LT) | ΔT=50°C (BTU/H) | EXPONENT |
|---|---|---|---|---|---|---|---|---|
| 1076 20 rails 1 espace | 77.0 | 1076 | 550 | 50 | 15.40 | 7.60 | 625.0 | 1.251 |
| 1499 25 rails 2 espaces | 77.0 | 1499 | 550 | 50 | 20.30 | 9.90 | 775.0 | 1.278 |
