NOVO CULT RADIATOR
NOVO CULT RADIATOR

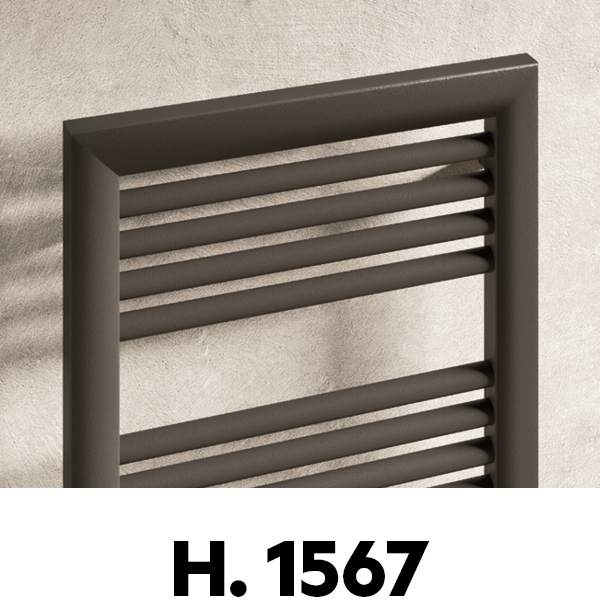

NOVO CULT represents the contemporary appeal of traditional style. A refined Termoarredo which, thanks to its important hand-finished rounded cornice, embodies all the technical and formal features of the classic bathroom radiator.
information
SPECIAL OPTIONS AND SURCHARGES
-Radiators can be supplied with no. 1 1/2” coupling welded laterally for the connection to a single-pipe system and no. 2 1/2” couplings welded laterally to a manifold (Cod. B10). -Surcharge for two 1/2” couplings welded to a lateral manifold and an internal diaphragm
STANDARD EQUIPMENT
- 1/2" air vent
- 4 wall fixing in the same color as the radiator
CERTIFICATIONS
DIAMETER
25 mm
TUBES
Horizontal Tubes
FINISHES
- Standard White
- Classic finished
- Special finished Other
- RAL colors
CALCULATE THE POWER
How to choose the Oasi radiator for your home? How to know what is the right power to heat each room? Online thermal requirement allows you to identify the most suitable radiator for your living space
GAS RIGHT
Manifold threading 1/2” gas right
PRODUCTION
Made in Italy
TEMPERATURE
Maximum working temperature 95°c
PRESSURE
Maximum working pressure 4 bar

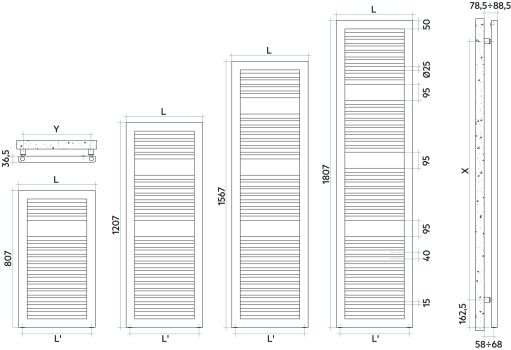

TECHNICAL DRAWING
ROUND TUBES FEATURING
Steel towel warmer radiator with horizontal elements featuring round tubes.
SECTION
Side manifolds with semi-oval section 50x36,5 mm
DIMENSIONS
- Height : 807 mm
- Width : 450 mm
FEATURES
- Low temperature
- Hydraulic radiator
MODELS
TECHNICAL DATA
| MODEL01/05 | DEPTH (MM) | HEIGHT (MM) | WIDTH (MM) | CONN. CENTRE (MM) | WEIGHT (KG) | CAPACITY (LT) | ΔT=50°C (BTU/H) | EXPONENT | MIXED FUNCTION (WATTS) |
|---|---|---|---|---|---|---|---|---|---|
| 807 15 rails 1 espace | 36,5 | 807 | 450 | 406 | 7,79 | 5,61 | 391,0 | 1,226 | 400 |
| 807 15 rails 1 espace | 36,5 | 807 | 500 | 456 | 8,40 | 6,08 | 430,0 | 1,229 | 400 |
| 807 15 rails 1 espace | 36,5 | 807 | 600 | 556 | 9,64 | 7,00 | 507,0 | 1,236 | 400 |
| 1207 23 rails 2 espaces | 36,5 | 1207 | 450 | 406 | 11,01 | 7,97 | 557,0 | 1,262 | 400 |
| 1207 23 rails 2 espaces | 36,5 | 1207 | 500 | 456 | 11,84 | 8,60 | 610,0 | 1,260 | 700 |
| 1207 23 rails 2 espaces | 36,5 | 1207 | 600 | 556 | 13,50 | 9,87 | 718,0 | 1,258 | 700 |
| 1567 30 rails 3 espaces | 36,5 | 1567 | 450 | 406 | 13,87 | 10,06 | 723,0 | 1,265 | 700 |
| 1567 30 rails 3 espaces | 36,5 | 1567 | 500 | 456 | 14,89 | 10,84 | 794,0 | 1,264 | 1000 |
| 1567 30 rails 3 espaces | 36,5 | 1567 | 600 | 556 | 16,92 | 12,40 | 936,0 | 1,263 | 700 |
| 1807 36 rails 3 espaces | 36,5 | 1807 | 450 | 406 | 16,02 | 11,65 | 842,0 | 1,258 | 1000 |
| 1807 36 rails 3 espaces | 36,5 | 1807 | 500 | 456 | 17,20 | 12,56 | 928,0 | 1,255 | 1000 |
| 1807 36 rails 3 espaces | 36,5 | 1807 | 600 | 556 | 19,56 | 14,37 | 1.099,0 | 1,250 | 1000 |
