FUNKY_S AIR MIX RADIATORS
FUNKY_S AIR MIX RADIATORS
Original features full of personality and creativity, give shape to this towel warmer of essential lines.
Funky_s air mix takes inspiration from the rhythm pervading its forms and creating a free and versatile approach, able to transform and decorate any bathroom’s space, making it the leading actor.
information
HORIZONTAL ELEMENTS
Horizontal elements featuring with a 23 mm diameter
BRAND
Irsap
PRODUCT TYPE
Radiators
RADIATOR
Hydrualic
PRODUCTION
Made in Italy
AVAILABLE
Electric radiator with booster available
CONNECTIONS

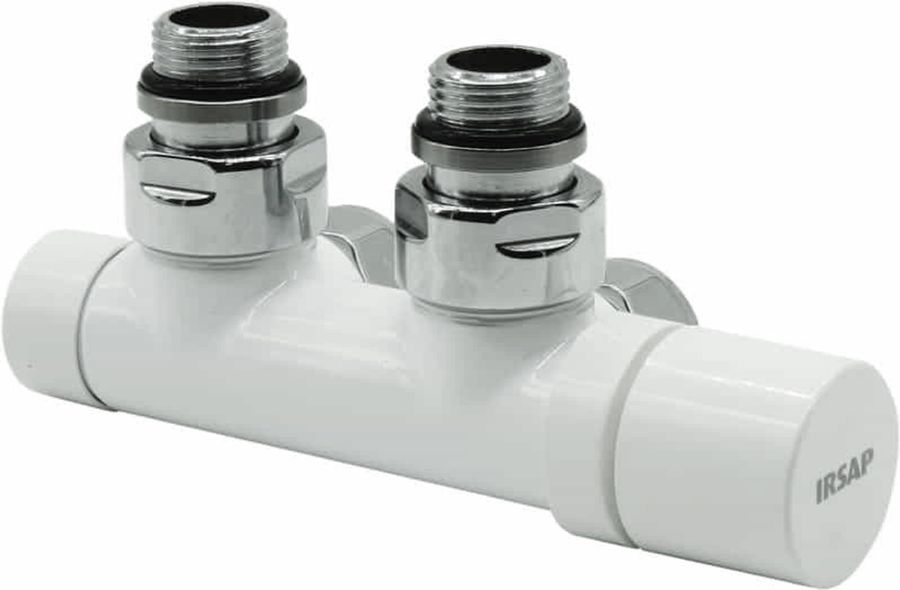

50mm connection with angle valve
MAXIMUM PRESSURE
Maximum working pressure 4 bar
HYDRUALIC CONNECTIONS AND VALUES
None
CERTIFICATIONS
CONSTRUCTION FEATURES

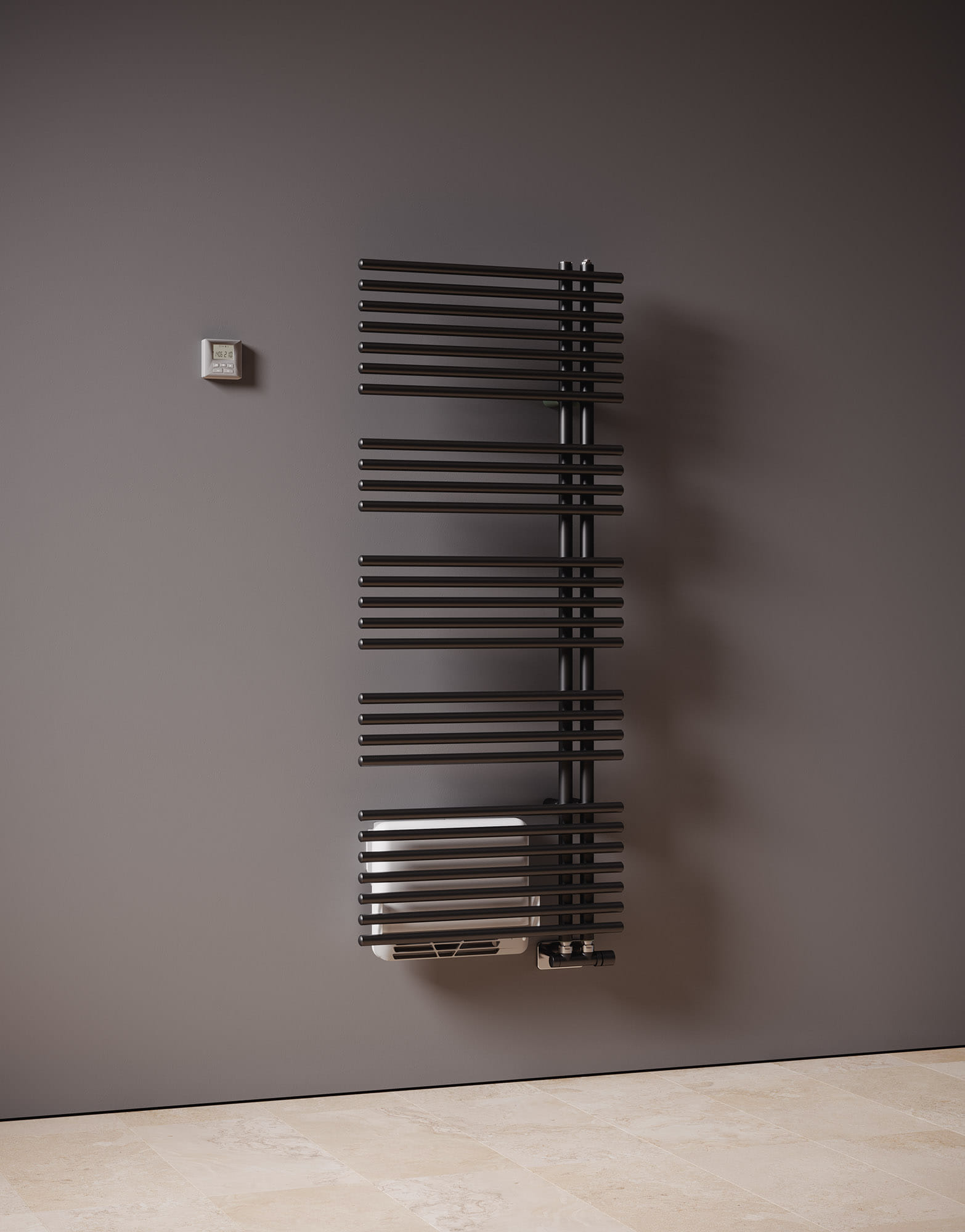

-Radiator hydraulic equipped with a booster mounted behind the radiator with a power of 1,000 Watts -Not suitable for installation with a single-pipe system
STEEL TOWER
Steel tower warmer radiator
RESISTANCE
Electric Resistance
MAXIMUM TEMPERATURE
Maximum working temperature 95°c
GAS RIGHT
Manifold threading 1/2” gas right
ROUND SECTION
Side round manifolds with a 30 mm diameter

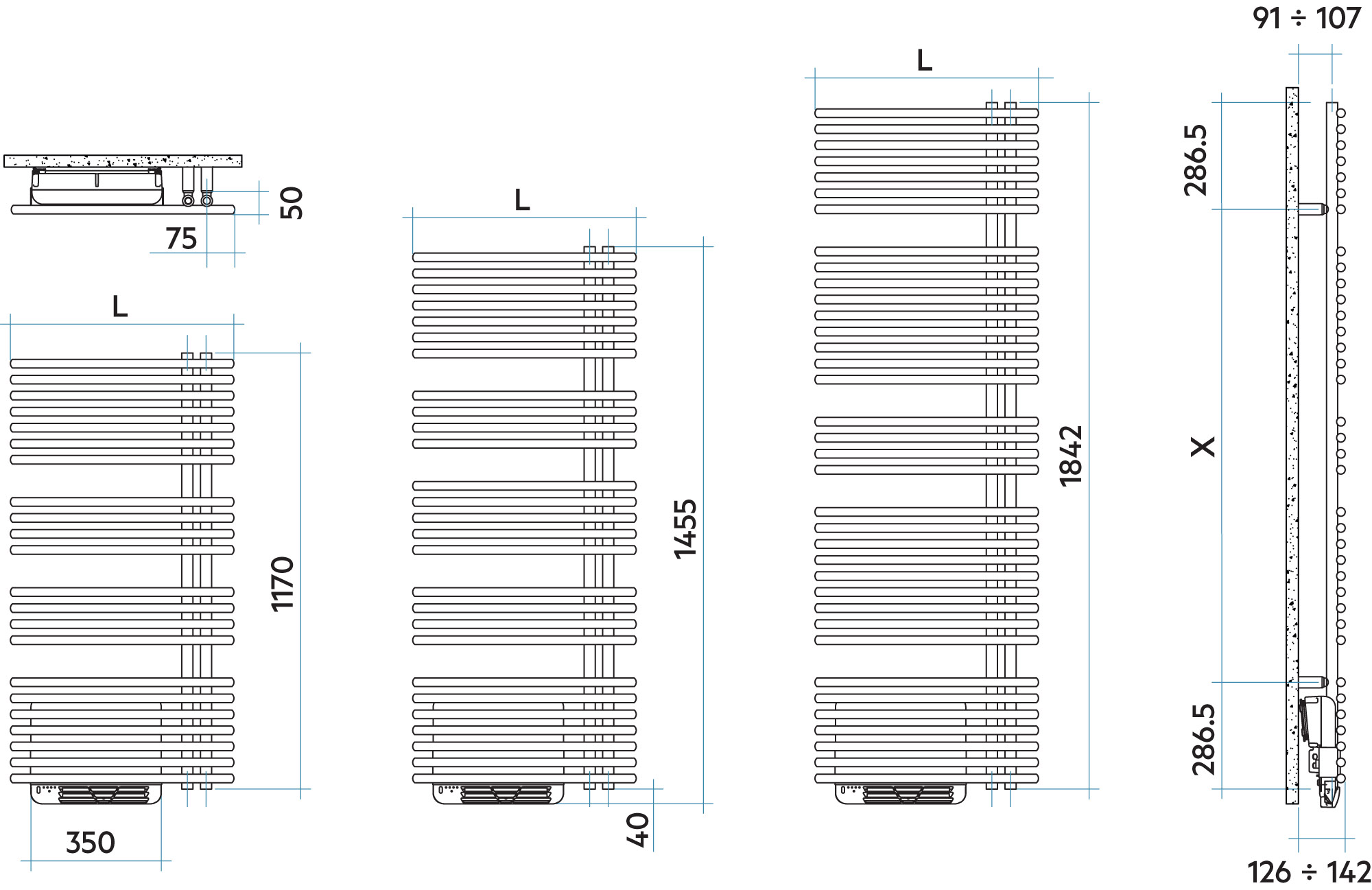

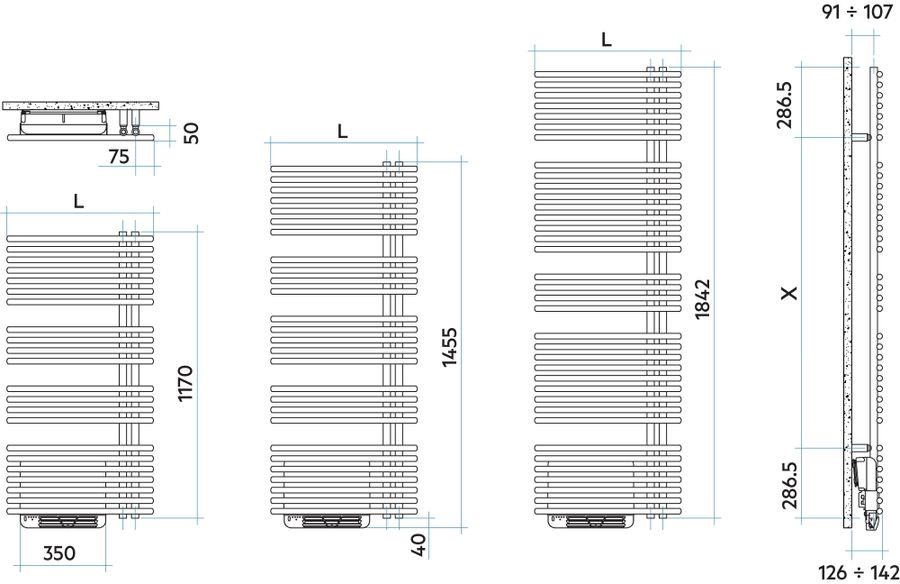

TECHNICAL DRAWING
DOWNLOADS
↓ Catalog 2023
↓ Technical Sheet
↓ Installation Manual 1
↓ Installation Manual 2
↓ Installation Manual 3

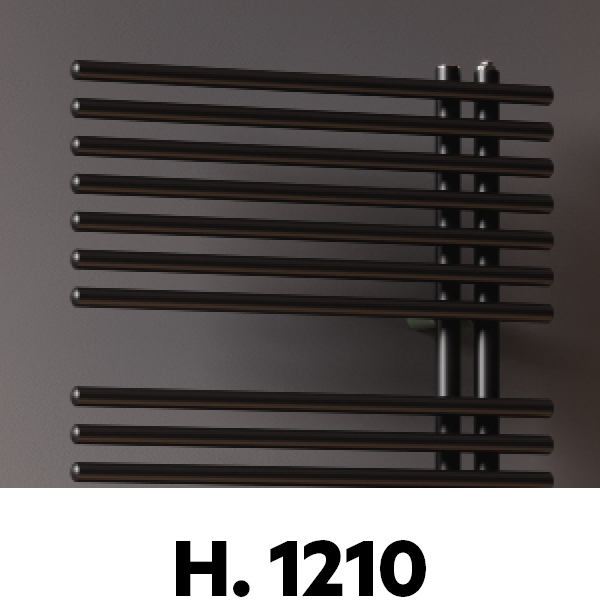

HEIGHT
1210 mm
HYDRUALIC
Hydraulic radiator available
WIDTH
600 mm
TEMPERATURE
Low
COLORS
- Quartz 1
- Beige Cream
- Standard White
- Ivory
- RAL 1013
- Manhattan Grey
- Red
- RAL 3000
- Brown
- RAL 8017
- Claret
- RAL 3003
- Orange
- RAL 2004
- Bluish Lilac
- RAL 4005
- Woodland Green
- RAL 6005
- Green Grass
- RAL 6018
- Melon Yellow
- RAL 1028
- Black
- RAL 9005
- Pearl White
- Edelweiss White
- Sablé
- Quartz 2
- Sunstone
- Tobacco Brown
- Flame Red
- Azurite 3
- Medium Grey
- Titanium Grey Metallic
- RAL 9023
- Pearl Grey
- Graphite Black
- Hammered Grey
- Satin Black
- Matt White
- Matt Black
- Hammered Copper
- Deep Blue
- RAL 5004
- Agave
- North Sea Blue
- Ice
- Matt Blue Dove
- RAL 5014
- Matt Light Grey
CALCULATE THE POWER
How to choose the Oasi radiator for your home? How to know what is the right power to heat each room? Online thermal requirement allows you to identify the most suitable radiator for your living space
TECHNICAL DATA
| MODEL | DEPTH (MM) | HEIGHT (MM) | WIDTH (MM) | CONN. CENTRE (MM) | WEIGHT (KG) | CAPACITY (LT) | ΔT=50°C (WATTS) | EXPONENT | ELECTRIC POWER WITH BOOSTER (WATT) |
|---|---|---|---|---|---|---|---|---|---|
| 1170 22 rails 3 espaces | 122.0 | 1210 | 600 | 50 | 14.79 | 4.73 | 572.0 | 1.190 | 1000 |

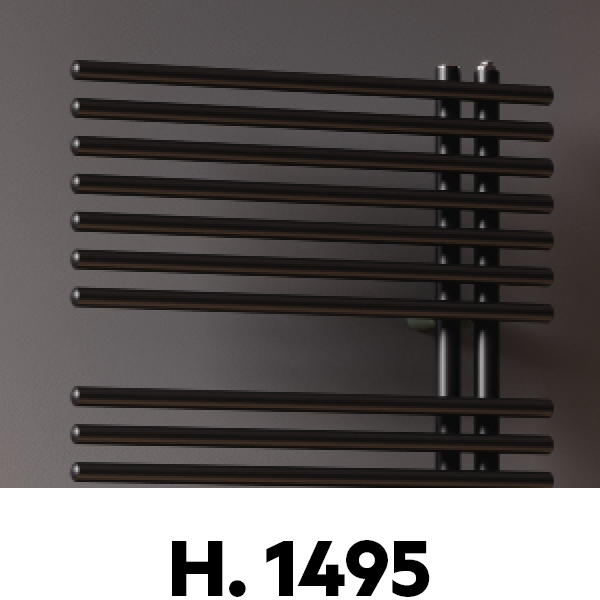

| 1455 27 rails 4 espaces | 122.0 | 1495 | 600 | 50 | 17.53 | 5.75 | 687.8 | 1.246 | 1000 |

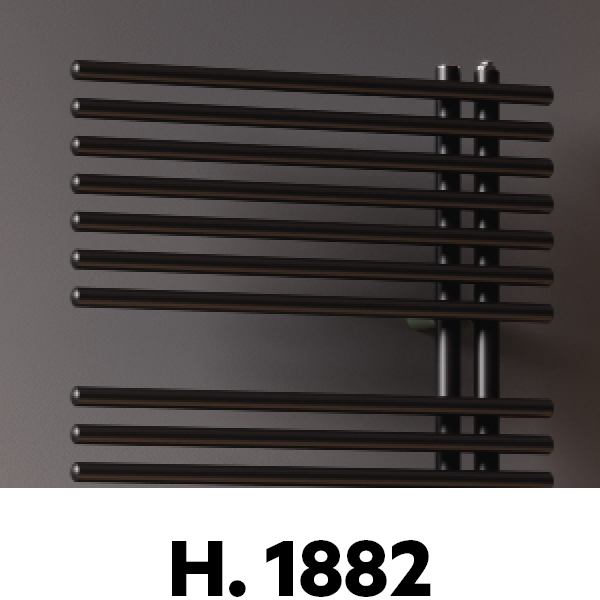

| 1842 36 rails 4 espaces | 122.0 | 1882 | 600 | 50 | 21.79 | 7.57 | 890.7 | 1.238 | 1000 |
