Irsap Filo Radiator
FILO RADIATOR
FILO RADIATOR

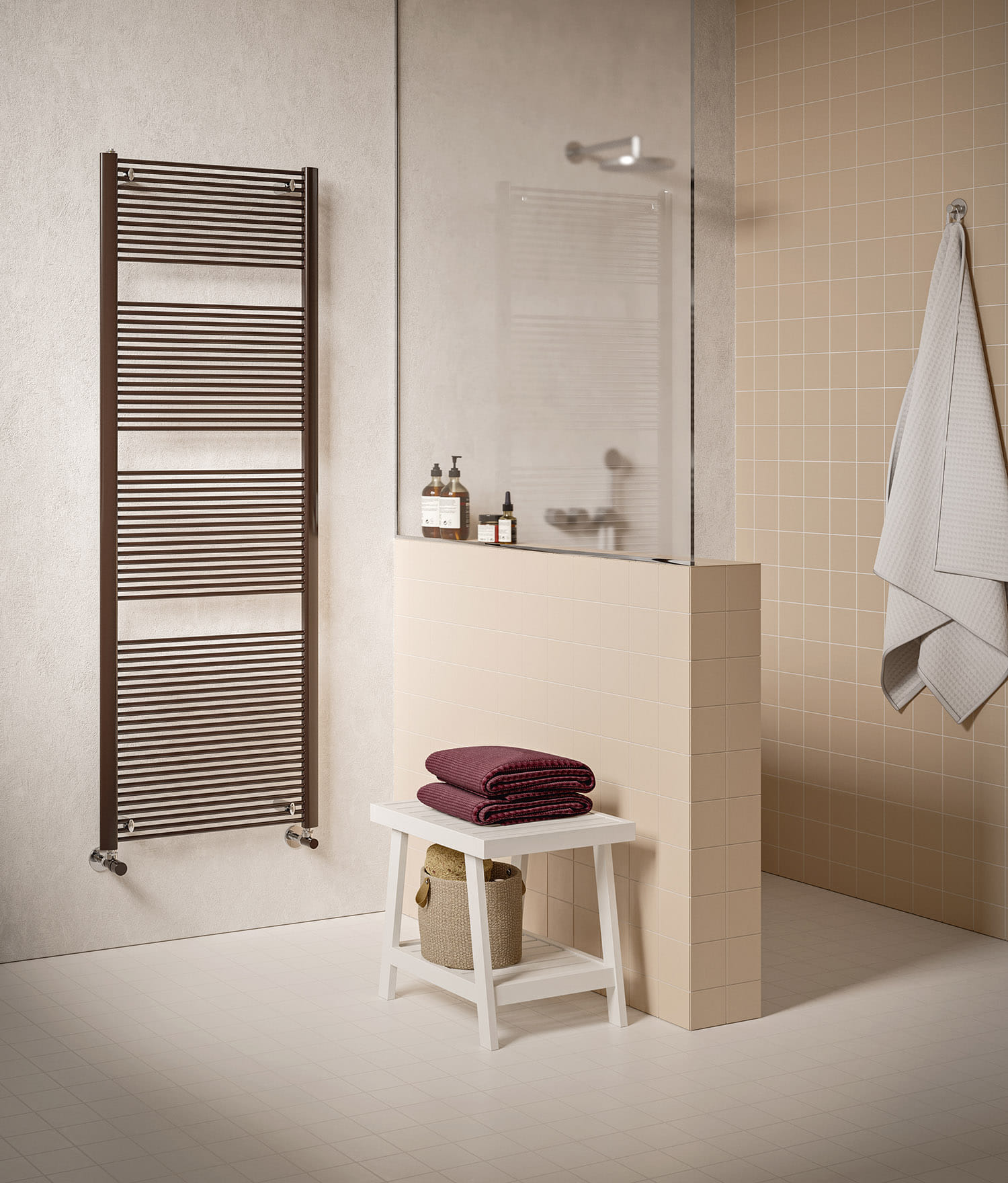

FILO completes the range of Irsap towel warmers. Functional object that replaces the furniture elements in the home and office environments. Its streamlined and captivating line is characterized by the proportionate diameter of the tubes. FILO is available in 4 heights and 3 widths. With the insertion of the electric resistance (optional) it can work even in periods when the system is off.
INFORMATION
BRAND
Irsap
PRODUCT TYPE
Radiator
PRODUCTION
Made in Italy
PRESSURE
Maximum working pressure 4 bar
FEATURES
- Hydraulic radiator available
- Low temperature
COLOR
White
THREADING
Manifold threading 1/2” Gas right
FINISHES AVAILABLE
- Standard White
- Classic finished
- Special finished
- Other RAL colors
DIAMETER
steel towel warmer radiator with horizontal elements featuring round tubes 12 mm diameter
TEMPERATURE
Maximum working temperature 95°c
CERTIFICATIONS

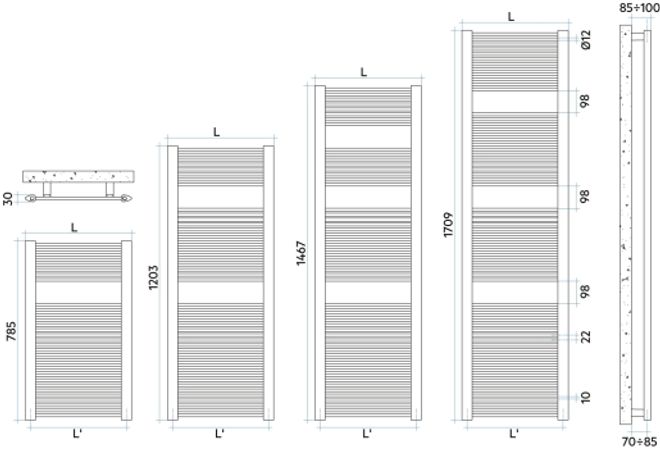

TECHNICAL DRAWING
CALCULATE THE POWER
How to choose the Oasi radiator for your home? How to know what is the right power to heat each room? Online thermal requirement allows you to identify the most suitable radiator for your living space
TECHNICAL DATA
Thanks to the high performance of Irsap GET UP AIR MIX radiators, the ideal Δt for low temperature projects is Δt at 30°C.For Δt different from 50°C use the formula Q=Qn (Δt / 50)n
| MODEL | DEPTH (MM) | HEIGHT (MM) | WIDTH (MM) | CONN. CENTRE (MM) | WEIGHT (KG) | CAPACITY (LT) | ΔT=50°C (BTU/H) | EXPONENT | ELECTRIC POWER WITH BOOSTER (WATT) |
|---|---|---|---|---|---|---|---|---|---|
| 785 31 rails 1 espace | 30,0 | 785 | 466 | 406 | 6,05 | 2,19 | 376,2 | 1,223 | 400 |
| 785 31 rails 1 espace | 30,0 | 785 | 516 | 456 | 6,54 | 2,30 | 415,3 | 1,223 | 400 |
| 785 31 rails 1 espace | 30,0 | 785 | 616 | 556 | 7,54 | 2,53 | 493,2 | 1,223 | 400 |
| 1203 46 rails 2 espaces | 30,0 | 1203 | 466 | 406 | 9,04 | 3,32 | 556,5 | 1,241 | 400 |
| 1203 46 rails 2 espaces | 30,0 | 1203 | 516 | 456 | 9,78 | 3,49 | 614,3 | 1,241 | 400 |
| 1203 46 rails 2 espaces | 30,0 | 1203 | 616 | 556 | 11,25 | 3,82 | 729,5 | 1,241 | 700 |
| 1467 54 rails 3 espaces | 30,0 | 1467 | 466 | 406 | 10,75 | 3,99 | 661,2 | 1,241 | 700 |
| 1467 54 rails 3 espaces | 30,0 | 1467 | 516 | 456 | 11,62 | 4,19 | 729,6 | 1,241 | 700 |
| 1467 54 rails 3 espaces | 30,0 | 1467 | 616 | 556 | 13,34 | 4,58 | 4,58 | 1,241 | 700 |
| 1709 65 rails 3 espaces | 30,0 | 1709 | 466 | 406 | 12,76 | 4,71 | 789,1 | 1,263 | 700 |
| 1709 65 rails 3 espaces | 30,0 | 1709 | 516 | 456 | 13,80 | 4,95 | 871,2 | 1,263 | 700 |
| 1709 65 rails 3 espaces | 30,0 | 1709 | 616 | 556 | 15,88 | 5,42 | 1.034,5 | 1,263 | 1000 |
