Irsap Novo Cult Chrome-plated Radiator
NOVO CULT CHROME-PLATED RADIATOR
NOVO CULT CHROME-PLATED RADIATOR

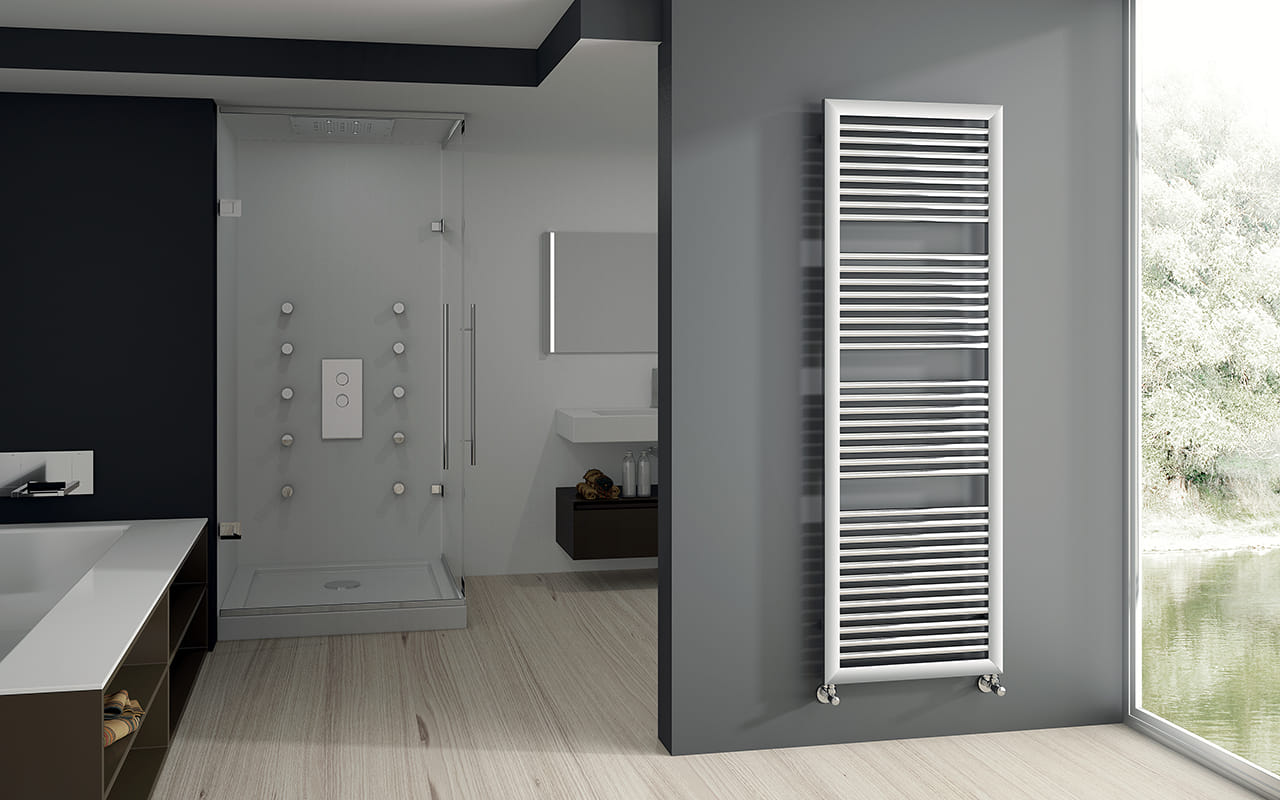

Novo cult in the chrome plated version stresses the rigorous attention to details, particulars that make the difference in modern living space.Available in 4 heights and 3 widths.Thanks to the electric heater (optional) it can work even when the heating system is turned off.
information
STANDARD EQUIPMENT
- 4 chrome-plated wall fixing
- 4 chrome-plated wall fixing
CERTIFICATIONS
MANIFOLDS THREADING
Manifold threading and central connections (50 mm) 1/2” gas right
DIAMETER
Steel towel warmer radiator with horizontal elements featuring round tubes 25 mm diameter
FEATURES
- Low temperature
- Hydraulic radiator available
CONNECTIONS
USE
Heating
GUARANTEE
10 Year Guarantee
PRODUCTION
Made in Italy
PRODUCT TYPE
Radiator
MODELS
- H. 807 15 rails 1 espace
- H. 1207 23 rails 2 espace
- H. 1567 30 rails 3 espace
- H. 1807 36 rails 3 espace
DECORATIVE & TECHNICAL ACCESSORIES
COLLECTION
Novo
MATERIAL
Steel
TEMPERATURE
Maximum working temperature 95°c
PRESSURE
Maximum working pressure 4 bar
CALCULATE THE POWER
How to choose the Oasi radiator for your home? How to know what is the right power to heat each room? Online thermal requirement allows you to identify the most suitable radiator for your living space
COLOR
Chrome-plated
BRAND
Irsap
HEIGHT
807 mm
WIDTH
450 mm
TECHNICAL DRAWING
TECHNICAL DATA
| MODEL 01/05 | DEPTH (MM) | HEIGHT (MM) | WIDTH (MM) | CONN. CENTRE (MM) | WEIGHT (KG) | CAPACITY (LT) | ΔT=50°C (BTU/H) | EXPONENT | MIXED FUNCTION (WATTS) |
|---|---|---|---|---|---|---|---|---|---|
| 807 15 rails 1 espace | 36.5 | 807 | 450 | 406 | 7.79 | 5,61 | 273,7 | 1,226 | 300 |
| 807 15 rails 1 espace | 36.5 | 807 | 500 | 456 | 8.40 | 6,08 | 301,0 | 1,229 | 300 |
| 807 15 rails 1 espace | 36.5 | 807 | 600 | 556 | 9.64 | 7,00 | 354,9 | 1,236 | 400 |
| 1207 23 rails 2 espaces | 36.5 | 1207 | 450 | 406 | 11.01 | 7.97 | 389.9 | 1.262 | 400 |
| 1207 23 rails 2 espaces | 36.5 | 1207 | 500 | 456 | 11.84 | 8.60 | 427.0 | 1.260 | 400 |
| 1207 23 rails 2 espaces | 36.5 | 1207 | 600 | 556 | 13.50 | 9.87 | 502.6 | 1.258 | 400 |
| 1567 30 rails 3 espaces | 36.5 | 1567 | 450 | 406 | 13.87 | 10.06 | 506.1 | 1.265 | 400 |
| 1567 30 rails 3 espaces | 36.5 | 1567 | 500 | 456 | 14.89 | 10.84 | 555.8 | 1.264 | 400 |
| 1567 30 rails 3 espaces | 36.5 | 1567 | 600 | 556 | 16.92 | 12.40 | 655.2 | 1.263 | 700 |
| 1807 36 rails 3 espaces | 36.5 | 1807 | 450 | 406 | 16.02 | 11.65 | 589.4 | 1.258 | 400 |
| 1807 36 rails 3 espaces | 36.5 | 1807 | 500 | 456 | 17.20 | 12.56 | 649.6 | 1.255 | 700 |
| 1807 36 rails 3 espaces | 36.5 | 1807 | 600 | 556 | 19..56 | 14.37 | 769.3 | 1.250 | 700 |
