FLAUTO CHROME-PLATED RADIATORS
FLAUTO CHROME-PLATED RADIATORS
Thanks to the sobriety of the design and its performance, Flauto Chrome-plated is ideal for any environment or living space.
It is available in 4 heights and 5 widths from 456 to 756 mm.
With the insertion of the electric resistance (optional) it can work even in periods when the system is off.
information
PRODUCT TYPE
Chrome-plated Radiators
PRODUCTION
Made in Italy
BRAND
Irsap
HEIGHT
810 mm
WIDTH
456 mm
RADIATOR COLOUR
Chrome-plated
AVAILABLE RADIATOR
Electric Radiator Available
TEMPERATURE
Low
RADIATOR
Hydrualic
CONNECTIONS
- Connection left right with angle valves
- 50 mm Connection with angle valves
MAXIMUM PRESSURE
Maximum working pressure 8 bar
HYDRUALIC CONNECTIONS AND VALUES
None
CERTIFICATIONS
STEEL TOWER
Steel tower warmer radiator
RESISTANCE
Electric Resistance
GAS RIGHT
Manifold threading 1/2” gas right
MAXIMUM TEMPERATURE
Maximum working temperature 95°c
TECHNICAL DRAWING
ROUND SECTION
Side manifolds with 30 mm round section
ROUND TUBES
Horizontal elements featuring round tubes 18 mm diameter
![Irsap Flauto Chrome-plated Radiators](http://{"type":"application/jidipi-edit","data":"<figure class=\\"jdp-reset jdp-image-figure\\" data-ce-tag=\\"image-figure\\"><div class=\\"jdp-mask\\" data-ce-tag=\\"mask\\"><img src=\\"https://upload.jidipi.com/posts/d00089631/1-QQN.jpg\\" data-image-id=\\"64c215f065695b4ea011ad99\\" srcSet=\\"https://upload.jidipi.com/fit-in/420x0/posts/d00089631/1-QQN.jpg 420w, https://upload.jidipi.com/fit-in/700x0/posts/d00089631/1-QQN.jpg 700w, https://upload.jidipi.com/fit-in/900x0/posts/d00089631/1-QQN.jpg 900w\\" data-image-name=\\"1.jpg\\" width=\\"1333\\" height=\\"1333\\" loading=\\"lazy\\" class=\\"jdp-image jdp-reset\\"/></div></figure>"})
CALCULATE THE POWER
How to choose the Oasi radiator for your home? How to know what is the right power to heat each room? Online thermal requirement allows you to identify the most suitable radiator for your living space
STANDARD EQUIPMENT
- Pair of chela wall brackets
- Wall spacer
- 1/2" chrome-plated air vent
TECHNICAL DATA
| MODEL | DEPTH (MM) | HEIGHT (MM) | WIDTH (MM) | CONN. CENTRE (MM) | WEIGHT (KG) | CAPACITY (LT) | ΔT=50°C (BTU/H) | EXPONENT | MIXED FUNCTION (WATTS) |
|---|---|---|---|---|---|---|---|---|---|
| 810 20 rails 2 espaces | 46.0 | 810 | 456 | 406 | 5.61 | 2.75 | 271.4 | 1.180 | 300 |
| 810 20 rails 2 espaces | 46.0 | 810 | 506 | 456 | 6.07 | 2.95 | 299.8 | 1.178 | 300 |
| 810 20 rails 2 espaces | 46.0 | 810 | 556 | 506 | 6.53 | 3.14 | 328.1 | 1.177 | 300 |
| 810 20 rails 2 espaces | 46.0 | 810 | 606 | 556 | 6.98 | 3.34 | 356.5 | 1.176 | 300 |
| 810 20 rails 2 espaces | 46.0 | 810 | 756 | 706 | 8.36 | 3.93 | 441.5 | 1.172 | 400 |
| 1218 30 rails 3 espaces | 46.0 | 1218 | 456 | 406 | 8.39 | 4.13 | 398.4 | 1.220 | 400 |
| 1218 30 rails 3 espaces | 46.0 | 1218 | 506 | 456 | 9.08 | 4.43 | 433.8 | 1.218 | 400 |
| 1218 30 rails 3 espaces | 46.0 | 1218 | 556 | 506 | 9.77 | 4.72 | 469.1 | 1.217 | 400 |
| 1218 30 rails 3 espaces | 46.0 | 1218 | 606 | 556 | 10.46 | 5.01 | 504.5 | 1.215 | 400 |
| 1218 30 rails 3 espaces | 46.0 | 1218 | 756 | 706 | 12.52 | 5.90 | 610.5 | 1.209 | 400 |
| 1558 38 rails 4 espaces | 46.0 | 1558 | 456 | 406 | 10.64 | 5.25 | 516.2 | 1.243 | 400 |
| 1558 38 rails 4 espaces | 46.0 | 1558 | 506 | 456 | 11.51 | 5.63 | 564.7 | 1.232 | 400 |
| 1558 38 rails 4 espaces | 46.0 | 1558 | 556 | 506 | 12.38 | 6.00 | 613.2 | 1.222 | 400 |
| 1558 38 rails 4 espaces | 46.0 | 1558 | 606 | 556 | 13.25 | 6.37 | 661.8 | 1.212 | 700 |
| 1558 38 rails 4 espaces | 46.0 | 1558 | 756 | 706 | 15.87 | 7.49 | 807.3 | 1.180 | 700 |

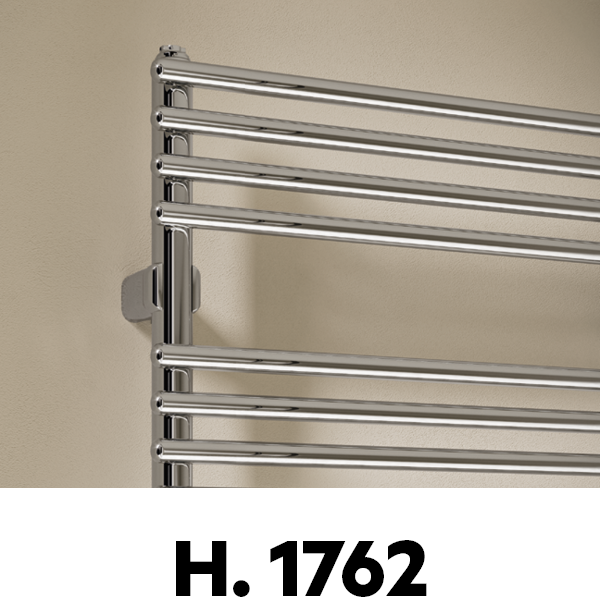

| 1762 44 rails 4 espaces | 46.0 | 1762 | 456 | 406 | 12.24 | 6.03 | 580.1 | 1.243 | 400 |
| 1762 44 rails 4 espaces | 46.0 | 1762 | 506 | 456 | 13.25 | 6.47 | 633.7 | 1.237 | 700 |
| 1762 44 rails 4 espaces | 46.0 | 1762 | 556 | 506 | 14.26 | 6.90 | 687.3 | 1.230 | 700 |
| 1762 44 rails 4 espaces | 46.0 | 1762 | 606 | 556 | 15.27 | 7.33 | 740.9 | 1.223 | 700 |
| 1762 44 rails 4 espaces | 46.0 | 1762 | 756 | 706 | 18.29 | 8.62 | 901.7 | 1.203 | 1000 |
model
