Dibigroup Argo Security Door System
ARGO SECURITY DOOR SYSTEM
ARGO SECURITY DOOR SYSTEM
The most competitive security door
Argo is the most competitive security door anti-intrusion class 3, in terms of quality/price ratio.
Projected to answer to a market who looks for a fine product with a competitive price, it is available only as for internal installation in one standard dimension, with silver colour handle kit.
INFORMATION
PRODUCT TYPE
Security Door
BAND
Dibigroup
THERMAL INSULATION
2.02 - 2.36 W/m²K
ACOUSTIC INSULATION
30-31 dB
INSTALLATION
Security doors for internal installation
EUROPEAN CYLINDER LOCKING SYSTEM 1+3
European cylinder locking system with 1 red master key + 3 keys with card duplication. The lock is equipped with a hardened steel drill-proof plate. Outside, drill-proof defender.
ANTI-INTRUSION
Class 3
AIR PERMEABILITY
Class 3
THERMAL TRANSMITTANCE
- 2.36 W/m²K with external panel 4mm thick
- 2.02 W/m²K with external panel 10mm thick
DIMENSIONS
Standard : - W 80 x H 210 cm -W 85 x H 210 cm -W 90 x H 210 cm
ACOUSTIC INSULATION
- 30 dB with external panel 4mm thick
- 31 dB with external panel 10mm thick
INSTALLATION SOLUTIONS
Steel Frame For Argo
RESISTANCE TO WIND LOAD
Class 5
INNER
Inner Reinforcement Spar
HANDLE
Handle set in aluminium silver colour (inside handle + outside fixed knob)
MATERIAL
- Galvanized Steel
- Complete with plastic covers, gasket and footers
TECHNICAL FEATURES
- Subframe made with 20/10 thick galvanized steel with 12 anchors to wall
- Adjustable hinges on 3 axes with brown hinge covers
- Inner reinforcement spar
- Wide-angle peephole
- Lateral deadbolt
- Upper deadbolt bar
- Weatherstrip bar
- 5 fixed deadbolts on the hinge side
- Doorleaf made of one galvanized steel sheet 16/10 thick. Gasket in the perimeter of the leaf
DOWNLOADS
↓ Technical Drawings
↓ Catalogue
↓ Guarantee for Di.Bi. products
↓ Form Installation Check
↓ Certification ARGO - Anti-intrusion
↓ Certification YOUNG 1 - Acoustic insulation
↓ Certification YOUNG 1 - Resistance to wind load
↓ Certification YOUNG 1 - Thermal transmittance
↓ Checklist for taking dimensions of security doors
↓ Instruction manual for the installation of the Argo security door handle kit
SECURITY LOCKING
Security locking system with core with European cylinder with master key + 5 keys with card equipped with a hardened steel drill-proof plate. Drill-proof defender

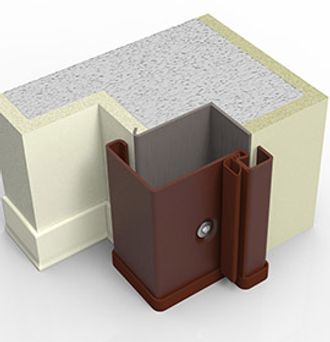

FRAME
Frame made with 20/10 thick galvanized steel, painted brown Ral 8017 and complete with gasket and footers
HANDLES
- Handle Kit Poker
- Poker Knob
